Summary of Contents for Supersonic SC-2426SDVD

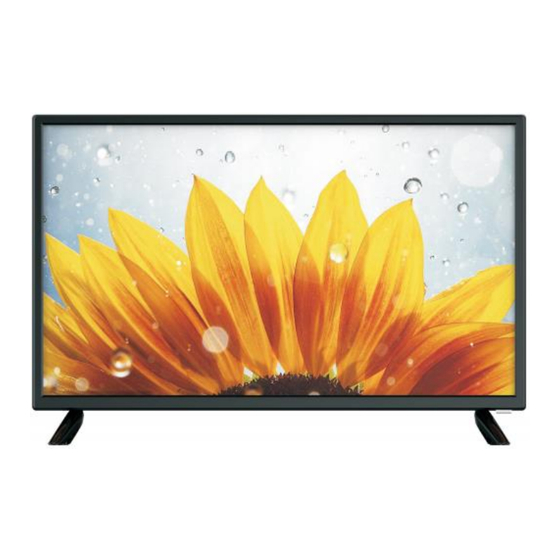

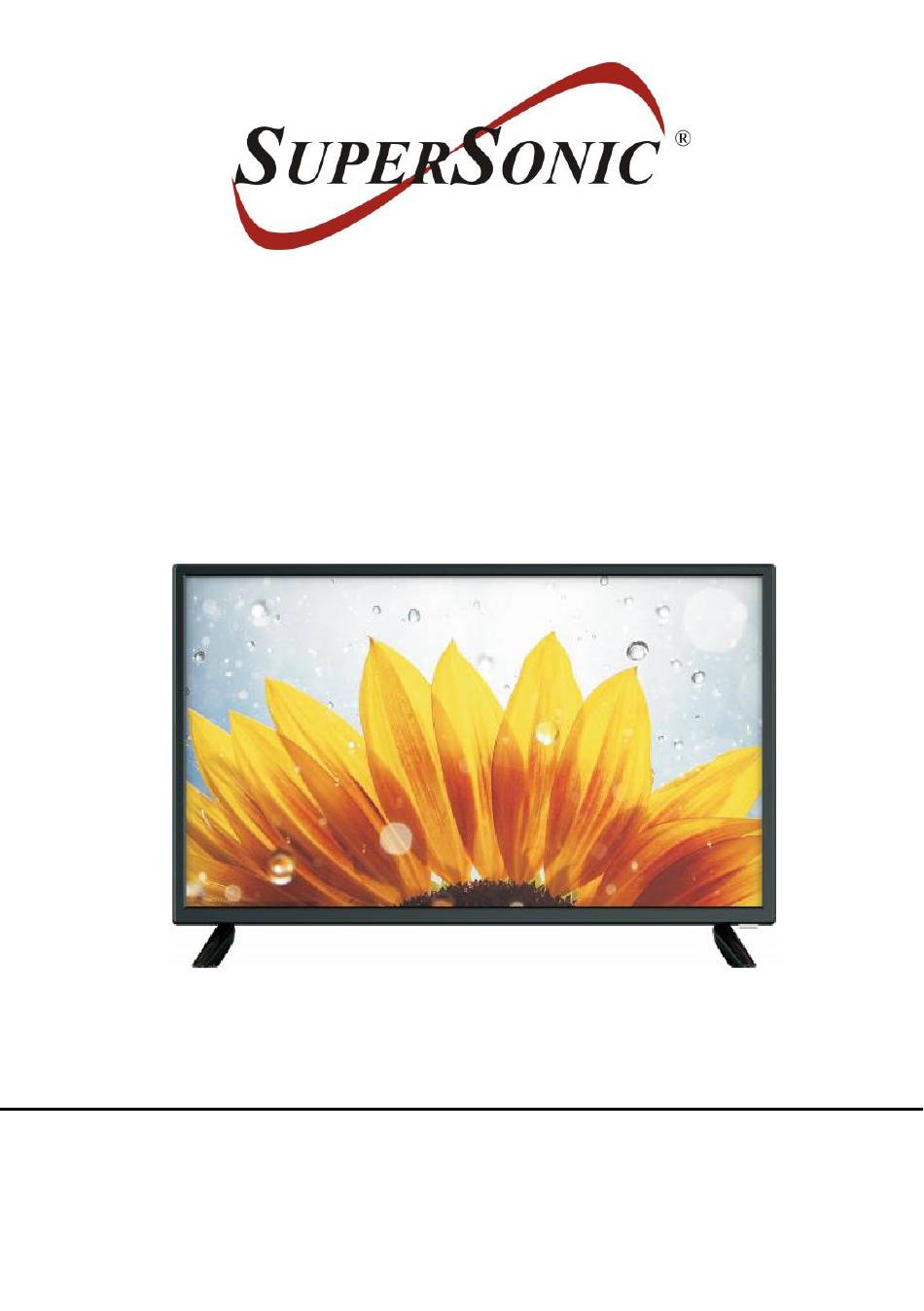

- Page 1 23.6” LED TV COMPATIBLE WITH DVD PLAYER MODEL NO.: SC-2426SDVD USER MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS Safety information CAUTION: DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS PLAYER. - Page 3 Read all instructions before using ⚫ Do not use this product near water. ⚫ Install the product in accordance with the operating instructions. ⚫ Do not set the product near heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. ⚫...
-
Page 4: Accessories
DISC Handling and Maintenance Handling precautions ⚫ Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion. ⚫ Do not write on the label side with a ball-point pen or other writing utensils. Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids. -
Page 5: Table Of Contents
TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-3 ACCESSORIES........................3 FEATURES..........................5 GENERAL PARTS......................6-7 REMOTE CONTROL......................8-9 REMOTE CONTROL PREPARATION.................10 BASIC CONNECTION....................11-13 OPERATIONS BASIC OPERATIONS....................14-19 DVD....................1 4-18 TV..........................19 LIVE TV......................20-22 CONNECTION.......................23-25 MULTI-SCREEN......................26-27 SMART FUNCTIONS.....................28-30 PICTURE AND SOUND...................31-35 CHANNEL........................36 ACCESSIBILITY......................37 SYSTEM AND SUPPORT....................38-40 FOR REFERENCE MAINTENANCE................. -
Page 6: Features
FEATURES 23.6" LED DISPLAY This player has a built-in LED display window to provide clear vision and low radiation. With Built-in DVD Player Support Auto Program Scanning Function Support Digital Broadcasting Reception Compatible with USB for Music, Photo and Video Playback (TV Mode) Support Multi-languages On Screen Display Support Full Function Remote Control Compatible with LAN, HDMI Input... -
Page 7: General Parts
GENERAL PARTS MAIN UNIT Front View Back View 1. LED display screen 2. Remote control sensor / Power indicator- In standby mode the indicator light will display red color; when switching on the unit the indicator light will display blue color. 3. - Page 8 GENERAL PARTS Back View 1. Power input (AC cord) 2. Power input (DC) 3. LAN input terminal 4. OPTICAL output terminal 5. RF input terminal- To connect the external antenna. EARPHONE output terminal 7. USB 1/2 input terminal (TV) 8. HDMI1/2/3 input terminal...
-
Page 9: Remote Control
REMOTE CONTROL 1 STANDBY(POWER) Set the unit in standby mode; press it again to switch it on. 2 INPUT / Press to select desired input source. / Press to open or close the disc compartment in DVD mode. 3 Number buttons (0-9) Input the number information, such as channel number and so on. - Page 10 REMOTE CONTROL 15 HOME Enter home page. 16 VOL +/- Increase/decrease the volume level. 17 CH +/- Play the next/previous program. 18 MUTE Mute the sound. 19 LIVETV TV source. 20 SLEEP Set desired sleep time. 21 CC CC in LIVE TV. 22 FREE Press to enter the free video directly.
-
Page 11: Remote Control Preparation
REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used. -
Page 12: Basic Connection
BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE To power outlet CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture. - Page 13 HDMI CONNECTION Use HDMI cable to connect the unit with HDMI cable (Not included) other devices to receive high-definition multimedia signal. Back of DVD/VCR EARPHONE CONNECTION Earphone cable (Not included)
- Page 14 USB CONNECTION USB Memory Device (Not included) OPTICAL CONNECTION Use OPTICAL cable (not included) to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. RJ-45 (Local Area Network) Connection Use a LAN cable (not included) to connect this TV with available network.
-
Page 15: Basic Operations
MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATING. BASIC OPERATIONS - Press STANDBY button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). - Page 16 4. Fast forward/Fast backward During playback, press button or button to fast forward/backward. Press button to resume normal play. 5. Pause/play During playback, press button to pause playing, press it again to resume normal playback. 6. Music playback a) Insert the disc which contains music files and after a few seconds, the screen will show all the folders on the disc.
- Page 17 8. JPEG playback For JPEG picture CD, select the folder you want to play by the navigation buttons and press OK button to confirm. The files in this folder are displayed and select your pictures by using the up/down navigation buttons and press OK button to confirm.
- Page 18 Common procedure for initial settings ● Press SETUP button on remote control. ● Use the navigation buttons to select preferred item, and press OK button, each screen for setting the value is displayed. Then move the navigation buttons to set the item and press OK button to confirm the settings.
- Page 19 2. AUDIO SPEAKER SETUP- It is used to select desired audio output mode. Options: a) STEREO b) MONO L/R c) MIX MONO 3. PREFERENCE 3.1 TV SYSTEM - Select desired TV system. 3.2 DEFAULT - It is used to reset to factory settings.
- Page 20 - Press STANDBY button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). SELECT DESIRED PROGRAM 1. Press CH+ button to play next channel. 2.
-
Page 21: Live Tv
LIVE TV Channel Scan Auto Channel Scan > Settings > Channel > Auto Channel Scan Note: Before you select Automatic Scan, you can press > Settings >Channel > Tuner Mode, press OK button into the sub-menu, select Antenna or Cable. Channel List Display the channel list In Live TV, press... - Page 22 Favorite Adding channels to your 'Favorites' list Press button to call out the channel list, the channel list appears on the right side of the screen. Press button and Navigation button to select your favorite channel; Press button to confirm. Press and Choose Add to Favorite;...
- Page 23 Deleting channels from your 'Favorite' list Press to call out the channel list, the channel list appears on the right side of the screen. Press Navigation buttons to select heart-shaped icon and press OK button to confirm; Press button and Navigation buttons to select your desired channel; Press button to confirm.
-
Page 24: Connection
CONNECTION Wired LAN Connecting to the Internet > Settings > Network > Network Configuration You set the TV network by selecting Configuration and press the button to enter the sub-menu. Automatically obtain an IP address 1. If you connect to the wired network, the TV will automatically obtain an IP address and connect to the network. - Page 25 Note: You get access to the Internet through your TV. Connect to an available wireless network. Make sure that you have the wireless router's SSID and password before attempting to connect. Connecting to a Wireless Network > Settings > Network > Network Configuration You set the TV network by selecting Configuration and press the button to enter the submenu.
- Page 26 the TV. After connection is finished, you can access the menu of the connected device on your TV screen using your TV remote and control the device. Note: HDMI cables must be used to connect HDMI CEC-compatible devices to your TV. The HDMI CEC feature of the connected device must be turned on.
-
Page 27: Multi-Screen
Multi-screen Screen Sharing Mirror content from your device to the TV. INPUT > Screen Sharing Turn on the casting function of your Android/Windows10 device. Find the TV name in the searching list of your device and select it. Wait for the connection progress to complete and the content on your device will be displayed on the TV. -
Page 28: Smart Functions
Note: Make sure our device and the TV are connected to the same network. Some devices may not support content sharing. If your device doesn't support content sharing, you can download an app that supports the function. If you want to mirror content from your device, go to INPUT >Screen Sharing. Smart Functions... - Page 29 Media Playing Media contents > My Apps > Media By default, there are Content Sharing displayed on the Media screen. If your mobile device is connected to the TV, its name also appears on the Media screen. Note: For more information about Content Sharing, refer to its detailed introduction.
- Page 30 ⚫ Choose a picture to playback. ⚫ Press button to call out playbar. ⚫ Select Background Music and choose your music to create a Music Playlist. ⚫ Play the background music during viewing pictures. Note: The TV may be support the following file formats: Medium File Format Video .MP4, .MOV, .MPG, .MPEG, .FLV...
-
Page 31: Picture And Sound
You can always view the current time at the top of the Home screen. If your TV is connected to the Internet through a wireless connection, then the icon will be at the top right corner of the screen. Manage apps Select the item you want to move, press button to manage. - Page 32 Adjust current picture mode to apply to all sources or just current source. The menu is only for reference. The following modes may differ from the actual product. Choosing a picture mode > Settings > Picture > Picture Mode You can select the Picture Mode that provides the best viewing experience. Vivid Standard Energy Saving...
- Page 33 Wide Direct Dot-By-Dot Panoramic Cinema Configuring advanced picture settings > Settings > Picture > Picture Mode Settings Adjust display setting for each Picture Mode. Apply Picture Settings: Adjust current picture mode to apply to all sources or just current source. Backlight: Adjust image backlight.
- Page 34 Color : Adjust image color density. Tint: Adjust the image tint to view the natural skin tons of people on the screen. Sharpness: Adjust the image edge sharpness. Overscan: Turn on if you are receiving analog antenna or cable input. Color Temperature: Adjust the overall color of the image.
- Page 35 The menu is only for reference. The following modes may differ from the actual product. Choosing a sound mode > Settings > Sound > Sound Mode You can select a favorite sound mode suitable for the content type or the listening environment.
-
Page 36: Channel
> Settings > Sound > Sound Mode Settings Customize selected Sound Mode. > Settings > Sound > Headphone Set the sound out mode for headphones. > Settings > Sound > Advanced Audio Tune the audio settings to improve sound quality. >... -
Page 37: Accessibility
Press > Settings > Channel Press Navigation buttons to select the option that you want to adjust in the Channel menu. Press OK button to adjust. Tuner Mode Select if you receive TV channel over the air(antenna) or trough a cable set top box. Automatic Channel Scan Automatic search can search for effective program channel automatically. -
Page 38: System And Support
Press Navigation button to select Accessibility > Settings > Accessibility Closed Captioning: Set closed captions display mode. Narration: Enables broadcasted descriptive audio for visually impaired. Narration Volume: Independently adjust the volume of voiceover. Voice Guide: Reads the menu items for visually impaired. High Contrast Menu: Turn High Contrast Menu on or off. - Page 39 > Settings > System > Parental Control Turn on Parental Control to block children from being able to view certain programs. > Settings > System > Language and Location Select the language used for this TV and your location. > Settings > System > Time Settings Time Zone Select your time zone;...
- Page 40 Adjust the timer settings to suit your preference. Sleep Timer Set the sleep timer to automatically turn the TV Off within a specified time: Off, 10 / 20/ 30/ 40/ 50/ 60/ 90/ 120 Minutes. Power On Timer Set the clock for the time you want the TV to turn on automatically. You can set the time only once or set the time in specified date weekly.
-
Page 41: Maintenance
System Info View System information. Self Diagnosis Perform self diagnosis to test sound, picture and connections. E-Manual Launch E-Manual and get to know more about your TV. Bandwidth Monitoring Test the speed with a third-party website. Mobile App Installation Install Remote NOW app on your smart phone to control your TV.. Terms and Conditions, Privacy Policy Click to read our terms and policy. -
Page 42: Wall Mounting
the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth. -
Page 43: Specifications
Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged. Step 2 Align the stand and the bottom of this TV. -
Page 44: Troubleshooting
Display Device 23.6 inch LED TV Resolution 1366×768 16.7M Display Colors Contrast Ratio 3000:1 Aspect Ratio 16:9 30,000 Hrs Life Time Supported Discs DVD/CD/CD-RW/CD-R/VCD Compatible Music Multimedia Playback Photo Video POWER SOURCE AC 100-240V, 50/60Hz + DC 12V POWER Max.42W CONSUMPTION OPERATION -5℃... - Page 45 Check the following points before assuming malfunctions of this unit: Symptom[COMMON] Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
- Page 46 to region 1 coding by the factory which cannot be changed. This is in compliance with the DVD patent requirements. The region number for this DVD player is...
- Page 49 Warranty Basic Warranty Statement Supersonic Inc.("Supersonic") warrants this product to the original purchaser ONLY, to be free from defects in materials and workmanship under normal use, for ninety (90) DAYS from the date of original purchase. Proof of purchase (receipt) required.
