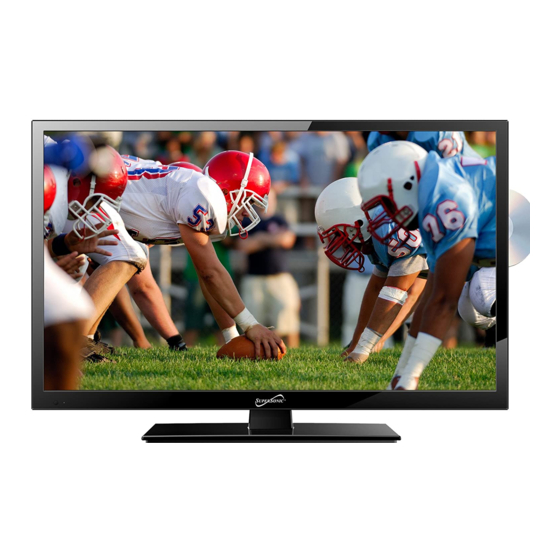

- Page 1 24 LED COLOR TV SC-2411...
-
Page 2: Table Of Contents
Table Of Contents Preparations Guide Safety Information.........................2 Important Safety Precautions....................3 Installed And Connected TV TV Bracket assemble......................4 TV Buttons And Terminal Interface..................5 External device connection diagram..............6 Remote Controller ......................7 Install And Connect TV......................8 TV Stand installation Instructions...............8 Setup Wizard Setup Wizard .......................9 Select Input Source Select Input Source........................ -
Page 3: Safety Information
Safety Information High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover of the cabinet, refer servicing to qualified service personal If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul. -
Page 4: Important Safety Precautions
Important Safety Precautions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Tv Bracket Assemble
TV Bracket assemble Fix the TV on the wall 1.First,put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen. 2.User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1).And take off the bottom stand(please take off the screws and bottom stand carefully). -
Page 6: Tv Buttons And Terminal Interface
TV Buttons And Terminal Interface INPUT VIDEO COAXIAL INP UT AC 100-240V~ 50/60Hz HDMI (3.5mm) Ω YPbPr:Color difference ANT 75 : Connect the antenna to components input and relevant the antenna input. video input HDMI Input: Digital signal input from . -
Page 7: External Device Connection Diagram
External device connection diagram Set-top boxes HDMI HDMI HDMI input connection INPUT INPUT INPUT VIDEO VIDEO AV input connection Y Pb Pr input connection USB connection AV input connection TV connection OUTPUT VGA input connection AV output connection... -
Page 8: Remote Controller
Remote Controller YPBPR HDMI (1)Open the battery compartment cover on the back side (2)Insert two 1.5V batteries of AAA type with correct polarity (3)Close the battery compartment cover on the back side Universal Remote Control code:007F (Universal Remote control is not included) -
Page 9: Install And Connect Tv
Install And Connect TV Set your TV To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don’t expose the TV near water or heating place (such as light, candle, heating machine),do not block the ventilation at the back of TV. -
Page 10: Setup Wizard
Setup Wizard Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket. Select Language Press </ > button to select the language to be used for menus and message. Press ▼ / ▲ button to select go to next step and press ENTER/ button to go. Select Time Press ▼... - Page 11 Setup Wizard Auto Scan Press </ > button to select the antenna type. Press ▼ / ▲ button to select go to next step and press ENTER/> button to start auto scan.
-
Page 12: Select Input Source
Select Input Source Source Select Press INPUT button to display the input source list, Press ▼ / ▲ or Component INPUT button to select the input HDMI source you want to, Press ENTER button to enter the input source, Press EXIT button to quit. Main Menu Press MENU to display the main menu or return to the previous menu or close the main menu. -
Page 13: Main Menu Operation
Main Menu Operation Picture Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Picture Mode /Brightness/ Contra st / Color / Tint / Sharpness / Color Temperature/ Advanced Settings. - Page 14 【Color】 Adjust the saturation of the color based on your own like. Press </ > button to adjust. 【Tint】 Adjust the hue(Red,Green,Blue) of the picture. Press </ > button to adjust. 【Sharpness】 Adjust the peaking in the detail of the picture. Press </ >...
-
Page 15: Sound Menu
【Dynamic Contra st】 Automatically adjust picture detail and brightness. Press </ > button to select (Off/O n). 【HDMI Mode】 Only available in HDMI input. Press </ > button to select (Video/Graphic). Sound Menu Press ENU to enter the main menu, Press </ >... -
Page 16: Audio Language
【Sound Mode】 Select a sound mode to achieve ideal sound. Press </ > button to select(S tandard / Music / Movie / Sports / User). Note:The bass and tre ble are only available in User mode,you can adjust as you like. Standard Produces a balanced sound in all environments. -
Page 17: Time Menu
Time Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Sleep Timer / Time Zone / Daylight Saving Time / Time Format / Auto Clock / Clock. -
Page 18: Setup Menu
Setup Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Menu Language / Transparent / OSD Timeout / Closed Caption /Over Scan/ Input Label / Other settings / Restore Default / Setup Wizard. -
Page 19: Close Caption
Close Caption 【 】 CC Mode Turn Closed Captioning on/off. Press </ > button to select(C C Off / CC On / CC OnMute). 【 】 Analog CC Set Closed Captioning for standard(analog) program. Press </ > button to select(C C1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4). 【... -
Page 20: Blue Screen
【Over Scan】 button to select(O n / Off) . Press </ > It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI.Default is On. It fixed set to be On in ATV/AV. It fixed set to be Off in PC/USB. 【Input Labels】 Create labels for the devices connected to your TV. - Page 21 【Restore Default】 Change power on options or reset TV to factory default. Press ENTER / > button to enter. 【Setup Wizard】 Set the first time installation. Press ENTER / button to enter. > For detail please refer to page 1~2.
-
Page 22: Lock Caption
Lock Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Change Password / System Lock / Input Block / US Rating / Canada Rating /RRT Setting / Reset RRT/Hotel menu ENTER / ▼... -
Page 23: Input Block
【Change Password】 Enter a new 4-digital password then re-enter it to confirm. Press > button to enter. 【System Lock】 Lock or unlock the buttons on the TV. Press </ > button to select(O ff / On). 【Input Block】 Block or unblock the input sources. Press >... -
Page 24: Us Rating
US Rating For the United States, the rating setting basically include the following options: TV, MPAA. The TV rating compose of two aspects: age-based and content-based. Define TV-Y General audience Parental guidance suggested TV-Y7 TV-G Parents strongly cautioned TV-PG Retricted No one 17 and under admitted TV-14 Adult audience only... -
Page 25: Mapp
MPAA This system defines the rating control which come from MPAA rules. Rating Define General audience. All ages admitted. Parental guidance suggested. Some material may not be suitable for children. PG-13 Parents strongly cautioned. Some material may be inappropriate for children under 13. -
Page 26: Hotel Menu
Hotel Menu 【Hotel Mode】 Set hotel mode On or Off. Note: The following settings work only when Hotel Mode is set to be On. 【 Boot Setting 】 【Picture Mode】 Adjust picture mode to change picture appearance. Press </ > button to select(Standard / Dynamic / Soft / User). - Page 27 【Boot Channel】 Set boot channel On or Off. Note:Channel Select is available when Boot Channel is set to be On. 【Channel Select】 Set boot default on what channels.After channel searching,channels in the list can be selected. 【Hotel Lock】 To lock the Tuner/Key Pad/Menu Lock that you want. Channel searching is invalid when Tuner Lock is set to be On 【Power Save】...
-
Page 28: Channel Menu
Channel Menu Press ENU to enter the main menu, Press </ > button to select. ENTER / ▼ Press to enter. Press ENU again to exit or back to parent menu. ▼ / ▲ Press button to select among Air/C able / Auto Scan / Favorite / channe list / Show/Hide / Channel Number / Channel Label . - Page 29 【 】 Favorite s Add channels to create a favorite list. Press > button to enter. 【 】 Channel List Display your program list. Press > button to enter. 【 】 Show/Hide Show or hide the channels in your program list. Press >...
-
Page 30: Pc Menu
PC Menu Press INPUT to select PC source. Press ENU to enter the main menu, Press </ > button to select Setup menu. ▼ Press to select PC Settings. ▼ / ▲ Press button to select among H-Pos / V-Pos / Clock / Phase / Auto. ENTER / ▼... - Page 31 【H-Pos】 Adjust the horizontal position of the picture. Press </ > button to adjust. 【V-Pos】 Adjust the vertical position of the picture. Press </ > button to adjust. 【Clock】 Adjust the vertical position of the picture. Press </ > button to adjust. 【Phase】...
-
Page 32: Help
Help... -
Page 33: Specifications
Machine Technical Specifications Resolution 640x480 800X600 1024x768 1360x768 1920x1080 60HZ 60HZ 60HZ 60HZ 60HZ Vertical frequency hz HDMI 576 i/P 720 P 1080 i/P Format 480 i/P 50HZ/60HZ Vertical frequency hz 60HZ 50HZ 50HZ/60HZ Parameter specification Screen Size 24” NTSC / ATSC PAL, NTSC CH2~CH69 AIR / CH1~CH135 CABLE IN:TV, AV, YPbPr, PC AUDIO,VGA, HDMI.
