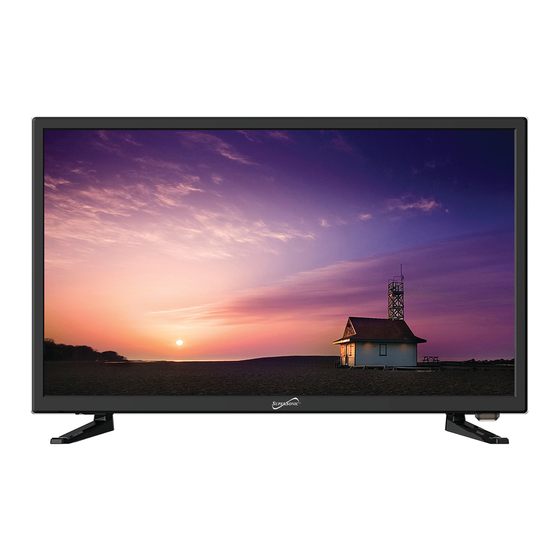

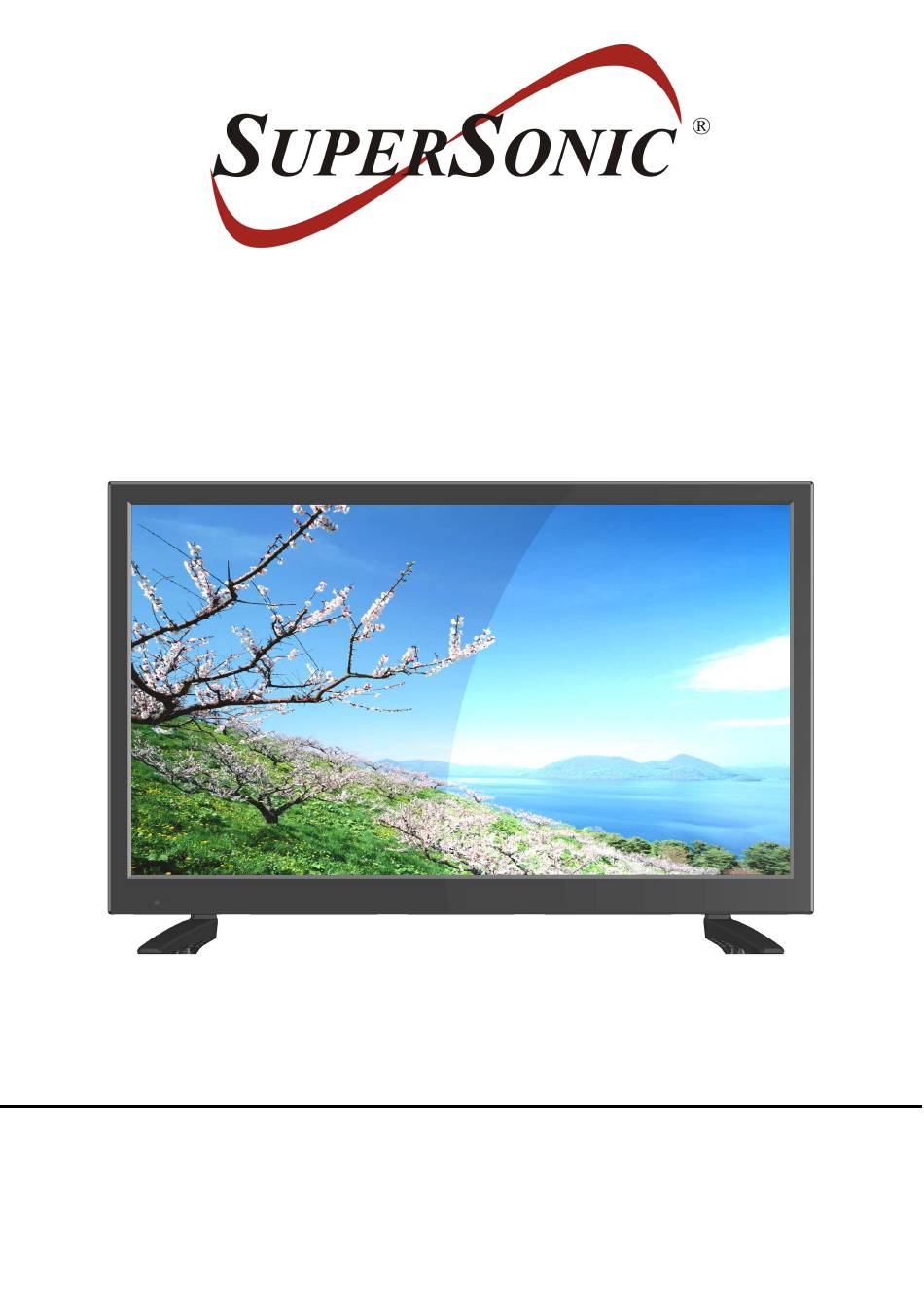

- Page 1 22” WIDESCREEN LED TV MODEL NO.: SC-2211 USER MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY: ● This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. ●... -
Page 3: Accessories
● Connect this product to the power outlet which has protective earth connection. CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR PRODUCT/PROPERTY DAMAGE: ● This product is intended solely for non-commercial, non-industrial, personal use as a television. Do not use this product for any other purpose. ●... -
Page 4: Table Of Contents
TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-2 ACCESSORIES……….......................2 FEATURES........................4 GENERAL PARTS......................5-6 REMOTE CONTROL.....................7-8 REMOTE CONTROL PREPARATION...................9 BASIC CONNECTION....................10-13 OPERATIONS BASIC OPERATIONS....................14-17 MAIN MENU........................18-25 TV MODE.........................18-24 AV AND OTHER MODES....................25 PC/VGA MODE…......................25 FOR REFERENCE WALL MOUNTING…………………………………………………………………………..26 STAND INSTALLATION…………………………………………………………………………..27 MAINTENANCE........................28 SPECIFICATIONS.......................28 TROUBLESHOOTING......................29... -
Page 5: Features
FEATURES 22" LED DISPLAY This player has a built-in 22” LED display to provide clear vision and low radiation. Support auto program scanning Support digital broadcasting reception Support Electronic Program Guide Compatible with USB for music and photo playback Support multi-languages on screen display Support full function remote control Compatible with HDMI, PC AUDIO, VGA, YPbPr, CVBS and AUDIO R/L input Compatible with EARPHONE and COAXIAL output... -
Page 6: General Parts
GENERAL PARTS MAIN UNIT Front View Top View 1. LED display screen 2. Remote control sensor 3. Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 4. Stand holder 5. - Page 7 GENERAL PARTS Back View 1. Power input terminal 2. USB input terminal- For MUSIC/PHOTO playback. 3. HDMI input terminal 4. VGA input terminal 5. PC AUDIO input terminal 6. YPbPr input terminals 7. RF input terminal- To connect the external antenna. 8.
-
Page 8: Remote Control
REMOTE CONTROL 1. POWER: Pres to enable standby mode; press again to turn on. 2. NUMBER BUTTONS (0-9): To input the number information, such as channel number and so on. 3. -/--: To select additional channels (digital) being broadcast by the same station. For example, to select channel “15-3”, press “1”... - Page 9 REMOTE CONTROL 16. MUTE: To mute the sound. : To return to previous channel. 18. YELLOW button 19. BLUE button 20. CH+/-: Press CH+ button to play next channel, or press CH- button to play previous channel. 21. INFO: To display current program information. 22.
-
Page 10: Remote Control Preparation
REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used. -
Page 11: Basic Connection
BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE Main unit To power outlet AC Adaptor CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture. - Page 12 COMPOSITE AV CONNECTION For basic connection, use the composite Audio L/R (white/red) and CVBS cable AV cable to connect the unit with other devices. (Optional) Back of DVD/VCR YPbPr CONNECTION YPbPr cable (Optional) AUDIO cable (Optional) Back of DVD/VCR...
- Page 13 HDMI CONNECTION Use HDMI cable to connect the unit with other devices to HDMI cable (Optional) receive high-definition multimedia signal. Back of DVD/VCR PC/VGA CONNECTION Audio cable VGA cable (Optional) (Optional) Back of DVR or PC Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.
- Page 14 CONNECTING TO USB MEMORY DEVICE USB Memory Device (Optional) COAXIAL OUT CONNECTION Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. EARPHONE CONNECTION Earphone cable (Optional)
-
Page 15: Basic Operations
MAKE SURE ALL THE EQUIPMENTS AND POWER ADAPTOR ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATING. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red). - Page 16 SOUND MODE - Press SOUND button on remote control repeatedly to select desired sound mode. Available options: User, Music, Movie, Standard. CLOSED CAPTION - Press CC button on remote control repeatedly to set the CLOSED CAPTION function On or Off. SLEEP TIMER SETTING - Press SLEEP button on remote control repeatedly to select desired sleep time.
- Page 17 FREEZE FUNCTION - During normal playing, press FREEZE button on remote control to hold the picture, and press it again to resume normal playing. USB OPERATION - Before following operations, insert a USB memory device first, which contains Photo and Music files.
- Page 18 During normal playing: - Press UP/DOWN navigation button to play previous/next photo. - Press LEFT/RIGHT navigation button to rotate a photo counterclockwise/clockwise. - Press EXIT button to return to file selecting page. Music Playback - Select Music item in the main menu. - Press UP/DOWN navigation button to select preferred folder/file and press ENTER button to enter a folder or play selected file.
-
Page 19: Main Menu
MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode. - Page 20 1. PICTURE 1.1 Picture Mode Available options: User, Standard, Dynamic, Mild. 1.2 Contrast The value of Contrast can be adjusted from 0-100. 1.3 Brightness The value of Brightness can be adjusted from 0-100. 1.4 Color The value of Color can be adjusted from 0-100. 1.5 Tint The value of Tint can be adjusted from -50 to 50.
- Page 21 2. AUDIO 2.1 Sound Mode Available options: User, Music, Movie, Standard. 2.2 Bass The value of Bass can be adjusted from 0-100. 2.3 Treble The value of Treble can be adjusted from 0-100. 2.4 Balance The value of Balance can be adjusted from -50 to 50. NOTE: If the value of Bass, Treble, or Balance has been changed, the sound mode will turn to User automatically.
- Page 22 3. TIME 3.1 Sleep Timer Available options: Off, 5 min, 10 min, 15 min, 30 min, 45 min, 60 min, 90 min, 120 min, 180 min, 240 min. 3.2 Time Zone Available options: Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic. 3.3 Daylight Saving Time Available options: On, Off.
- Page 23 4.1 Menu Language This item is used to select preferred OSD menu language. 4.2 Transparency This item is used to turn on/off Transparent OSD menu. 4.3 Zoom Mode This item is used to select preferred zoom mode of display screen. Available options: Normal, Wide, Zoom, Cinema.
- Page 24 FG Color Available options: Default, White, Red, Green, Blue, Yellow, Magenta, Cyan. BG Color Available options: Default, Black, Red, Green, Blue, Yellow, Magenta, Cyan. FG Opacity Available options: Default, Solid, Flashing, Translucent, Transparent. BG Opacity Available options: Default, Solid, Flashing, Translucent, Transparent. 4.7 DLC This item is used to turn on/off Dynamic Luminance Control.
- Page 25 5.22 Start to Scan - Press RIGHT or ENTER button to start auto scanning. - Press MENU or EXIT button to exit auto channel searching. 5.3 Favorite - Press RIGHT or ENTER button to enter it. - Press UP or DOWN navigation button to select preferred channel. - Press ENTER button to label the selected channel as a favorite one or not.
-
Page 26: Av And Other Modes
AV AND OTHER MODES - Press SOURCE button on the unit or remote control to select desired input source. - For PICTURE, AUDIO, TIME and SETUP menus, please refer to the menu operations of TV mode. PC/VGA MODE - Press SOURCE button on the unit or remote control to set the unit in VGA mode. - Press MENU button to display the main menu and select Setup item. -
Page 27: Wall Mounting
WALL MOUNTING WARNING: ● Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own. ● Do not wall mount the TV while TV is turned on or connected to power. It may cause personal injury due to electric shock. -
Page 28: Stand Installation
STAND INSTALLATION Your TV may be packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged. -
Page 29: Maintenance
MAINTENANCE ● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth. -
Page 30: Troubleshooting
GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
