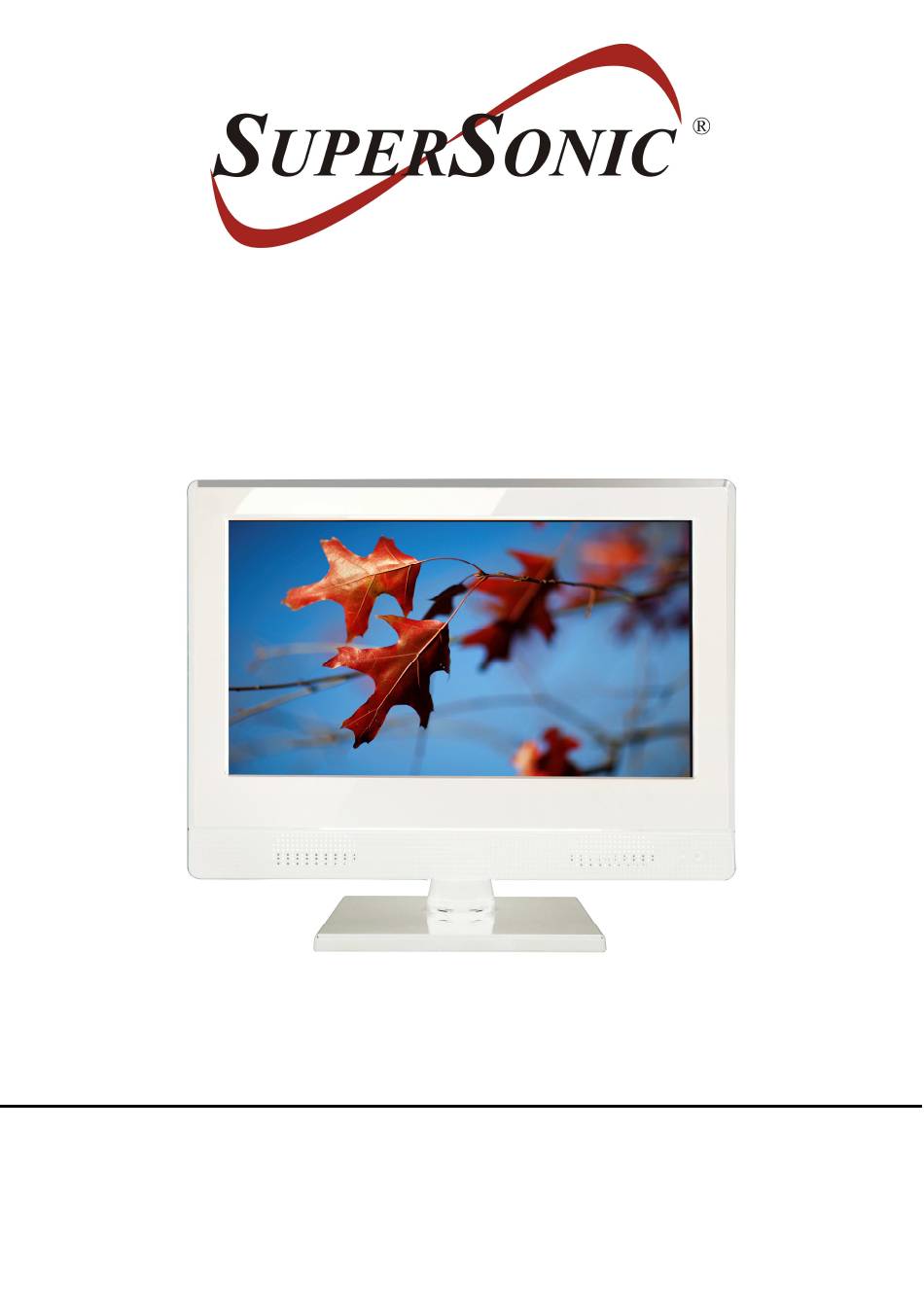

15.6" WIDESCREEN LED TV
MODEL NO.: SC-1511WHT
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-1511WHT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supersonic SC-1511WHT

Summary of Contents for Supersonic SC-1511WHT

  • Page 1 15.6” WIDESCREEN LED TV MODEL NO.: SC-1511WHT USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS SAFETY INSTRUCTIONS WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY: ● This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. ●...

  • Page 3: Accessories

    ● Connect this product to the power outlet which has protective earth connection. CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR PRODUCT/PROPERTY DAMAGE: ● This product is intended solely for non-commercial, non-industrial, personal use as a television. Do not use this product for any other purpose. ●...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-2 ACCESSORIES……….......................2 FEATURES........................4 GENERAL PARTS......................5-6 REMOTE CONTROL.....................7-8 REMOTE CONTROL PREPARATION...................9 BASIC CONNECTION....................10-14 OPERATIONS BASIC OPERATIONS....................15-18 MAIN MENU........................19-27 TV MODE........................19-26 AV AND OTHER MODES....................26 PC/VGA MODE…......................27 FOR REFERENCE WALL MOUNTING………………………………………………………………………………...28 STAND INSTALLATION…………………………………………………………………………..29 MAINTENANCE........................30 SPECIFICATIONS.......................30 TROUBLESHOOTING......................31...

  • Page 5: Features

    FEATURES 15.6" LED DISPLAY This player has a built-in LED display to provide clear vision and low radiation. Support auto program scanning Support digital broadcasting reception Support Electronic Program Guide Compatible with USB for music and photo playback Support multi-languages on screen display Support full function remote control Compatible with HDMI, PC AUDIO, VGA, YPbPr, CVBS and AUDIO R/L input Compatible with EARPHONE and COAXIAL output...

  • Page 6: General Parts

    GENERAL PARTS MAIN UNIT Front View 1. LED display screen 2. Remote control sensor 3. Power indicator- In standby mode the indicator light will display red color; when switching on the unit the indicator light will display blue color. 4. Stand holder 5.
  • Page 7 GENERAL PARTS Back View 1. Power input terminal 2. USB input terminal- For MUSIC/PHOTO playback. 3. HDMI input terminal 4. VGA input terminal 5. PC AUDIO input terminal 6. YPbPr input terminals 7. RF input terminal- To connect the external antenna. 8.

  • Page 8: Remote Control

    REMOTE CONTROL 1. POWER: Pres to enable standby mode; press again to turn on. 2. MUTE: To mute the sound. 3. Red / Green / Yellow / Blue 4. NUMBER BUTTONS (0-9): To input the number information, such as channel number and so on. 5.
  • Page 9 REMOTE CONTROL 19. CH+/-: Press CH+ button to play next channel, or press CH- button to play previous channel. 20. SOUND: To switch the sound mode in TV mode. 21. CC: To switch the CC mode. 22. MTS/AUDIO: To select desired soundtrack in TV mode.

  • Page 10: Remote Control Preparation

    REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used.

  • Page 11: Basic Connection

    BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE Main unit To power outlet AC Adaptor CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture.
  • Page 12 COMPOSITE AV CONNECTION For basic connection, use the composite Audio L/R (white/red) and CVBS cable AV cable to connect the unit with other devices. (Optional) Back of DVD/VCR YPbPr CONNECTION YPbPr cable (Optional) AUDIO cable (Optional) Back of DVD/VCR...
  • Page 13 HDMI CONNECTION Use HDMI cable to connect the unit with other devices to HDMI cable (Optional) receive high-definition multimedia signal. Back of DVD/VCR PC/VGA CONNECTION Audio cable VGA cable (Optional) (Optional) Back of DVR or PC Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.
  • Page 14 CONNECTING TO USB MEMORY DEVICE USB Memory Device (Optional) COAXIAL OUT CONNECTION Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. EARPHONE CONNECTION Earphone cable (Optional)
  • Page 15 If you have your TV connected with a Cable box or Satellite Receiver box any other Video Input source you don't need to run a channel scan, please follow the procedure below to see the input source. 1. Power on TV and press “SOURCE” button on TV Remote. 2.

  • Page 16: Basic Operations

    MAKE SURE ALL THE EQUIPMENTS AND POWER ADAPTOR ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATING. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
  • Page 17 SOUND MODE - Press SOUND button on remote control repeatedly to select desired sound mode. Available options: User, Music, Movie, Standard. CLOSED CAPTION - Press CC button on remote control repeatedly to set the CLOSED CAPTION function On or Off. SLEEP TIMER SETTING - Press SLEEP button on remote control repeatedly to select desired sleep time.
  • Page 18 FREEZE FUNCTION - During normal playing, press FREEZE button on remote control to hold the picture, and press it again to resume normal playing. USB OPERATION - Before following operations, insert a USB memory device first, which contains Photo and Music files.
  • Page 19 During normal playing: - Press UP/DOWN navigation button to play previous/next photo. - Press LEFT/RIGHT navigation button to rotate a photo counterclockwise/clockwise. - Press EXIT button to return to file selecting page. Music Playback - Select Music item in the main menu. - Press UP/DOWN navigation button to select preferred folder/file and press OK button to enter a folder or play selected file.

  • Page 20: Main Menu

    MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode.
  • Page 21 1. PICTURE 1.1 Picture Mode Available options: User, Standard, Dynamic, Mild. 1.2 Contrast The value of Contrast can be adjusted from 0-100. 1.3 Brightness The value of Brightness can be adjusted from 0-100. 1.4 Color The value of Color can be adjusted from 0-100. 1.5 Tint The value of Tint can be adjusted from -50 to 50.
  • Page 22 2. AUDIO 2.1 Sound Mode Available options: User, Music, Movie, Standard. 2.2 Bass The value of Bass can be adjusted from 0-100. 2.3 Treble The value of Treble can be adjusted from 0-100. 2.4 Balance The value of Balance can be adjusted from -50 to 50. NOTE: If the value of Bass or Treble has been changed, the sound mode will turn to User automatically.
  • Page 23 2.9 Accessibility This item is used to make accessibility for people who are blind or visually impaired. Voice Guide Turn on/off Voice Guide for some texts on screen. Voice Guide: On, Off Volume: Weak, Middle, Strong. Speed: Weak, Middle, Strong. Pitch: Weak, Middle, Strong.
  • Page 24 4. SETUP 4.1 Menu Language This item is used to select preferred OSD menu language. 4.2 Transparency This item is used to turn on/off Transparent OSD menu. 4.3 Zoom Mode This item is used to select preferred zoom mode of display screen. Available options: Normal, Wide, Zoom, Cinema.
  • Page 25 4.64 Option Mode Available options: Default, Custom. Font Style Available options: Default, Font 0, Font 1, Font 2, Font 3, Font 4, Font 5, Font 6, Font 7. Font Size Available options: Default, Normal, Large, Small. Font Edge Style Available options: Default, None, Raised, Depressed, Uniform, Left Shadow, Right Shadow. Font Edge Color Available options: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.
  • Page 26 5. CHANNEL 5.1 Air/Cable This item is used to select preferred signal receiving type. 5.2 Auto Scan -Press RIGHT or OK button to enter it. 5.21 Cable System This item is used to select preferred cable system. Available options: AUTO, STD, IRC, HRC. NOTE: This item is adjustable only when your signal type is set to Cable.

  • Page 27: Av And Other Modes

    5.3 Favorite - Press RIGHT or OK button to enter it. - Press UP or DOWN navigation button to select preferred channel. - Press OK button to label the selected channel as a favorite one or not. 5.4 Show/Hide - Press RIGHT or OK button to enter it. - Press UP or DOWN navigation button to select preferred channel.

  • Page 28: Pc/Vga Mode

    PC/VGA MODE - Press SOURCE button on the unit or remote control to set the unit in VGA mode. - Press MENU button to display the main menu and select Setup item. Then press DOWN navigation button to enter Setup menu page. - Press UP or DOWN navigation button to select Advanced and press RIGHT navigation button or OK button to enter it.

  • Page 29: Wall Mounting

    WALL MOUNTING WARNING: ● Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own. ● Do not wall mount the TV while TV is turned on or connected to power. It may cause personal injury due to electric shock.

  • Page 30: Stand Installation

    STAND INSTALLATION Your TV may be packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

  • Page 31: Maintenance

    MAINTENANCE ● Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

  • Page 32: Troubleshooting

    GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...
  • Page 34 Warranty Basic Warranty Statement Supersonic Inc.("Supersonic") warrants this product to the original purchaser ONLY, to be free from defects in materials and workmanship under normal use, for ninety (90) DAYS from the date of original purchase. Proof of purchase (receipt) required.
