Supersonic SC-2212 User Manual

22” led tv compatible with dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

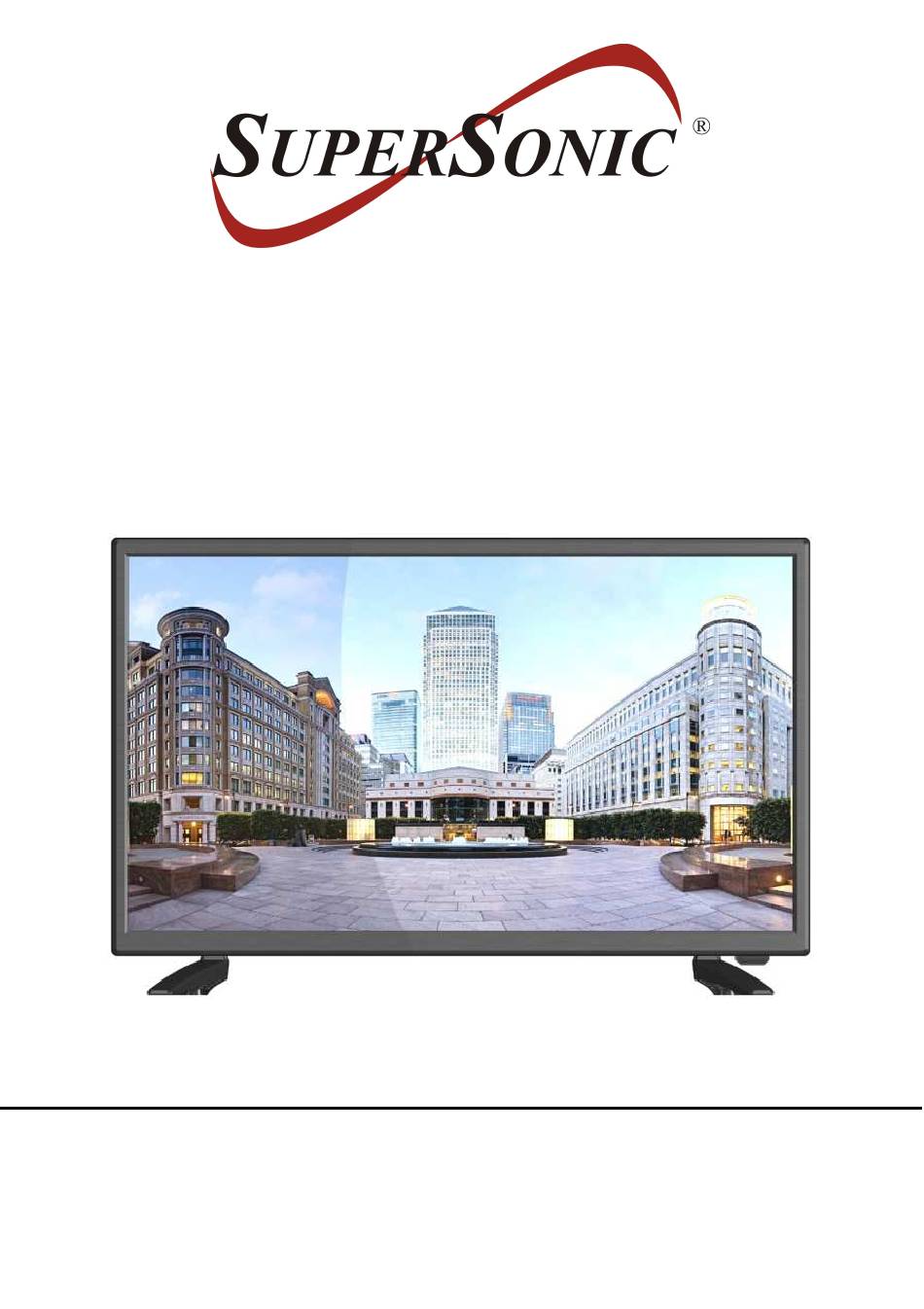

22" LED TV COMPATIBLE
WITH DVD PLAYER
MODEL NO.: SC-2212
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-2212 and is the answer not in the manual?

Questions and answers

Jim
June 25, 2025

How to eject a dvd

User image 685b6f3205ae4
0

Subscribe to Our Youtube Channel

Related Manuals for Supersonic SC-2212

Summary of Contents for Supersonic SC-2212

  • Page 1 22” LED TV COMPATIBLE WITH DVD PLAYER MODEL NO.: SC-2212 USER MANUAL Please read this manual carefully before using, and keep it for future reference.

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS Safety information CAUTION: DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS PLAYER.
  • Page 3 Read all instructions before using Do not use this product near water. Install the product in accordance with the operating instructions. Do not set the product near heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit the product.

  • Page 4: Accessories

    DISC Handling and Maintenance Handling precautions Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion. Do not write on the label side with a ball-point pen or other writing utensils. Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS GETTING STARTED IMPORTANT INSTRUCTIONS...................1-3 ACCESSORIES........................3 FEATURES..........................5 GENERAL PARTS......................6-7 REMOTE CONTROL......................8-9 REMOTE CONTROL PREPARATION.................10 BASIC CONNECTION....................11-15 OPERATIONS BASIC OPERATIONS....................16-29 Compatible with DVD....................16-24 TV..........................25-29 MAIN MENU........................30-37 TV MODE........................30-36 AV AND OTHER MODES....................36 PC/VGA MODE......................37 FOR REFERENCE MAINTENANCE......................38 WALL MOUNTING……………………………………………………………………..……38 STAND INSTALLATION……………………………………………………………………..……39 SPECIFICATIONS.......................40 TROUBLESHOOTING....................41-42...

  • Page 6: Features

    FEATURES 22" LED DISPLAY This player has a built-in LED display window to provide clear vision and low radiation. With Built-in DVD Player Support Auto Program Scanning Function Support Digital Broadcasting Reception Support EPG (Electronic Program Guide) Function Compatible with USB1 for Music and Photo Playback (TV Mode) Compatible with USB2 and SD/MMC/MS Card for Movie, Music and Photo Playback (DVD Mode) Support Multi-languages On Screen Display...

  • Page 7: General Parts

    GENERAL PARTS MAIN UNIT Front View Side View 1. LED display screen 2. Remote control sensor / Power indicator - In standby mode the indicator light is red; when switching on the unit the indicator light is blue color. 3. Stand holder 4.
  • Page 8 GENERAL PARTS Back View 1. Power input (AC cord) 2. EARPHONE output terminal 3. COAXIAL output terminal 4. AUDIO L/R input terminals (for AV & YPbPr) 5. Y (CVBS) / Pb / Pr input terminals 6. VGA input terminal 7. PC AUDIO input terminal 8.

  • Page 9: Remote Control

    REMOTE CONTROL 1. POWER: To set the unit in standby mode; press it again to switch it on. 2. MUTE: To mute the sound. 3. RED button / : To open or close the disc compartment in DVD mode. GREEN button / GOTO: To play from a certain point in DVD mode.
  • Page 10 REMOTE CONTROL 19. CH+/-: Press CH+ button to play next channel, or press CH- button to play previous channel. 20. SOUND / MEDIA: To switch the sound mode in TV mode; to switch the unit among DISC/CARD/USB in DVD mode. 21.

  • Page 11: Remote Control Preparation

    REMOTE CONTROL PREPARATION BATTERY INSTALLATION Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1). SERVICE LIFE OF BATTERIES - The batteries normally last for one year although this depends on how often the remote control is used.

  • Page 12: Basic Connection

    BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to AC power source. ● Read through the instructions before connecting other equipments. CONNECTING TO AC POWER SOURCE Main unit Use an external adaptor (not supplied) or the like to connect this product to power outlet.
  • Page 13 COMPOSITE AV CONNECTION For basic connection, use the composite Audio L/R (white/red) and CVBS cable to connect the AV cable unit with other devices. (Optional) Back of DVD/VCR YPbPr CONNECTION Audio cable YPbPr cable (Optional) (Optional) Back of DVD/VCR...
  • Page 14 HDMI CONNECTION Use HDMI cable to connect the unit with HDMI cable other devices to receive high-definition (Optional) multimedia signal. Back of DVD/VCR PC/VGA CONNECTION VGA cable Audio cable (Optional) (Optional) Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.
  • Page 15 COAXIAL OUT CONNECTION Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. EARPHONE CONNECTION Earphone cable (Optional)
  • Page 16 CONNECTING TO USB MEMORY DEVICE (TV) USB Memory Device (Optional) USB 2 AND CARD CONNECTION (DVD) Insert a USB or SD/MMC/MS memory device for multimedia files playback. USB device (Optional) Memory Card (Optional)

  • Page 17: Basic Operations

    MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE OPERATING. BASIC OPERATIONS - Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
  • Page 18 4. Fast forward/Fast backward During playback, press button or button to fast forward/backward. Press (PLAY) button to resume normal play. 5. Pause/play During playback, press button to pause playing, press it again to resume normal playback. 6. MUSIC playback a) Insert the disc containing the files in MUSIC format to be played and after a few seconds, the screen of the monitor will show all the folders on the disc.
  • Page 19 c) The files in this folder are displayed and select the desired file by navigation buttons, then press the (PLAY) or ENTER button to start playback. d) During normal playing, press button, the player will play the next or previous file. e) Press CC (REPEAT) button to change play mode.
  • Page 20 Skip to next/previous picture Press button to skip to the next picture or button to skip to the previous picture. If no key is pressed for 3 seconds, it will skip to next picture automatically. Rotating pictures - Press RIGHT navigation button to rotate the picture clockwise. - Press LEFT navigation button to rotate the picture counter-clockwise.
  • Page 21 9. Compatible with Video CD with playback control a) When playing VCD 2.0 with PBC, the player will show the VCD version. b) Press D.MENU button on remote control repeatedly to set PBC ON or OFF. c) Press numeric buttons to select corresponding track. Example: Track 9, press 0 and 9, several seconds later, it will automatically switch to track 9.
  • Page 22 11. Compatible with CARD playback a) Insert the CARD (SD/MMC/MS) containing the files in music, picture or movie format to be played. b) Press SOUND (MEDIA) button to switch the unit in CARD reader mode. c) After several seconds, all the folders in the CARD will display on monitor screen.
  • Page 23 A-B repeat play Repeating sections between two specific points (A-B repeat) a) Press BLUE (A-B) button during playing at the point where repeat play is to be started (A). b) Press BLUE (A-B) button at the point where repeat play is to be ended (B). Repeat play of the selection between points A and B starts.
  • Page 24 Press MTS/AUDIO (LANGUAGE) button while playing DVD disc the screen will display the number of current soundtrack languages, pressing the button again will change the language. Pressing MTS/AUDIO (LANGUAGE) button while playing VCD/CD disc will change audio output mode: LEFT MONO, RIGHT MONO, MIX-MONO and STEREO soundtrack.
  • Page 25 1.2 ANGLE MARK - It is used to select whether or not the multi- angle icon is display on screen when a Multi-angle disc is playing. Options: On, Off. 1.3 OSD LANG - It is used to choose the desired language for different user. For this player, you can choose English or other languages.
  • Page 26 - Press SOURCE button on the unit or remote control to set the unit in TV mode. SELECT DESIRED PROGRAM 1. Press CH+ button to play next channel. 2. Press CH- button to play previous channel. 3. Press number buttons on the remote control directly to select desired program. Example : Track 9, press ＂9＂, three seconds later it will turn to track 9 automatically, or press OK button to confirm directly.
  • Page 27 CLOSED CAPTION - Press CC button on remote control repeatedly to set the CLOSED CAPTION function On or Off. SLEEP TIMER SETTING - Press SLEEP button on remote control repeatedly to select desired sleep time. Available options: Off, 5 min, 10 min, 15 min, 30 min, 45 min, 60 min, 90 min, 120 min, 180 min, 240 min.
  • Page 28 FREEZE FUNCTION - During normal playing, press FREEZE button on remote control to hold the picture, and press it again to resume normal playing. USB OPERATION (for TV mode only) - Before following operations, insert a USB memory device first, which contains Photo and Music files.
  • Page 29 During normal playing: - Press UP/DOWN navigation button to play previous/next photo. - Press LEFT/RIGHT navigation button to rotate a photo counterclockwise/clockwise. - Press EXIT button to return to file selecting page. Music Playback - Select Music item in the main menu. - Press UP/DOWN navigation button to select preferred folder/file and press OK button to enter a folder or play selected file.

  • Page 30: Main Menu

    MAIN MENU ● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until change, and the unit can always be operated under the same conditions. ● The settings will be remained in the memory until the settings are changed, even after setting the player to standby mode.
  • Page 31 1. PICTURE 1.1 Picture Mode Available options: User, Standard, Dynamic, Mild. 1.2 Contrast The value of Contrast can be adjusted from 0-100. 1.3 Brightness The value of Brightness can be adjusted from 0-100. 1.4 Color The value of Color can be adjusted from 0-100. 1.5 Tint The value of Tint can be adjusted from -50 to 50.
  • Page 32 2. AUDIO 2.1 Sound Mode Available options: User, Music, Movie, Standard. 2.2 Bass The value of Bass can be adjusted from 0-100. 2.3 Treble The value of Treble can be adjusted from 0-100. 2.4 Balance The value of Balance can be adjusted from -50 to 50. NOTE: If the value of Bass or Treble has been changed, the sound mode will turn to User automatically.
  • Page 33 2.9 Accessibility This item is used to make accessibility for people who are blind or visually impaired. Voice Guide Turn on/off Voice Guide for some texts on screen. Voice Guide: On, Off Volume: Weak, Middle, Strong. Speed: Weak, Middle, Strong. Pitch: Weak, Middle, Strong.
  • Page 34 4. SETUP 4.1 Menu Language This item is used to select preferred OSD menu language. 4.2 Transparency This item is used to turn on/off Transparent OSD menu. 4.3 Zoom Mode This item is used to select preferred zoom mode of display screen. Available options: Normal, Wide, Zoom, Cinema.
  • Page 35 4.64 Option Mode Available options: Default, Custom. Font Style Available options: Default, Font 0, Font 1, Font 2, Font 3, Font 4, Font 5, Font 6, Font 7. Font Size Available options: Default, Normal, Large, Small. Font Edge Style Available options: Default, None, Raised, Depressed, Uniform, Left Shadow, Right Shadow. Font Edge Color Available options: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.
  • Page 36 5. CHANNEL 5.1 Air/Cable This item is used to select preferred signal receiving type. 5.2 Auto Scan -Press RIGHT or OK button to enter it. 5.21 Cable System This item is used to select preferred cable system. Available options: AUTO, STD, IRC, HRC. NOTE: This item is adjustable only when your signal type is set to Cable.

  • Page 37: Av And Other Modes

    5.3 Favorite - Press RIGHT or OK button to enter it. - Press UP or DOWN navigation button to select preferred channel. - Press OK button to label the selected channel as a favorite one or not. 5.4 Show/Hide - Press RIGHT or OK button to enter it. - Press UP or DOWN navigation button to select preferred channel.

  • Page 38: Pc/Vga Mode

    PC/VGA MODE - Press SOURCE button on the unit or remote control to set the unit in VGA mode. - Press MENU button to display the main menu and select Setup item. Then press DOWN navigation button to enter Setup menu page. - Press UP or DOWN navigation button to select Advanced and press RIGHT navigation button or OK button to enter it.

  • Page 39: Maintenance

    MAINTENANCE Be sure to press POWER button to set the player to the standby mode and disconnect ● the power plug before maintaining the player. ● Wipe the player with a dry, soft cloth. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.

  • Page 40: Stand Installation

    STAND INSTALLATION Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below. Step 1 Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

  • Page 41: Specifications

    SPECIFICATIONS Display Device 22 inch LED TV Resolution 1920×1080 16.7M Display Colors Contrast Ratio 600:1 Aspect Ratio 16:9 30,000 Hrs Life Time DVD/CD/CDR/CDRW/DVD-R/DVD+R/ Supported Discs DVD-RW/DVD+RW/VCD/SVCD Compatible PC-RGB Up to 1920×1080@60Hz Signal Format HDMI Max. 1080P Supported YPbPr Max. 1080P POWER SOURCE AC 100-240V, 50/60Hz + DC 12V POWER...

  • Page 42: Troubleshooting

    GENERAL TROUBLESHOOTING Check the following points before assuming malfunctions of this unit: Symptom[COMMON] Remedy Insert the power plug securely into the power outlet. No power. No picture. Ensure that the equipment is connected properly. ● Ensure that the equipment is connected properly. ●...

  • Page 43: Region Code Setting

    GENERAL TROUBLESHOOTING ● An alternative language is not selected with discs which do Alternative audio not contain more than one language. soundtrack (or subtitle) ● In the case of some discs, the alternative language can not be languages fail to be selected by operating the LANGUAGE or SUBTITLE button.
  • Page 45 Warranty Basic Warranty Statement Supersonic Inc.("Supersonic") warrants this product to the original purchaser ONLY, to be free from defects in materials and workmanship under normal use, for ninety (90) DAYS from the date of original purchase. Proof of purchase (receipt) required.
