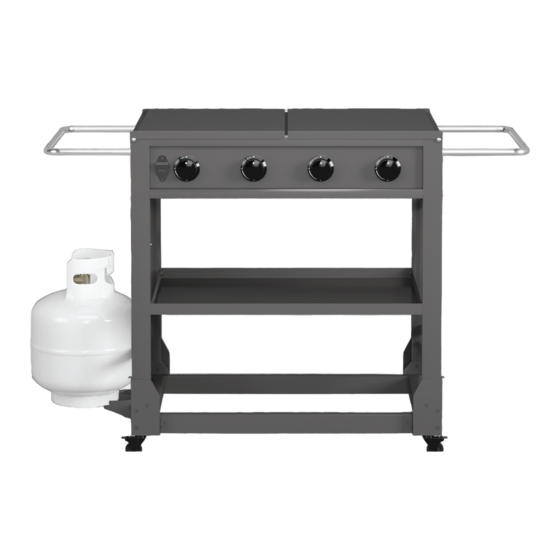

Summary of Contents for Tytus TDT-071-0101
- Page 2 Laughter with your friends and family. Because grilling is about more than good food. lt’s about the time you spend with your favorite people. TYTUS® is proud to produce quality grills that transform your outdoors. Thank you for your purchase.
-
Page 3: Table Of Contents
THIS MANUAL COVERS MODEL NUMBERS: TDT-071-0101 TDT-471-0101 TABLE OF CONTENTS lmportant Safety lnstructions ........................Package Contents ............................. Assembling your Griddle ..........................Using your Griddle ............................Lighting your Griddle ....................... Cooking with your Griddle ..................... Checking for Gas Leaks ......................Purging Air from the Gas Line/Reset the Regulator .......... -
Page 4: Lmportant Safety Lnstructions
FREE HELP FROM THE GRIDDLE EXPERTS Your TYTUS griddle is designed for quick assembly and ease of use. lf you have problems, DO NOT RETURN THIS GRIDDLE TO THE STORE. We’re the experts on this product and are trained to help you with assembly questions, griddle operation, and replacement of damaged or missing parts. - Page 5 (whenever spiders are active in your area), and if your griddle has not been used for an extended period of time. See “Burner Tubes and Burner Ports” (PAGE 22) for instructions. OWNER'S MANUAL TYTUS GRILLS...
- Page 6 Propane gas griddle models are designed for use with kit purchased from TYTUS. Contact TYTUS Customer Support a standard 20 lb. Liquid Propane Gas (LP Gas) tank (sold for more information.
- Page 7 Always keep new and exchanged propane gas tanks in an upright position during use, transit, or storage. Leak test new and exchanged propane gas tanks BEFORE connecting one to your griddle. See "Checking for Gas Leaks" (PAGE 20) for instructions. OWNER'S MANUAL TYTUS GRILLS...
-
Page 8: Package Contents
PACKAGE CONTENTS Remove your griddle from the packaging, and lay out the contents. Make sure that your griddle is not damaged and that you have all parts. Left side shelf support Griddle Cooking pan Right side shelf support Grease Cup Frame baffle Owner's manual Gas tank bracket... -
Page 9: Assembling Your Griddle
Code, CSA B1492, ANS Z21.58-201B Outdoor Cooking Gas Appliances. STEP 1: LIFT OFF THE GRIDDLE BURNER BOX Unlock the four latches on the sides of the burner box With another person, lift straight up and set it to the side. OWNER'S MANUAL TYTUS GRILLS... - Page 10 STEP 2: EXPAND THE CART Unfold the cart by expanding the cart bars and lock into place STEP 3: ATTACH CASTERS Install four locking casters into each corner of the cart bottom by rotating into the socket.
- Page 11 Insert shelf into position by aligning cutouts over screws and push into place. STEP 5: MOUNT GAS TANK BRACKET Mount the gas tank bracket to the left side of the cart using two butterfly screws. Gas tank bracket should face the outside of the cart. OWNER'S MANUAL TYTUS GRILLS...
- Page 12 STEP 6: INSTALL THE BURNER BOX Position the burner box next to the cart. Lock the caster wheels. With another person, lift the firebox onto the cart and align the four latches. Lock the four latches to secure the firebox to the cart. STEP 7: INSTALL SIDE SHELF SUPPORTS Locate the shelf supports.
- Page 13 On the side of the griddle, insert the grease catch into the side of the firebox as shown. STEP 9: INSTALL GRIDDLE PLATE Fold the griddle lid out onto the shelf supports. The lid doubles as side shelves for your griddle. Install the griddle plate into the burner box as shown. OWNER'S MANUAL TYTUS GRILLS...
- Page 14 STEP 10: CONNECT THE PROPANE TANK From the side of the cart, place the foot ring of the tank into the gas tank bracket. Attach the hook ring to the lip of the propane tank. Attach the regulator hose to the propane tank.
- Page 15 YOU'RE FINISHED! Enjoy good food, family, and friends with your TYTUS griddle. Your griddle is designed to be a high-quality, solid construction that will last for years to come. For usage instructions, see "Using your grill" (PAGE 16). OWNER'S MANUAL...
-
Page 16: Using Your Griddle
USING YOUR GRIDDLE Before lighting or using your griddle, familiarize yourself with the safety guidelines at the front of this manual. See "lmportant Safety lnstructions" (PAGE WARNING: Do not smoke while lighting the griddle or checking gas supply connections. LIGHTING THE GRIDDLE NOTE: lf your griddle does not light properly, see "What should l do if my griddle won't light?"... - Page 17 NEVER lean over the cooking area while lighting your gas griddle. Keep your face and body a safe distance (at least 18 inches) from the lighting hole or burners when lighting your griddle with a match. OWNER'S MANUAL TYTUS GRILLS...
- Page 18 WARNING Should a "FLASH-BACK" fire occur in/or around the burner tubes, follow the instructions below. Failure to comply with these instructions could result in a fire or explosion that could cause serious bodily injury, death, or property damage. Shut off the gas supply to the griddle. Turn the control knobs to the OFF position.
-
Page 19: Cooking With Your Griddle
Let the oil burn off. You will know the burn off is complete when the griddle surface stops smoking. Repeat this process two to three times. You may repeat the process as many times as necessary to achieve a solid black/blue color. OWNER'S MANUAL TYTUS GRILLS... -
Page 20: Checking For Gas Leaks
TYTUS Customer Support at 855-969-5185, or your gas supplier for repair assistance. Brush soapy solution onto propane tank in the areas indicated by the arrows, and look for growing bubbles on your propane tank. -
Page 21: Purging Air From The Gas Line/Reset The Regulator
Remove the center shelf. Collapse the cart sides. With another person, lift the griddle burner box from the ground and place on the base of the cart. Secure the four burner box latches to the cart. OWNER'S MANUAL TYTUS GRILLS... -
Page 22: Cleaning And Maintaining Your Griddle
CLEANING AND MAINTAINING YOUR GRIDDLE WARNING: Always wear protective gloves and safety glasses Burner tube when cleaning your grill. Turn off the gas supply at the source and disconnect the unit before servicing. To avoid the possibility of burns, cleaning and maintenance should be done only when the griddle is cool and off. - Page 23 Make sure that each gas valve is inside a burner tube and will cause rapid deterioration of griddle before using your grill. lf the gas valve is not inside components unless cleaned regularly. the burner tube, lighting the burner may cause an explosion or a fire. OWNER'S MANUAL TYTUS GRILLS...
-
Page 24: Frequently Asked Questions
Remove the orifice from the gas valve, and gently clear any obstruction with a fine wire. Reinstall all orifices, burners, screws, and cooking components. lf you suspect an obstruction in the gas valves or manifold, call the TYTUS Customer Support at (855) 969-5185. - Page 25 Make sure that the end of each burner tube is properly located over each gas valve orifice. There may be an obstruction in the gas line orifice. Remove the fuel line from the griddle. Open the gas supply for one OWNER'S MANUAL TYTUS GRILLS...
- Page 26 Close off the gas supply at its source and reconnect fuel line to the griddle. lf an obstruction is suspected in the orifice or gas valves, call the TYTUS Support Center. WARNING: Do not smoke while clearing the gas line.
-
Page 27: Part Diagrams And Lists
GRIDDLE PARTS DIAGRAM OWNER'S MANUAL TYTUS GRILLS... - Page 28 GRIDDLE PARTS LIST MANUAL PART # DESCRIPTION PART NUMBER PER UNIT Griddle plate TFR-GRD-001 Burner TFR-GRD-002 Burner electrode TFR-GRD-003 Ignition wire TFR-GRD-004 Heat shield panel TFR-GRD-005 Right side shelf TFR-GRD-006 Clasp TFR-GRD-007 Body side panel right TFR-GRD-008 Body TFR-GRD-009 Body side panel left TFR-GRD-010 Bottom pad TFR-GRD-011...
- Page 29 NOTES: OWNER'S MANUAL TYTUS GRILLS...
-
Page 30: Warranty
TIMING AND PROCEDURE: Before Warranty service can commence, the original customer purchaser must contact TYTUS for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the Warranty Period, MUST be presented to a TYTUS authorized customer service provider in order to obtain the requested service. - Page 31 United States and Canada, and only applies to products purchased and serviced in the United States and Canada. All replaced parts and Products, and Products on which a refund is made, become the property of TYTUS.
- Page 32 TRANSFORM YOUR OUTDOORS ®...
