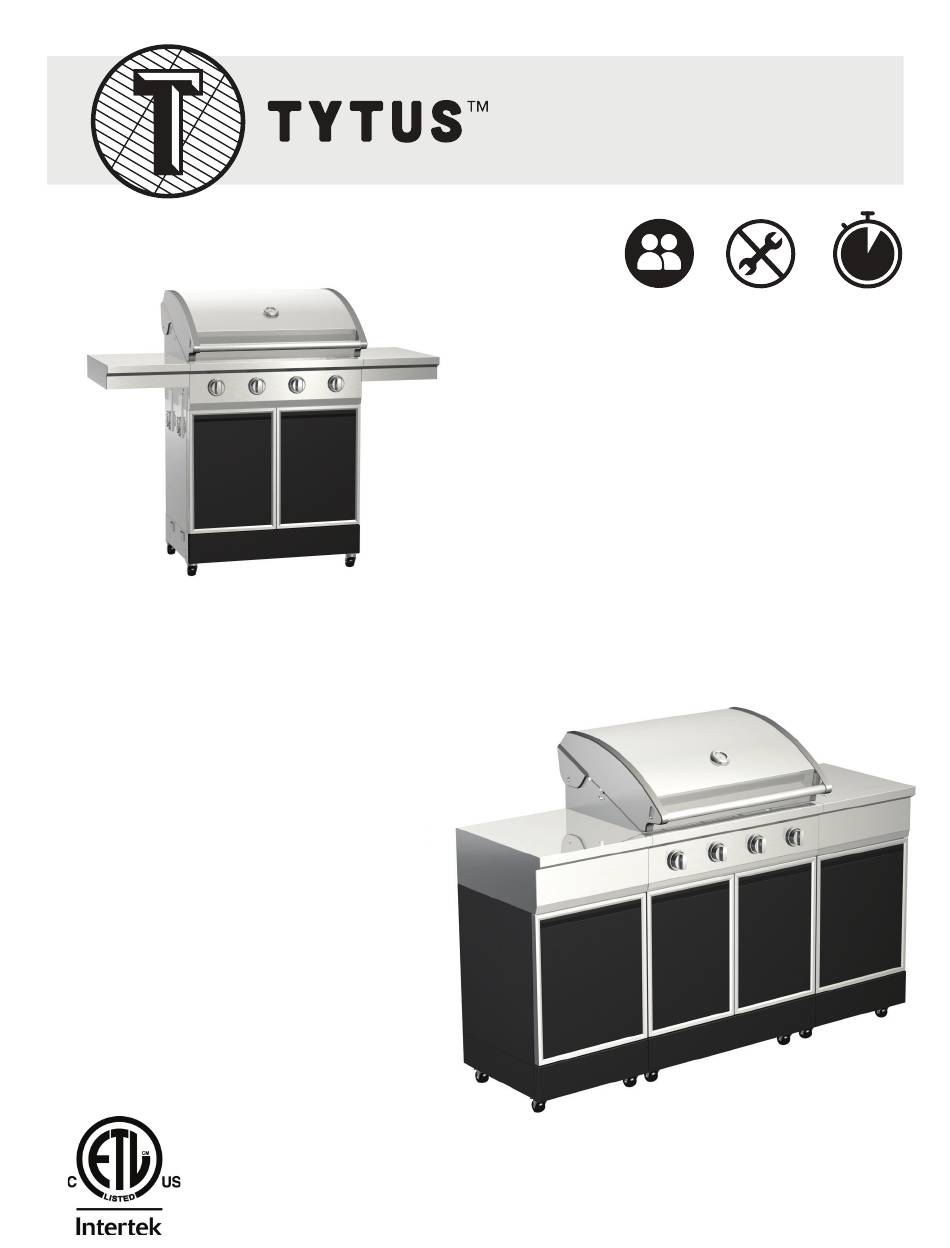

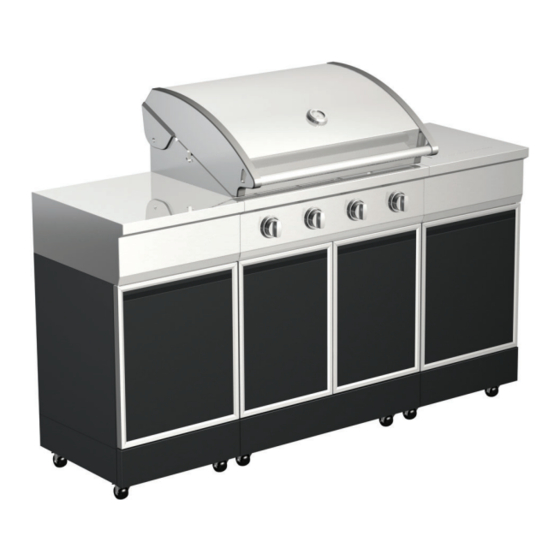

  • Page 1 Transform Your Outdoors. About 2 people No tools 5 minutes 4-BURNER GAS GRILL T-400-PCC-LP (charcoal grey) 4-BURNER ISLAND GAS GRILL WITH SIDE CABINETS TI-400-PCC-LP (charcoal grey) USER MANUAL...
  • Page 2 Laughter with your friends and family. Because grilling is about more than good food. It’s about the time you spend with your favorite people. TYTUS is proud to produce quality grills that transform your outdoor space. Thank you for your purchase.

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ............4 Package Contents.

  • Page 4: Important Safety Instructions

    Free Help From the Grill Experts Your TYTUS grill is designed for quick assembly and ease of use. If you have problems, do not return it to the store. We're the experts on this product and are trained to help you with assembly questions, grill operation, and replacement of damaged or missing parts.
  • Page 5 • Any attempt to convert the grill from one fuel type to another is extremely hazardous and must be performed by a qualified gas technician only, using a natural gas conversion kit purchased from TYTUS. Contact TYTUS Customer Support for more information.
  • Page 6 • Use your grill on a level, stable surface in an area clear of combustible materials. • Do not leave the grill unattended when in use. Do not move the appliance when in use. • Allow the grill to cool before moving or storing. •...

  • Page 7: Package Contents

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill PACKAGE CONTENTS Remove your grill from the packaging, and lay out the contents. Make sure that your grill is not damaged and that you have all parts. Gas Grill Island Gas Grill...

  • Page 8: Assemble The Grill

    ASSEMBLE THE GRILL Before Grill Assembly • Make sure that you have assistance from another person to handle the grill box and other large, heavy parts. • Open the lid of the shipping box, and remove the top sheet of cardboard and packing materials. Lay the cardboard sheet on the floor and use it as a work surface to protect the floor and grill parts from scratches.
  • Page 9 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Step 2: Assemble the Grill Base TIP: When lifting the panels, make sure that the handles are in the up/unlocked position. A) Lift Panel A. B) Lift Panel B, then push the locking handle down to secure it to Panel A.
  • Page 10 Step 3: Attach the Grill Box to the Grill Base A) With another person, grasp the handholds on the sides of the grill box, then lift it on top of the grill base and align the latches on the sides. The grill base’s cabinet doors should face the same direction as the front of the grill box. TIP: Keep the grill box level as you lower it straight down.
  • Page 11 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Step 4: Choose your Grill Model If you have the If you have the 4-Burner Island Gas Grill 4-Burner Gas Grill with Side Cabinets (T-406-M-LP and T-406-SS-LP): (T-406-M-LP and T-406-SS-LP): Go to “Grill-Only Model: Attach side...
  • Page 12 GRILL-ONLY MODEL: ATTACH SIDE SHELVES AND PROPANE The grill side shelves are included with the grill models (T-406-M-LP and T-406-SS-LP). If you have the island grill model instead, go to “Island Grill Model: Attach Side Carts and Propane” (page 16). Step 5: Attach the Side Shelves A) Select the left (labeled “L”) or right (labeled “R”) side shelf.
  • Page 13 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Step 6: Connect the Propane Tank A) Feed the regulator hose through the opening in Panel B. Gas line B) Place a propane tank (not included) into the cabinet with the tank valve facing the front left corner. Tighten the wing bolt behind the grill base (near the bottom) to secure the propane tank in place.
  • Page 14 C) Attach the regulator hose to the propane tank. Gas line Step 7: Install the Cooking Components A) Insert the flame tamers into the grill box. The notches at the end of each flame tamer should fit into the slots at the back of the grill box.
  • Page 15 Warming rack D) You’re finished! Enjoy good food, family, and friends with your TYTUS grill. Your grill is designed to be a high-quality, solid construction that will last for years to come. For usage instructions, see “Use the Grill” (page 24).
  • Page 16 ISLAND GRILL MODEL: ATTACH SIDE CARTS AND PROPANE The grill side carts are included with the Grill Island models TI-404-MGG-LP and TI-404-M-LP. If you have the grill-only model instead, go to “Grill-Only Model: Attach side shelves and Propane” (page 12). Step 5: Expand the Side Carts A) Pull the captive pin on the side of a cart, then pull panels apart.
  • Page 17 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill D) Repeat steps 6A through 6C to install the panel on the other side cart. Step 7: Install the Top Caps A) Identify which top cap fits into the left or right side cart. The ice bucket is for the left side cart. The sear burner is for the right side cart.
  • Page 18 Step 8: Attach the Left Side Cart A) Have your partner hold the grill base steady. B) Line up the notches on the left side cart (ice bucket side) with the grill base. The two pieces should be about one to two inches from one another.
  • Page 19 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Step 9: Install the Gas Line and Right Side Cart A) Feed the regulator hose through the opening in the grill base, and the gas line hose through the opening in the right side cart.
  • Page 20 E) Under the right side cart, pull the quick connect ring back, insert the gas line hose, then release the quick connect. The quick connect springs back into place, and the hose attaches to the right side cart. Gas line hose www.TYTUSgrills.com...
  • Page 21 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill F) Place a propane tank (not included) into the grill base with the tank valve facing the front left corner. Tighten the wing bolt behind the grill base (near the bottom) to secure the propane tank in place.
  • Page 22 G) Attach the regulator hose to the propane tank. Regulator hose www.TYTUSgrills.com...
  • Page 23 Warming rack D) You’re finished! Enjoy good food, family, and friends with your TYTUS grill. Your grill is designed to be a high-quality, solid construction that will last for years to come. For usage instructions, see “Use the Grill” (page 24).

  • Page 24: Use The Grill

    USE THE GRILL Before lighting or using your grill, familiarize yourself with the safety guidelines at the front of this manual. See “Important Safety Instructions” (page WARNING: Do not smoke while lighting the grill or checking gas supply connections. LIGHT THE GRILL Note: If your grill does not light properly, see “What should I do if my grill won’t light?”...
  • Page 25 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill 6) Push and turn the RIGHT control knob slowly to H H I. Keep the control knob pushed in until the jet-fire ignitor lights the burner. WARNING: Failure to open the grill lid while lighting could result in a fire or explosion that could cause serious bodily injury, death, or property damage.
  • Page 26 5) Push and turn the control knob to H H I. The built-in spark ignitor lights the burner automatically. If the grill doesn’t light in five seconds, turn the burner control off, wait five minutes, and repeat the lighting procedure. If the grill still does not light: A) Turn the burner control and gas source O O FF, and wait five minutes for the gas to clear.
  • Page 27 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Manually Lighting with a Match 1) Insert a match into the manual lighting stick (included in the bag with the User Guide). 2) Make sure that your propane gas tank is filled.
  • Page 28 7) Light the match, insert the manual lighting stick through the lighting hole, then turn the nearest main burner control knob to the H H IGH setting to release gas. The burner should light immediately. Never lean over the cooking area while lighting your gas grill. Keep your WARNING: face and body a safe distance (at least 18 inches) from the lighting hole or burners when lighting your grill with a match.

  • Page 29: Cook With The Grill

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill COOK WITH THE GRILL WARNING: Your grill will get very hot. Never lean over the cooking area while using your grill. Do not touch cooking surfaces, grill housing, lid, or any other parts while the grill is in operation or until the grill has cooled down after use.

  • Page 30: Check For Gas Leaks

    CHECK FOR GAS LEAKS Before first use, at the beginning of each season, or every time your propane tank is changed, you must check for gas leaks. WARNING: • Your grill must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas-fired or electrical appliances.

  • Page 31: Purge Air From The Gas Line/Reset The Regulator

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill PURGE AIR FROM THE GAS LINE/RESET THE REGULATOR Note: This procedure should be done every time a new propane gas tank is connected to your grill. 1) Turn the control knobs O O FF.

  • Page 32: Disassemble The Grill

    DISASSEMBLE THE GRILL GRILL-ONLY MODEL (T-406-M-LP/T-406-SS-LP) 1) Make sure that the grill’s control knobs and the propane tank’s gas knob are turned off and that the grill is clean. TIP: If you want, remove the warming rack, cooking grates, and flame tamers. 2) Disconnect the regulator hose from the propane tank and grill.
  • Page 33 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill 3) Loosen the wing bolt behind the grill base (near the bottom), and remove the propane tank from the grill cabinet. Wing bolt 4) Feed the regulator hose back out through the opening in Panel B.
  • Page 34 5) To remove the side shelves, lift a shelf, let the end rotate down (45°), then lift it off the grill. 6) Unlock the four latches on the sides of the grill, then lift the grill straight up (with another person) and set it to the side.
  • Page 35 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill To fold down the grill base: Lift up Panel E, rotate the top inward (45°), then pull it off the grill base. Unlock Panel B and Panel C from Panel D, then lay Panel D flat into the base.
  • Page 36 8) Make sure that the base is completely flat. With another person, grasp the handholds on the sides of the grill box, then lift onto the folded base. The front of the grill box should face the same direction as the overhanging panel lock handle.

  • Page 37: Grill Island Model (Ti-404-Mgg-Lp/Ti-404-M-Lp)

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill GRILL ISLAND MODEL (TI-404-MGG-LP/TI-404-M-LP) 1) Make sure that the grill’s control knobs and the propane tank’s gas knob are turned off and that the grill is clean. TIP: If you want, remove the warming rack, cooking grates, and flame tamers.
  • Page 38 3) Loosen the wing bolt behind the grill base (near the bottom), and remove the propane tank from the grill cabinet. Wing bolt www.TYTUSgrills.com...
  • Page 39 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill 4) Disconnect the gas line hose underneath the right, sear-side cabinet. Carefully feed the hoses back through the openings in the sides of the grill base and right side cart. Gas line hose...
  • Page 40 5) Gently lift each side cart up and out to disconnect them from the main grill base. The easiest way to do this is to lift with your foot, disconnecting first the front of the cart and then the back: A) At the front of the grill, insert your foot under the side cart next to the wheel near the grill base.
  • Page 41 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill 4) Unlock the four latches on the sides of the grill, then lift the grill off (with another person) and set it to the side. T T IP: Lift with these handholds.
  • Page 42 To fold down the main grill base: Unlock Panel B and Panel C from Panel D, then lay Panel D flat into the base. Unlock Panel C from Panel A, then lay it flat into the base. Unlock Panel B from Panel A, then lay it flat into the base. Lay Panel A flat into the base.
  • Page 43 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill 8) Make sure that the base is completely flat. Lift the grill box (with another person), place it on top of the base, and lock the four latches on the sides of the grill.
  • Page 44 B) Lift the side panel up and off the cart. C) Pull the locking pin, then push the cart together until the cart locking pin locks the cart. D) Repeat to fold down the second side cart. www.TYTUSgrills.com...

  • Page 45: Clean And Maintain The Grill

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill CLEAN AND MAINTAIN THE GRILL WARNING: • Always wear protective gloves and safety glasses when cleaning your grill. • Turn off the gas supply at the source and disconnect the unit before servicing. To avoid the possibility of burns, cleaning and maintenance should be done only when the grill is cool and off.
  • Page 46 6) Carefully lift each burner up and away from the gas valve orifice. Burner tube 7) Clean the burner tubes with one of these three cleaning methods: • Bend a stiff wire (a lightweight coat hanger works well) into a small hook, then run the hook through the burner tube and inside the burner several times to remove any debris.

  • Page 47: Frequently Asked Questions

    “Purge Air from the Gas Line/Reset the Regulator” (page 31) for instructions. Can I convert my grill from propane to natural gas? Yes. TYTUS offers a kit to safely convert your propane grill to natural gas. Call TYTUS Customer Support for more information. www.TYTUSgrills.com...
  • Page 48 WARNING: Do not smoke while clearing the gas line. • If an obstruction is suspected in the orifice or gas valves, call the TYTUS Support Center. WARNING: • Always wear protective gloves and safety glasses when cleaning your grill.

  • Page 49: Specifications

    TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Sometimes I hear a humming sound coming from the regulator. What causes this? The humming sound is gas flowing through the regulator. A low volume of sound is normal and will not interfere with the operation of your grill.

  • Page 50: Part Diagrams And Lists

    www.tytusgrills.com...
  • Page 51 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill S0207-01Z Grill box, left side panel S0207-06 Grill box, right side panel S0207-07 Grill box bracket rear panel S0207-08 Cooking rack (secondary) S0207-77 Grill box bracket rear panel S0207-09 Burner bracket...

  • Page 52: Grill Island Parts (Ti-404-Mgg-Lp/Ti-404-M-Lp)

    www.tytusgrills.com...
  • Page 53 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill S0207-01Z Grill box, left side panel S0207-06 Grill box, right side panel S0207-07 Grill box bracket rear panel S0207-08 Cooking rack/secondary S0207-77 Grill box bracket rear panel S0207-09 Burner bracket S0207-104...
  • Page 54 www.tytusgrills.com...
  • Page 55 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Ice bucket lid S0207-72 Ice bucket S0207-69 Ice bucket cap S0207-48 Cabinet side panel (for S0207-59A Cabinet frame, rear S0207-50ZR Cabinet frame, front S0207-50ZF Cabinet shelf, rear S0207-56A Cabinet shelf front...
  • Page 56 www.tytusgrills.com...
  • Page 57 TYTUS 4-Burner Gas Grill & 4-Burner Island Gas Grill Side burner lid S0207-90 Side burner Side burner, right Side burner electrode with wire S0205-119 Side burner body, right Side burner pot support Side burner manifold tube S0207- Locking click S0207-68...

  • Page 58: Warranty

    Warranty Period are determined by TYTUS or a TYTUS authorized customer service provider to be defective in material or workmanship, TYTUS will, at its sole discretion and option: (i) repair the defective part or component at no charge to the original customer, (ii) replace the defective part or component with a...
  • Page 59 States and Canada. All replaced parts and Products, and Products on which a refund is made, become the property of TYTUS. The addition of equipment or features to the Product that are not manufactured or recommended by TYTUS could affect the intended function of the Product, and therefore may void the Warranty. Furthermore, the...
  • Page 60 TYTUS GRILLS, LLC Eden Prairie, MN 55344 www.TYTUSgrills.com Patents: www.TYTUSgrills.com/patents © 2019 TYTUS GRILLS, LLC. All Rights Reserved Designed in the USA Responsibly Made in China 19-0238...
