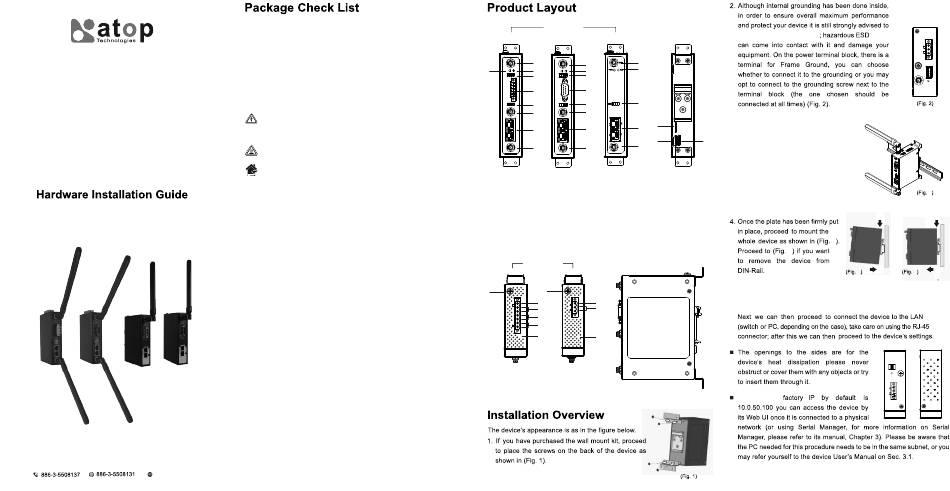

Atop CR5201B Series Hardware Installation Manual

Lte cat.1 low power iot gateway, lte cat 1 low power iot protocol gateway, industrial lte cat.m1 cellular gateway
Hide thumbs Also See for CR5201B Series:

Advertisement

Quick Links

ATOP Technologies, Inc.
LTE Cat.1 Low Power IoT Gateway
LTE Cat 1 Low Power IoT Protocol Gateway
Industrial LTE Cat.M1 Cellular Gateway
SE5201B-C1/ SE5201B-M1/
PG5201B-C1/ CR5201B Series
Version V1.1
Updated in Mar, 2024
atoponline.com
P/N : 89900648G
Inside the package you will find the following items:
 LTE Cat.1 Low Power IoT Gateway x1
LTE Cat 1 Low Power IoT Protocol Gateway x1
Industrial LTE Cat.M1 Cellular Gateway x1
 5-Pin 3.81mm Lockable Terminal Block
(TB version only) x 1
 7 Pin 5.08mm Lockable Terminal Block x 1
 DIN-Rail Kit (Already mounted to the device) x 1
 Installation Guide with Warranty Card x 1
Never install or work on electrical or cabling during periods of
lightning activity.
Never connect or disconnect power when hazardous gases
are present.
Warning:Hot Surface Do Not Touch.
This equipment should be installed indoor and not connect directly
with equipment installed outdoor.
I n d o o r
I n d o o r
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that maycause undesired operation.
Notice:
Any changes or modifications not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digitaldevice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not nstalled and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
The antenna(s) used for this transmitter must not be co-located of operating in
conjunction with any other antenna or transmitter.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment. Ln order to avoid the possibility of exceeding the
Fcc radio frequency exposure limits, human proximity to the antenna shall not
be less than 20cm (8inches) during normal operation.
Front View
Back View
CR5201B
TB5
DB9
1
1
1
3
2
3
3
4-7
4-7
8
9
10
10
10
11
11
14
12
12
12
15
13
13
13
1. SMA Connector for LTE Antenna
11. SMA Connector for GNSS Antenna
(M1 version only)
2. PWR LED 3. RUN LED
12. 2 x 10/100 BaseT(X) RJ-45
4. DI LED
5. DO LED
13. SMA Connector for LTE Antenna
6. TX LED
7. RX LED
(M1 version only)
8. 5-Pin RS232/485 Terminal Block
14. Micro SD slo
9. 9-Pin Male RS232/485 D-Sub
15. SIM1 slot
Connector
16. SIM2 slot
10. LTE Signal LED
Side View
TOP View
1
1
2
2
3
3
4
5
6
6
1. Grounding Screw
4. Relay Output
2. Frame Ground
5. Digital Input
3. Power Input
6. Reset Button
Wall Mount Screw:
Screw Type: M4 / Screw depth: 6mm(Max.) / Screw Qty: 4 PCS
ground the device properly
3. Proceed then to fix the antennas to the
female RP-SMA connectors deemed to
16
(Fig. 3). You can then choose whether
to plug in the I/O ports at this point or do
it later depending on the actual location
of the device or level of comfort for
performing such operation.
1
4
5
2
4
Din Rail Screw:
Screw Type: M3 / Screw depth: 6mm(Max.) / Screw Qty: 3 PCS
5.
The device's
3
1
2
5
