Atop MB5404D-X Series Hardware Installation Manual

Technologies
Atop Technologies, Inc.
Industrial Modbus Gateway
MB5404D-X Series
Hardware Installation Guide
Version 1.2
Updated in March, 2014
Tel: 886-3-5508137
Fax: 886-3-5508131
www.atop.com.tw
P/N: 89900429G

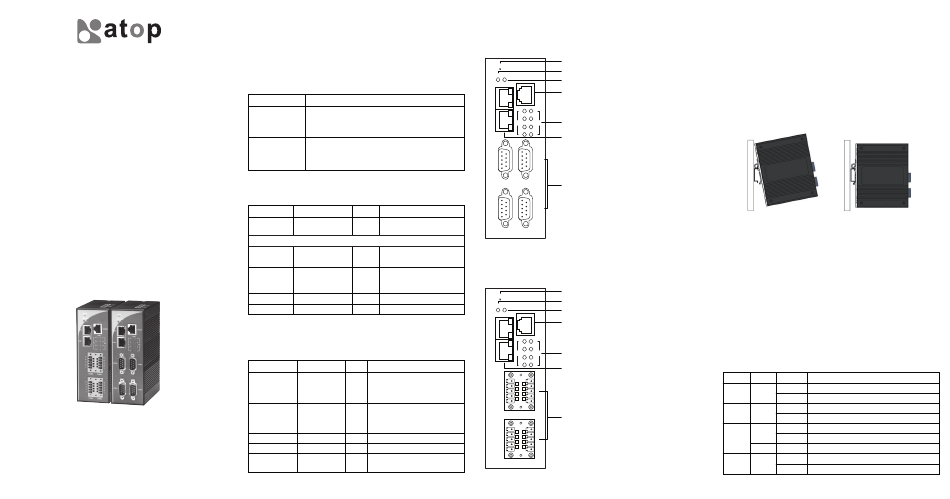

Introduction

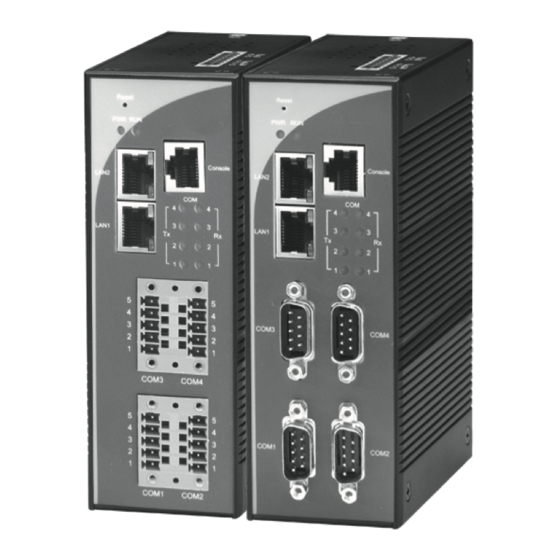

Thank you for choosing the MB5404D-X Atop Industrial Modbus
Gateway Series. The MB5404D-X Series with 4 serial ports is designed
to transfer data between Modbus TCP and Modbus RTU/ASCII protocol;
it can also serve as an Ethernet master to control serial slaves, or as a
serial master to control Ethernet slaves.
Model Description
4-port Modbus Gateway with dual LAN,
MB5404D-X RS-232/422/485 software selectable with DB9
connectors, DIN-Rail type
4-port Modbus Gateway with dual LAN,
MB5404D-Sis-X RS-422/485 software selectable with isolation TB5
lockable connectors, DIN-Rail type

Inside the Package

Item Atop P/N Description
Amount
MB5404D-X
1 Modbus Gateway
Series

Standard Accessories

Hardware Installation Guide
Installation Guide 89900429G 1
(Warranty card is included)
Product CD
CD 89890124 1 (Information on the product
as well as software)
Terminal Block 1 7-Pin, 2ESDVM-07P
50707741G
Terminal Block 5-Pin, EC381VM-05P
50706091G 4
Note: 5-Pin Terminal Block only for MB5404D-Sis-X

Optional Accessories

Item Atop P/N Description
Amount
Y-Type (BT1-10V) power adaptor,
Power Adapter
50500151120009G 1 100-240VAC input,
1.25A @ 12VDC output, US plug
Y-Type (BT1-10V) power adaptor,
Power Adapter 50500151120019G 1 100-240VAC input,
1.25A @ 12VDC output, EU plug
Wall Mount Kit 2 Metal Wall Mount Kit, Black
202EH731000003G
DIN-Rail Kit 1 Conductive DIN-Rail Kit,Silver
201EH731000005G
120mm Copper Woven Grounding
Grounding Cable
59906861G 1
Cable

Product Description

MB5404D-X(RS-232/422/485 DB9 without isolation)
1. Reset
Reset
2. Green: PWR LED
PWR RUN
3. Green: RUN LED
4. Console Port
Console
LAN2
COM
4 4
3
3
LAN1 5. Green: COM LED
Tx Rx
2 2
1 1
6. LAN Port: Ethernet RJ-45 10/100 Mbps
COM3 COM4
7. COM Port: COM1~COM4 DB9 for MB5404D-X
COM1 COM2
MB5404D-Sis-X(RS-422/485 TB5 with isolation)
1. Reset
Reset
2. Green: PWR LED
PWR RUN
3. Green: RUN LED
4. Console Port
Console
LAN2
COM
4 4
3 3
LAN1 5. Green: COM LED
Tx Rx
2 2
1 1 6. LAN Port: Ethernet RJ-45 10/100 Mbps
5 5
4 4
3 3
2 2
1 1
COM3 COM4
7. COM Port: COM1~COM4 TB5 for MB5404D-Sis-X
5 5
4 4
3 3
2 2
1 1
COM1 COM2

Hardware Installation

1. On the power terminal block, there is a terminal for Frame Ground, you can
choose whether to connect it to the grounding or you may opt to connect to
the grounding screw next to the terminal block. It is required to connect either
of the grounds at all times to ensure overall maximum performance.
2. You can then choose whether to plug in the I/O ports at this point or do it later,
also the ends have to be fixed with its screws.
3. Reconfirm that the DIN-Rail has been mounted firmly on the rail. Tilt the
device slightly (Fig. 1) to fix it on the DIN-Rail (Fig. 2).
(Fig. 1) (Fig. 2)
4. Next we can then proceed to connect the device to the LAN (switch or PC),
take care on using the RJ-45 connector; after this we can then proceed to the
device's settings.
■ The openings to the sides are for the devices heat dissipation. Please never
obstruct or cover them with any objects.
■ MB5404D-X Series' factory IP by default is 10.0.50.100. You can access the
device by its WebUI once it is connected to a physical network (or use Device
View). Please be aware that the PC needed for this procedure needs to be in
the same subnet. For more setup information, please refer to the device's
manual.

MB5404D-X Series LED Indicators

Name Color Status Description
Off System is not powered on
PWR Green
On System is powered on
Off System is not ready or halt
RUN Green
Blinking AP firmware is running normally
Off Ethernet is disconnected
Green
LAN Blinking Data is transmitting at 100Mbps on this port
Orange Blinking Data is transmitting at 10Mbps on this port
Off No data is transmitting
COM Green
Data is transmitting on COM port
Blinking
