Atop SE5201 Series Hardware Installation Manual

Industrial Serial Device Sever
Industrial Modbus Gateway
SE5201 / MB5201 / SE5201C / MB5201C Series
Version 1.1
Updated in January, 2019
Tel: 886-3-5508137
Fax: 886-3-5508131
www.atop.com.tw
P/N : 89900532G

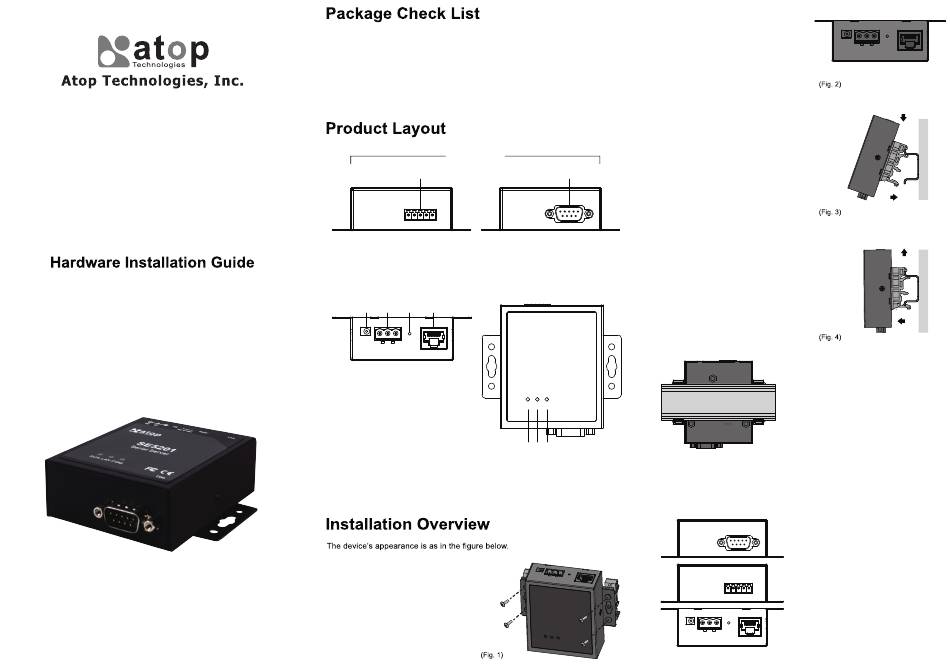

Inside the package you will find the following items:
■ Industrial Serial Device Sever x 1
■ 3-Pin Terminal Block x 1 or 5-Pin Terminal Block x 1 (Depend on model)
■ Wall mount screws x 2
■ Installation Guide with Warranty Card x 1
Front View
1
1. COM Port - Terminal Block
Back View
3 4 5 6
FG V- V+
3. DC Jack Power Input
4. Terminal Block Power Input
(SE5201/MB5201 series only)
5. Reset
6. 10/100M LAN port
7. RUN LED
8. LAN LED
9. COM LED
1. If you have purchased the wall mount
kit, proceed to place the screws on the
back of the device as show in (Fig. 1).
2. Although internal grounding has been
done inside, in order to ensure overall
maximum performance and protect
your device, it is still strongly advised
to ground the device properly; hazard-
ous ESD can come into contact and
damage your equipment. On the power
terminal block, there is a terminal for
Frame Ground,
whether to connect it to the grounding
or you may opt to connect to the
grounding screw next to the terminal
block ( the one chosen should be
2
connected at all times ) (Fig. 2)
3. You can then choose whether to plug in
the other peripheral ports at this point
or do it later depending on the actual
location of the device or level of
2. COM Port -DB9
comfort for performing such operation.
4.
Once the plate has been firmly put in
Top View
place, proceed to mount the whole
device as shown in (Fig. 3).Proceed to
(Fig. 4) if you want to remove the
device from DIN-Rail.
RUN LAN COM
7 8 9
■ The opening to the sides are for the device's heat dissipation please never
obstruct or cover them with any objects or try to insert them through it.
FG V- V+
FG V- V+
1
you can choose
2
2
1
5. Next we can then proceed to connect
the device to the LAN (switch or PC,
depending on the case), take care on
using the RJ-45 connector; after this
we can then proceed to the device's
settings
■ The Serial Sever's factory IP by default
is 10.0.50.100 Web UI once it is
connected to a physical network (or
using Management Utility, for more
information on Management Utility,
please refer to its manual). Please be
aware that the PC needed for this
procedure needs to be in the same
subnet, or you may refer yourself to
the device User's Manual.
