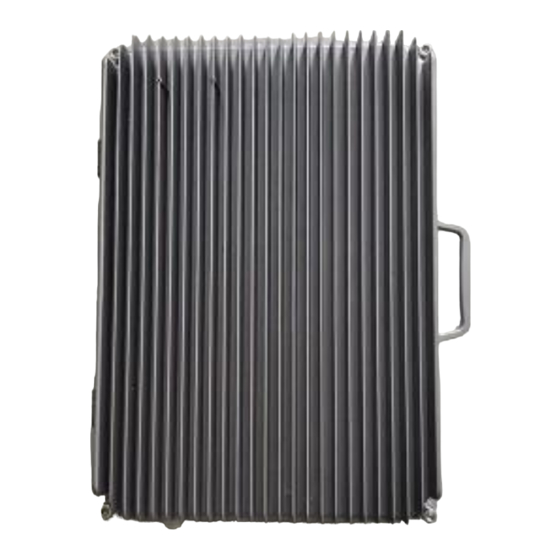

- Page 1 TETRA800 Digital Wireless Repeater Installation Manual (Model: TP-WE-WR-DSL080B220P43Q-UK-MW)
- Page 2 Copyright Notice Our company reserves all rights to this manual. No unit or individual may excerpt or copy part or all of this manual (including the electronic version) without the written permission of the company, or disseminate it in any form. This manual is for reference only.
- Page 3 Signal booster advisory/warning label message: Note: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. WARNING! Use only authorized and approved antennas, cables and/or coupling devices! The use of unapproved antennas, cables or coupling devices could cause damage and may be of violation of FCC regulations.
-
Page 4: Table Of Contents
It is compact and light, it can be installed anywhere, with maximum discretion. Features: ➢ Support TETRA800 Band ➢ Low power consumption ➢ Compact design ➢ Support easy installation, configuration 1.1 Specification... - Page 5 ≤ 1.5 Input VSWR(Power up, Min Gain, Pin=-30dBm) ≤5.0 Ripple In Band (P-P) (dB) at +25℃ ≤ -15 ≤ -15 ± 1MHz offset Out of Band Rejection (dBc) at ≤ -30 ≤ -30 ± 2MHz offset +25℃ ≤ -55 ≤ -55 ±...
-
Page 6: Chassis Appearance
1.2 Chassis Appearance 1.3 Outline Drawing 1.4 Interface Introduction... -
Page 7: Status Indicator
Interface ID Interface Type Function 4.3-10 Female Connect to Donor Antenna 4.3-10 Female Connect to Distributed Antenna System AC120V Power Supply ETHERNET RJ45 Local Monitoring & Configuration 1.5 Status Indicator LED ID LED Description Normal Status Monitor the running Normal: Flash Power Monitor the power supply Normal: Green... -
Page 8: Local Configuration
3. Local Configuration 3.1 Connection for Local Configuration Description Item Remark Indoor Jammer 1 unit Included in packing PC or Laptop 1 unit Prepared by user Device&Tool list Laptop Ethernet Jumper Cable 1 pcs Prepared by user Connection Diagram... -
Page 9: Login Omt
3.2 Login OMT Instructions Set PC/Laptop Local IP address: The same sub-network as Repeater, i.e.: 192.168.0.61 Run “OMT.exe” Click “Import List”, to choose the configuration view file Select file List-English-xxxxxx.e7 to show the configuration view Note: List-English-xxxxxx.e7 is under the folder “List”... -
Page 10: User Interface Introduction
Do the following setting: Communication Mode: UDP Time Out: 5 Local Host IP: Local IP Address of PC/Laptop Local Host Port: 20000 Device Port: 192.168.0.200 Device Port: 10000 Do the connection setting here Click button “Open Serial”, and then click button “Test Link” Click button “Connect”... - Page 11 Comba CMS Server IP address Comba CMS Server IP Network Comba CMS login setting • CMS server IP • CMS server IP Port Choose “New site report” under “Reported class”, to active device on Comba CMS New site report setting, to...
-
Page 12: Common Problems And Solutions
Write the value here Set Param Allow user to set the device parameters, including: RF switch, DL & UL attenuation, related alarm thresholds, etc. Click here after writing the value above Sampling Data Allow user to read the related parameters of the device in real time, such as: Power amplifier temperature, input/output power of DL &... - Page 13 High uplink noise floor affects base Adjust uplink gain; Confirm that the correct coupler is station operation selected Strong interference source nearby Eliminate sources of interference Device stops working Return the device to normal operation Use a small antenna to connect the MODEM's antenna MODEM is not working properly externally to test whether it can communicate normally.
