Summary of Contents for TEINNOVA cleanfy eon

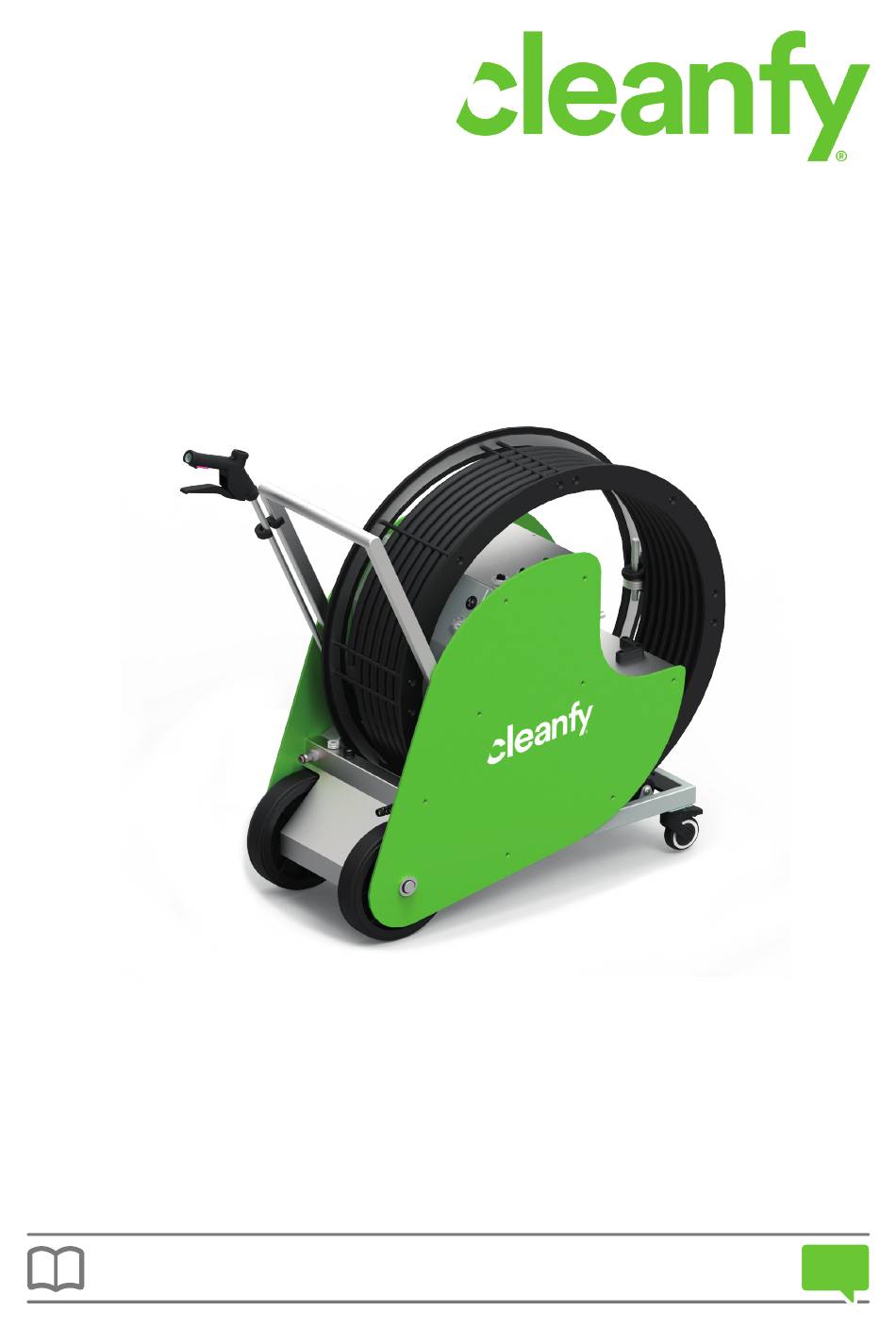

- Page 1 Brushing machine with active foam generator user manual manual original...
-
Page 2: Technical Service
Dear Client: Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and comprehensive quality assurance measures. We strive to do everything we can to make sure you are satisfied with this product and can work with it without problems. - Page 3 contents symbols used 5-31 safety warnings 6-31 conditions of use 7-31 know your machine 8-31 control panel 9-31 remote control 10-31 accessories and related equipment 11-31 operating instructions 14-31 use of chemical products 24-31 3-31 Brushing machine with active foam generator...
- Page 4 contents transport 25-31 maintenance and care 26-31 waste management 27-31 troubleshooting guide 28-31 technical specifications 29-31 guarantee conditions 30-31 declaration of onformity “CE” 31-31 4-31 Brushing machine with active foam generator...
-
Page 5: Symbols Used
symbols used All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. DANGER! This symbol warns you of a potentially dangerous situation which could result in serious injury or even death if the instructions given are not followed... -
Page 6: Safety Warnings
Do not open the equipment nor handle any of its internal parts. In the event of a fault, please contact TEINNOVA Technical Assistance Service on +34 941 44 50 56. 6-31 Brushing machine with active foam generator... -
Page 7: Conditions Of Use
Never place the EON equipment void the warranty and may cause in a horizontal position under any irreparable damage to your circumstances, as this will cause the TEINNOVA equipment. machine to malfunction. Brushing machine and active foam generator Low pressure... -
Page 8: Know Your Machine
know your machine Components: 1- Transport handle 7- Hose reel 2- Lance 8- Nozzle holder 3- Control panel 9- Mains water intake 4- Combined hose connector 10- Power cable 5- Chemical compartment 11- Rear wheels 6- Front wheels 8-31 Brushing machine with active foam generator... -
Page 9: Main Control Panel
control panel Main control panel: Foam or rinse Activates the foaming or rinsing system. selector Emergency stop Stops the machine operating. button Sets the brush rotation direction. Rotation selector counter-clockwise / clockwise Green led The green light will stay on throughout the work showing that the water intake temperature is correct Red led The red light will only come on when the water inlet tem-... -
Page 10: Remote Control Panel
remote control Remote control panel: Foam Starts and stops foaming. This function can be used with either the combined hose or the lance. Rinse Starts and stops rinsing. This function can be used with either the combined hose or the lance. Rotate Starts and stops counter-clockwise rotation of the brush. -
Page 11: Optional Accessories
accessories and related equipment Optional accessories: Combined brushing/foam-rinse hose 15 metre hose for the foaming/rinsing and brushing operations of your EON. Connections to the machine are made using individual quick connectors. Code AC3101212 Brushing hose 15 metre hose with specific quick connector for brushing with your EON. Code AC3101203 EON foam kit Kit consisting of 60 cm lance, pistol grip, 8 metre liquid hose and... - Page 12 accessories and related equipment Optional accessories: Adapter for square taps Adapter for connecting the EON mains water hose to square taps. Code AC6200003 ZEROGRAS degreaser 10 kg Concentrated degreaser that dissolves grease and disinfects ducts. Code PQ8100121 COMEGRAS degreaser 10 kg Ultra-concentrated degreaser that dissolves grease and disinfects ducts.
- Page 13 accessories and related equipment Optional accessories: Remote control Wrist-held remote control that allows the equipment to be operated by a single operator and to change the function while the work is being carried out. Code AC3303125 13-31 Brushing machine with active foam generator...
-
Page 14: Connection To Mains Power
operating instructions Steps for the correct installation of the EON: Placement of your EON: Position your EON on a flat and stable surface. Once the machine has been placed in an optimum position for working, apply the brakes on the front wheels so that it remains stable. Connection to mains power: The connection is done using an electric cable built into the equipment. - Page 15 operating instructions Combined brushing hose connection: The EON device can be used with a combined hose for simultaneous brushing and foaming/rinsing. ¡CLIC! The connection is done using a quick connector for the flexible shaft part and another quick connector for the liquid outlet fitting.
- Page 16 operating instructions Degreaser connection: Replace the container cap with the special cap with a suction hose that the machine comes with. Place the container in the machine frame and insert the elbow of the chemical suction tube into the cap. Then, connect the quick connector on the other end of the suction tube into the upper quick connector on the machine case.
- Page 17 The head of your EON is designed to allow special brushes to be fitted which allow you to work more efficiently and comfortably. These brushes are supplied only by Teinnova. Fit the first retaining disc as shown in the figure.
-
Page 18: Brush Removal And Replacement
operating instructions Brush removal and replacement: Release the locking knob and remove the second retaining disc as shown in the figure. Remove the brush as shown in the figure. Remove the retaining disc as shown in the figure. For brush replacement, repeat the brush fitting process described above. - Page 19 operating instructions Choosing the function to perform: Your EON has two selectors, with which the functions to be per- formed are selected. The functions that can be performed with your EON are rinsing/foaming and brushing counter-clockwise/clockwise. Both functions can be performed individually or together. Turning the foaming/rinsing selector will set the hydraulic mode to foaming or rinsing.
- Page 20 operating instructions Using the foaming/rinsing function: Once the combined hose is connected to the machine, insert the machine head of the machine with the appropriate brush fitted. Once inside, turn the selector left or right depending on the function you wish to use. To use the foaming and rinsing functions with the remote control, you must position the machine selector in the STOP position and press both the key button and the chosen function button.
- Page 21 operating instructions Adjusting the brushing speed: Your EON has a potentiometer, with which you can adjust the brush rotation speed. This allows you to adjust your EON to do the work according to the cleaning needs. The last function to be carried out must always be rinsing, to avoid any chemical remaining in the machine’s tubes.
- Page 22 operating instructions Stopping your EON: Once the work is finished, both selector buttons must be set to the central position and the machine can be turned off using the on/off button. Once the machine is off, disconnect the water intake hose. Disconnect your EON from the mains by unplugging it from the socket and winding the cable around the transport handle.
- Page 23 operating instructions Disconnection of chemical container: If the container is not empty, disconnect the quick connector on the machine’s casing. If the container is empty, replace the bottle, keeping the cap. Hose rewind mode: To rewind the hose onto the hose reel, the following procedure must be followed.
- Page 24 use of chemical products ZEROGRAS and COMEGRAS are the EON’s operating chemicals. They are degreasers particularly suited to cleaning, disinfecting and deodorising especially dirty areas with grease and charred remains from food industry installations and materials such as meat processors, slaughterhouses, restaurants, dairies, etc.
- Page 25 transport The machine has been designed to be transportable in a small van. During transport, the machine must be firmly secured to prevent any damage. Also, it must be placed in its normal (vertical) working position. It is not advisable to place the machine on a pallet or similar. The machine must be on a completely flat and horizontal surface.
-
Page 26: Maintenance And Care
Spare Parts: TEINNOVA stocks spare parts for all the machine’s components as well as consumables for all the mainte- nance tasks shown in this manual. If you need any spare part or consumable, please contact TEINNOVA Customer Service at +34 941 44 50 56. -
Page 27: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 28: Troubleshooting Guide
Water intake pressure too low Make sure there is a mains water intake at Page 14 more than 2 bar. Incorrect chemical dosage Contact Teinnova technical service. Page 26 The internal pump does not work Contact Teinnova technical service. Page 26... -
Page 29: Technical Specifications
technical specifications Specifications 220V / 50Hz 110V / 60Hz Hydraulic power: Min. Pressure 2 bar Min. Pressure 29 psi Max output pressure: 8 Bar // 116 psi Control: 3-position selector and potentiometer Connections: Quick connectors Body material: Stainless steel and HDPE Motor power: 0,35 kW // 0,5 HP 0 - 600 rpm... -
Page 30: Guarantee Conditions
TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to the equipment without prior notice. 30-31 Brushing machine with active foam generator... - Page 31 Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility, as amended.
