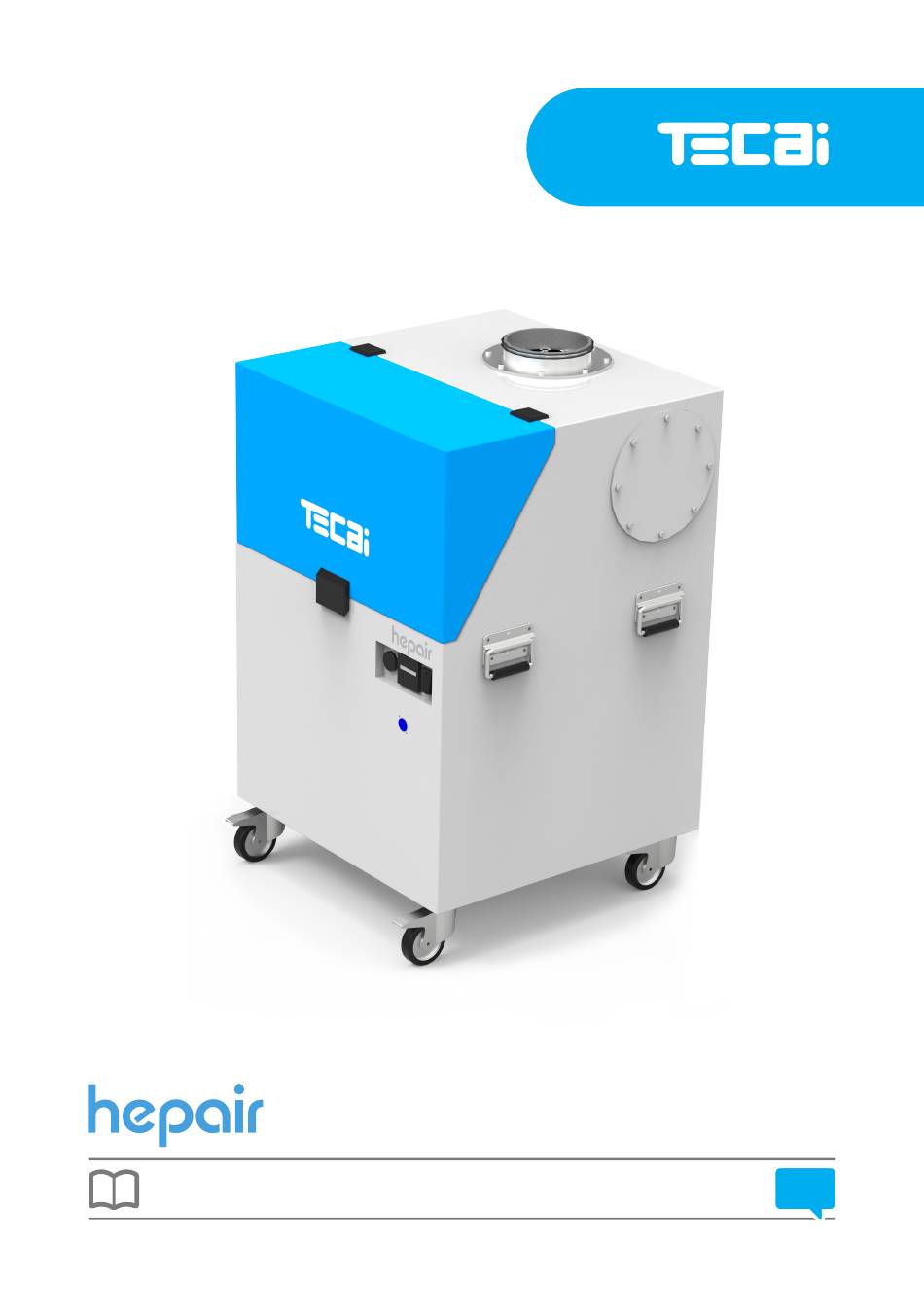

- Page 1 Suction equipment user manual 1-22 Original manual translation...
-
Page 2: Training Services
Dear client: Many thanks for having placed your trust in a quality product from TEINNOVA. This product has been developed with modern manufacturing procedures and a range of measures in order to guarantee quality. We endeavor to do everything possible so that you are satisfied with this product and can work with it without any problems. - Page 3 index symbols 5-22 safety warnings 6-22 intended conditions of use 7-22 get to know your machine 8-22 accessories and related equipment 9-22 operating instructions 10-22 transport 14-22 maintenance and care 15-22 waste management 19-22 Suction equipment 3-22...
- Page 4 index technical specifications 20-22 conditions of the guarantee 21-22 declaration of agreement “CE” 22-22 Suction equipment 4-22...
- Page 5 symbols All of the graphic symbols shown in this manual as well as those indicated on the equipment itself are explained in this section. It is important to read the text relating to these symbols with special care as it concerns personal and equipment safety.
-
Page 6: Safety Warnings
In the event of obstruction in the aspiration hose or in any part of the machine, turn it off immediately. Be sure to place your HEPAIR 2000 on a flat and stable surface. Block the wheel brakes to ensure the machine remains stable while working. -
Page 7: Intended Conditions Of Use
The HEPAIR 2000 machine has been designed and manufactured for aspiration in air conditioning ducts, and should not be employed for any other type of use. It has a 5 metre hose which with telescopic supports can adapt to different duct heights. - Page 8 get to know your Components: 1- G4 Filter 8- Wheels 2- M5 Prefilter 9- Switch ON/OFF 3- F9 Main filter 10- Transport handle 4- Noise indicator 11- Lateral connection for aspiration hose 5- Time meter 12- Connection for aspiration hose 6- Power supply 13- Maintenance cover 7- Wheel brake...
-
Page 9: Optional Accessories
PVC suction hose used to connect your HEPAIR the duct to be cleaned. Cod. AC3101308 Pre-filter G4 Special filter for efficient and quality work with your HEPAIR 2000 (10 pieces). Cod. AC3101305 Bag filter M5 Special filter for efficient and quality work with your HEPAIR 2000. - Page 10 Steps to install the IFOAM correctly: Placing your HEPAIR 2000: Put your HEPAIR 2000 on a flat, stable surface. Put the machine near a power outlet. Once the machine at an optimal site for job performance brakes lock the front wheels so that the machine is stable.
- Page 11 Placing the adaptation module to the conduit with two struts as shown in the figure. Suction hose connection to HEPAIR 2000: The connection is pressurized by fitting the edges of the hose in the suction connection of the machine at the top as shown in the figure.
- Page 12 operating instructions Connecting to mains electricity: The connection will be made by means of an electrical conn- nection cable that comes with the machine. This cable features a mains electricity connector and an electrical supply connector (blue) especially for the machine. Connect the cable to the mains electricity and then connect it to your HEPAIR.
- Page 13 operating instructions Turning off your HEPAIR: To turn off the machine must press the power switch ON / OFF as shown in the figure. Disconnect the machine from the mains via the power cable and then disconnect it from its HEPAIR. Disconnection is carried out with a clockwise rotation of the blue connector as shown in the figure.
- Page 14 The machine has been designed to be able to transport it in a small van. Your HEPAIR 2000 has lateral handles for its handling and transportation The machine can only be transported in its working position (vertical). The machine must be firmly secured to the vehicle’s chassis in order to avoid impacts and sliding during its transportation.
-
Page 15: Maintenance And Care
maintenance and care Keep the machine as clean as possible. Keep the equipment somewhere that is protected from weather effects. Replace or clean the filters after prolonged use. It is advisable to change the filters every 1000 hours of service. Clean the machine after each job in order to maintain it in perfect condition. Put the lid of the machine if it is not In the event of an acoustic signal, check going to be used for a time as well as... - Page 16 maintenance and care Maintenance: Changing filters: If the filters are saturated and need to be replaced or it shall proceed in the manner shown acontinuación provided with the machine switched off and unplugged. Turn off the machine by pressing the power switch ON / OFF as shown in the figure.
- Page 17 maintenance and care Remove the filter behavior as shown in Fig. If it is not enough to clean it should be replaced with new ones. Poor filter will cause a rise in electricity consumption of your machine and will be a decrease in efficiency.
-
Page 18: Replacement Parts
Replacement parts: TEINNOVA has replacements for all parts of the machine as well as for consumables for all the maintenance tasks mentioned in this manual. In the event of needing any part or consumable, get in touch with TEINNOVA’s Customer Service Department on telephone number: +34 941 44 50 56. -
Page 19: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 20: Technical Specifications
Features HEPAIR 2000 220V / 50Hz 110V / 60Hz Maximum vacuum volume 2000 m /h // 1177,2 cfm Maximum depression 2500 Pa // 0,36 psi Work point 1600 m /h a 1800 Pa 941,7 cfm a 0,26 psi... -
Page 21: Conditions Of The Guarantee
1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), España. TEINNOVA reserves the right to make changes to the equipment without giving prior notice. Suction equipment 21-22... - Page 22 “CE” MODEL: HEPAIR 2000 SERIAL NUMBER: TC31302010000 - TC31302019999 MANUFACTURER INFORMATION: Manufacturer name: tecai innova s Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies...
