Summary of Contents for TEINNOVA TECAI hepair 6000

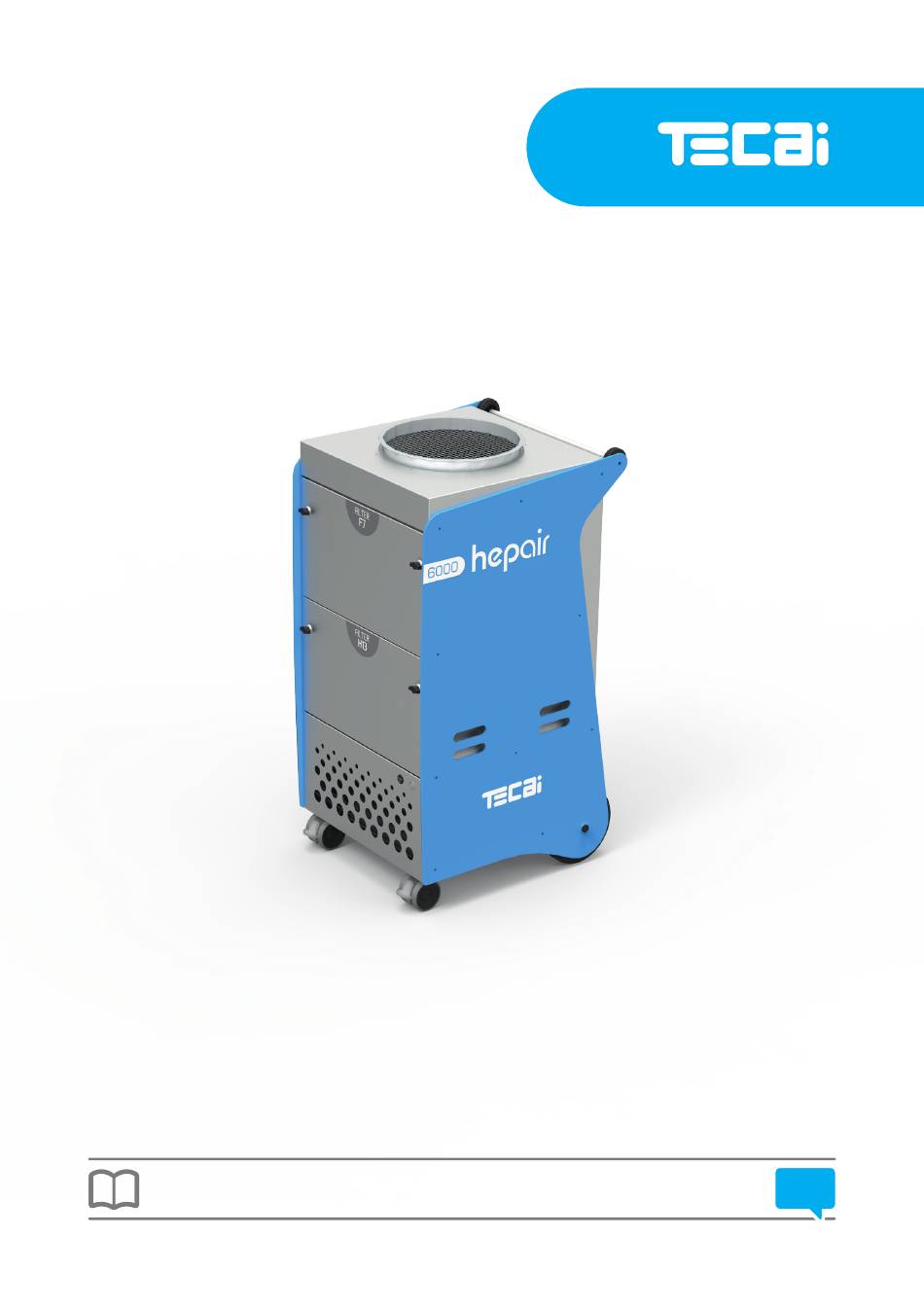

- Page 1 hepair 6000 Suction equipment user manual original manual translation...
- Page 2 Dear Client: Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and thorough quality assurance measures. We strive to do everything we can to make sure you are satisfied with this product and can work with it without problems.
- Page 3 contents symbols used 5-23 safety warnings 6-23 conditions of use 7-23 know your machine 8-23 accessories and related equipment 9-23 operating instructions 11-23 transport 15-23 maintenance and care 16-23 hepair 6000 Suction equipment...
- Page 4 contents waste management 20-23 technical specifications 21-23 guarantee conditions 22-23 declaration of conformity “CE” 23-23 hepair 6000 Suction equipment...
-
Page 5: Symbols Used
symbols used All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. -
Page 6: Safety Warnings
Everybody who uses the HEPAIR 6000 equipment must be properly trained. Do not open the control box of your HEPAIR 6000 suction equipment. In the event of a fault, please contact TEINNOVA Technical Assistance Service on +34 941 44 50 56. hepair 6000... -
Page 7: Conditions Of Use
conditions of use The HEPAIR 6000 has been designed and manufactured for the suctioning of air conditioning ducts and should not be used in other types of ducts. It has a 5 metre long hose that, by means of telescopic supports, can be adapted to different duct heights. -
Page 8: Know Your Machine
know your machine Components: 1- Main Filter H13 7- Wheel 2- Pre-filter F7 8- ON/OFF switch 3- Air expulsion grill 9- Transport handle 4- Acoustic indicator 10- Wheels for horizontal use 5- Mains supply connection 11- Connection for suction hose Ø400 6- Wheel with brake 12- Lifting handles 13- 1/4 turn cover closure... -
Page 9: Optional Accessories
accessories and related equipment Optional accessories: Rigid Ø400 duct adapter module Adapter module between the HEPAIR 6000 and the duct to be suctioned. Code 110HEP015 Rigid Ø300 duct adapter module Adapter module between the HEPAIR 6000 and the duct to be suctioned. Code 110HEP016 Quick-close clamp Ø400 Quick-close clamp for secure attachment of the suction hose to the... - Page 10 accessories and related equipment Optional accessories: Pre-filter F7 High capacity filter with F7 classification. Frame made of ABS. Code AC3101316 Filter H13 High capacity filter with HEPA H13 classification. Frame made of polypropylene and ABS. Efficiency > 99.95%. Code AC3101317 Tube 5 m long Ø400 Flexible tube made of plasticised PVC with self-extinguishing textile PVC reinforcement and with a galvanised steel reinforcement spiral.
- Page 11 operating instructions Steps for the correct installation of the HEPAIR 6000: Positioning your HEPAIR 6000: Position your HEPAIR 6000 on a flat and stable surface. Place the machine close to a power socket. Once the machine has been placed in an optimum position for working, apply the brakes on the front wheels so that it remains stable.
- Page 12 operating instructions Connecting the suction hose to the adapter module: Place the other end of the suction sleeve over the mouth of the adaptater module. It should be positioned as shown in the following image. Position the quick-close clamp and tighten it so that the suction hose and suction cleaner are securely joined.
- Page 13 operating instructions Connection to mains power: Power is supplied through the power cable that is comes with the machine. This cable has a mains plug at one end and a special power connector (blue) for the machine at the other end. Connect the cable to the mains and then connect it to your HEPAIR.
- Page 14 operating instructions Turning off your HEPAIR 6000: To turn on the machine, press the ON/OFF switch as shown in the image. Unplug the machine from the mains using the power cable and then disconnect it from your HEPAIR 6000. This is done with a counter-clockwise turn of the blue connector as shown in the figure.
- Page 15 transport The machine has been designed to be transportable in a small van. Your HEPAIR 6000 has side handles for handling and transport. The machine can be transported in a vertical or horizontal position, resting on the wheels built into the handle.
-
Page 16: Maintenance And Care
maintenance and care Keep the machine as clean as possible. Keep the equipment in a place protected from the weather. Replace or clean the filters after prolonged use. Clean the machine after each job to keep it in perfect condition. If there is an acoustic signal, check how full the filters are. -
Page 17: Maintenance Operations
maintenance and care Maintenance operations: Changing the filters: If the filters are full or need to be replaced, proceed as shown below, always with the machine turned off and unplugged. To turn off the machine, press the ON/OFF switch as shown in the image. - Page 18 maintenance and care Remove the filters from their compartment as shown in the image. If cleaning them is not effective, they should be replaced with new ones. A poor filter will lead to an increase in the power used by your machine and will lead to reduction in efficiency.
- Page 19 Spare Parts: TEINNOVA stocks spare parts for all the machine’s components as well as consumables for all the maintenance tasks shown in this manual. If you need any spare part or consumable, please contact TEINNOVA Customer Service at +34 941 44 50 56.
-
Page 20: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 21: Technical Specifications
technical specifications Specifications HEPAIR 6000 220V / 50-60Hz 110V / 50-60Hz Maximum flow 6200 m3/h / 3650 CFM Flow with F7 filter 5350 m3/h / 3150 CFM Flow with H13 filter 4800 m3/h / 2825 CFM Maximum pressure differential 1300 Pa / 0,2 psi Filtering stage 1 Filtering stage 2 Particle capture... -
Page 22: Conditions Of The Guarantee
1). TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA reserves the right to make changes to the equipment without giving prior notice. hepair 6000 Suction equipment... - Page 23 Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
