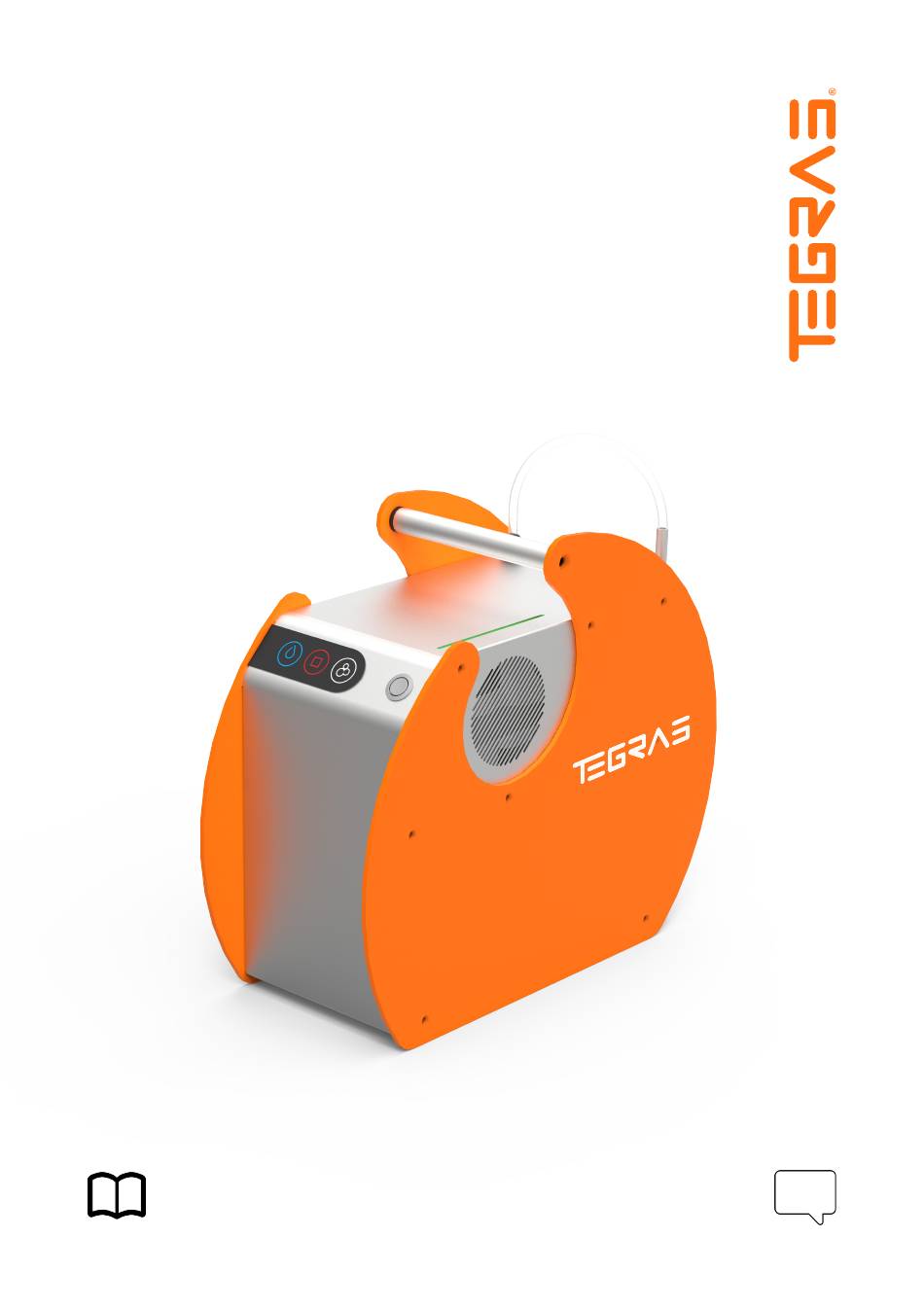

- Page 1 ifoam ifoam compact compact Smart active foam generator user manual original manual translation...
-
Page 2: Technical Service
Dear customer: Thank you very much for placing your trust in a quality product from TEINNOVA. This product is manufactured using modern production processes and extensive quality assurance measures. We try to do everything possible to ensure that you are satisfied with this product and can work with it without any problems. - Page 3 index symbology 5-28 safety warnings 6-28 conditions of use 7-28 know your machine 8-28 control panel 9-28 accessories and related equipment 10-28 operating instructions 12-28 use of chemical products 20-28 ifoam compact ifoam compact Smart active foam generator 3-28...
- Page 4 index transport 23-28 maintenance and care 24-28 waste management 25-28 technical specifications 26-28 warranty conditions 27-28 CE declaration of conformity 28-28 ifoam compact ifoam compact Smart active foam generator 4-28...
- Page 5 symbology All the existing graphic symbols in this manual as well as those indicated on the equipment itself are explained in this section, it is important to read with special attention the text related to this symbology since it is related to personal and equipment safety.
-
Page 6: Safety Warnings
Properly secure the IFOAM in an upright position during transport in a vehicle. Do not open the enclosure of your IFOAM or tamper with any of the internal elements of the equipment. In the event of a fault, please contact TEINNOVA’s Technical Assistance Service on +34 941 44 50 56. ifoam compact... -
Page 7: Conditions Of Use
conditions of use IFOAM is a machine to generate and apply active foam and then rinse with water. It is suitable for work in kitchens and food businesses, as well as for the use of tested aggressive chemicals. It can be used in exhaust ducts and extraction hoods. It can be used in combination with a TEGRAS brushing robot or with a manual lance as shown in the diagram. -
Page 8: Know Your Machine
know your machine Componentes: 1- Carrying handle 7- Resettable fuse 2- LED indicator 8- Power supply hose 3- Control panel 9- Power supply hose support 4- On / off button 10- Chemical suction wand support 5- Active foam output / rinse 11- Chemical suction rod 6- Mains water inlet 12- Chemical inlet... -
Page 9: Control Panel
control panel Main control panel: Rinse button Activates the rinsing system. Stop General shutdown of any system in operation. Foam button Activates the foaming system. General Switch Switching the equipment on and off. LED Strip Indicates machine status. ifoam compact ifoam compact Smart active foam generator 9-28... - Page 10 Ifoam low pressure liquid hose with brushing robot 8 metre hose, with standardised connections, specifically for feeding low pressure liquids to the low pressure lance supplied by Teinnova. The connections correspond to those used in the equipment supplied by TEINNOVA.
- Page 11 accessories and related equipment Optional accessories: Mains water hose reel Hose reel that makes it possible to supply your IFOAM with mains water from a mains socket far away from the cleaning area. The length of the hose is 10 metres. Cod.
- Page 12 accessories and related equipment Adjustable lance Adjustable nozzle for foam injection angle and low-pressure rinsing. Cod. AC3303341 ifoam compact ifoam compact Smart active foam generator 12-28...
- Page 13 accessories and related equipment Related equipment: forte forte Pneumatic brushing robot for duct cleaning. Cod. TG3320349 Electric brushing robot for duct cleaning. Cod. TC3120414 ibrush ibrush Electric brushing robot for duct cleaning. Cod. TC3120630 ifoam compact ifoam compact Smart active foam generator 13-28...
-
Page 14: Mains Connection
operating instructions Steps for a correct installation of your IFOAM: Mains connection: The connection is made by means of an electrical connection cable supplied with the machine. Remove the cable from the bracket and connect it to the mains, making sure that the connector is suitable for the type of socket. Connection to a mains water supply: Connect the hose to a mains water supply with a minimum pressure of 2 bar. - Page 15 operating instructions Chemical connection: Open the cap of the COMEGRAS chemical bottle. Remove the suction rod from your IFOAM and insert it into the chemical bottle. When connecting a new chemical bottle, to speed up the chemical suction and pump priming, activate the foaming option with the water flow closed.
- Page 16 operating instructions Use in low pressure mode: The IFOAM low pressure system can be connected to a foaming and rinsing lance and a Tegras brushing robot. The connection is selected according to the function to be performed. Low pressure lance connection: The low-pressure lance enables the rinsing and foaming function.
- Page 17 operating instructions Use with Tegras brushing robot: This connection is made by means of the low-pressure hose also used with the low-pressure lance. The connection must be made with your IFOAM switched off. Connect the liquid hose to your IFOAM. Connect the liquid hose to the liquid inlet connection of the Tegras brushing machine.
- Page 18 operating instructions Selection of the function to be performed: Switching the equipment on Switch on your IFOAM by pressing the on/off button. The LED strip will turn green in colour, with intensity ramps up and down. The equipment is now ready for use. Activate foaming system The foaming system is activated by pressing the white button.
-
Page 19: Equipment Shutdown
operating instructions Equipment shutdown Press the stop button to end the function being performed by the equipment. The LED strip will turn green, with increasing and decreasing intensi- ty, indicating that the equipment is paused awaiting orders. Switching off the equipment Switch off your IFOAM by pressing the on / off button off button. - Page 20 operating instructions Steps for a correct stop of your Ifoam Disconnection of the chemist: Remove the chemical suction rod from the chemical and place it in the equipment brackets. Close the chemical bottle and store it in a safe place. Disconnection of the lance: Operate the low-pressure lance so that no water, air or chemicals are left in the lines.
- Page 21 operating instructions Disconnection of the liquid hose: Disconnect the liquid hose from your IFOAM. Disconnect the liquid hose from your IFOAM. Disconnect the cable from the mains and store it in the holder for proper storage of the equipment. ifoam compact ifoam compact Smart active foam generator 21-28...
- Page 22 use of chemical products COMEGRAS FOAM ACTIVE is the chemical used for the operation of your IFOAM. It is a degreaser especially indicated for cleaning, sanitising and deodorising areas particularly dirty with grease and burnt residues in installations and materials in the food industry such as meat processing plants, slaughterhouses, restaurants, dairies, etc.
- Page 23 transport The machine is designed to be transported in a small van. During transport, the machine must be securely tied down to prevent any damage. It should also be placed in its normal working position (upright). It is not recommended to place the machine on a transport pallet or similar. The machine must rest on a completely flat and horizontal surface.
-
Page 24: Maintenance And Care
Keep the connection fittings clean, dry and in good condition. Lubricate the fittings at least once a month. Spare parts: TEINNOVA has spare parts for all parts of the machine as well as consumables for all the maintenance tasks indicated in this manual. -
Page 25: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not throw electrical appliances in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recycling process. -
Page 26: Technical Specifications
technical specifications Features ifoam compact ifoam compact 220V / 50 - 60Hz 110V / 50 - 60Hz Maximum power: 325W Maximum outlet pressure: 5,5 bar / 80 psi Control: Three-position selector Connections: Quick connectors Dimensions: 456x522x216 mm 16,95x20,6x8,5 inches Unladen weight: 17 kg / 37,48 lb Structural material: Stainless steel and HDPE plastic... -
Page 27: Warranty Conditions
TECAI INNOVA S.L. C/ Las Balsas 16-B, Pol. Ind. Cantabria. 26009 LOGROÑO (La Rioja), Spain. TEINNOVA se reserva el derecho de introducir cambios en los equipos sin previo aviso. ifoam compact ifoam compact Smart active foam generator... -
Page 28: Ce Declaration Of Conformity
Telephone: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, S.L., with full responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
