Icom IC-705 Installation Manual page 4

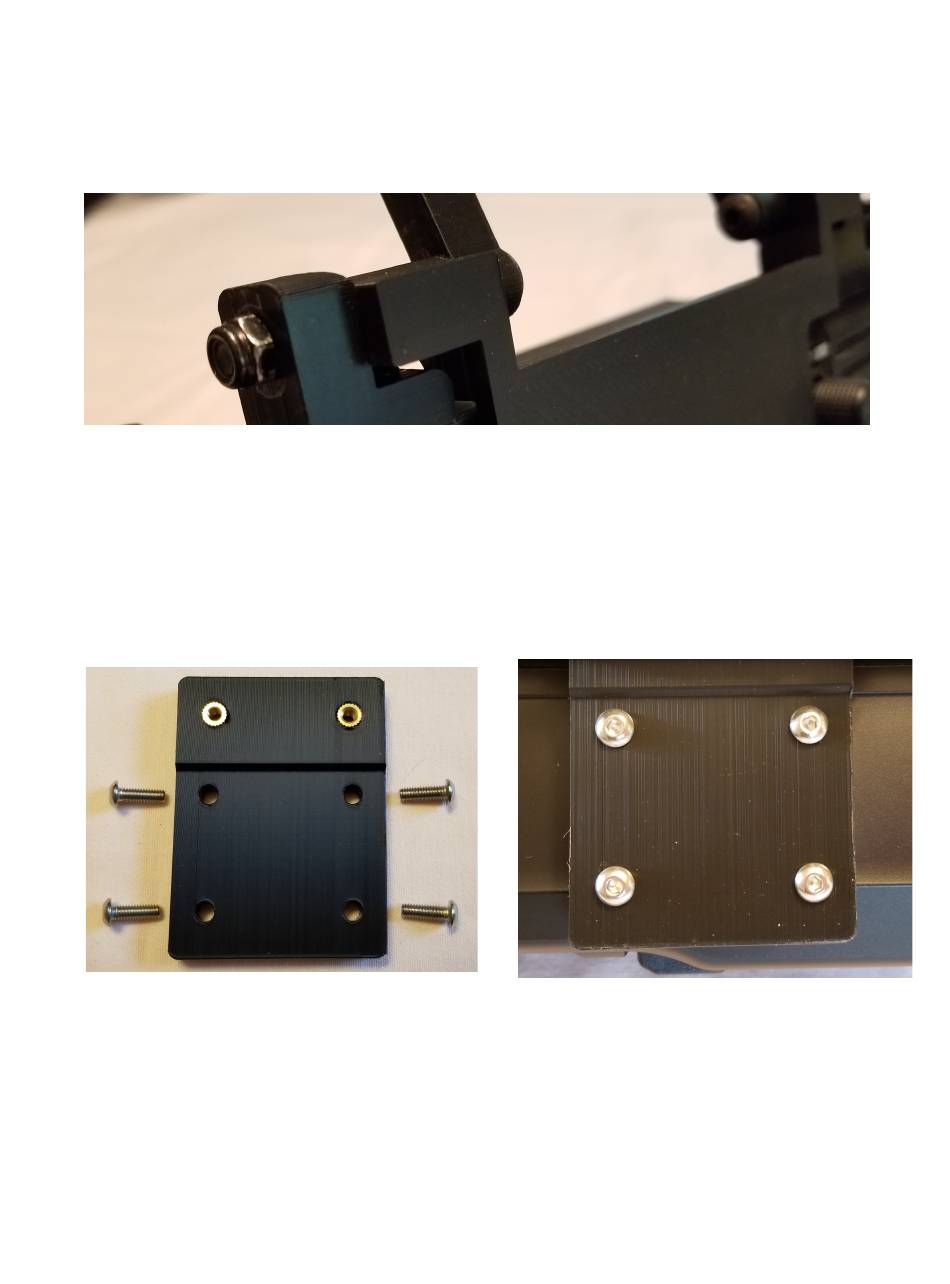

5. Now thread a nylon insert nut onto the protruding screw on each side, and tighten each with a
hex key while holding the nut with an adjustable wrench or socket. The degree of tightness will
affect the ease of motion of the handle and the screen cover. The nuts should be tight enough
that the handle and cover will hold the position you leave them in, but no so tight that they bind
or are difficult to move.
6. Attach the bottom bracket to the radio using 4 M4 x 16mm stainless button head screws. The
front of the bracket is jogged a bit to accommodate the bezel of the radio. When installed
correctly you should see the bright brass inserts facing you. Tighten these screws firmly, but do
not use excessive force.
