Icom IC-705 Paper Tray Installation page 2

Hide thumbs Also See for IC-705:

Assembly Instructions

Please read and review all of the instructions before starting the the installation of the tray on your IC-

705 frame.

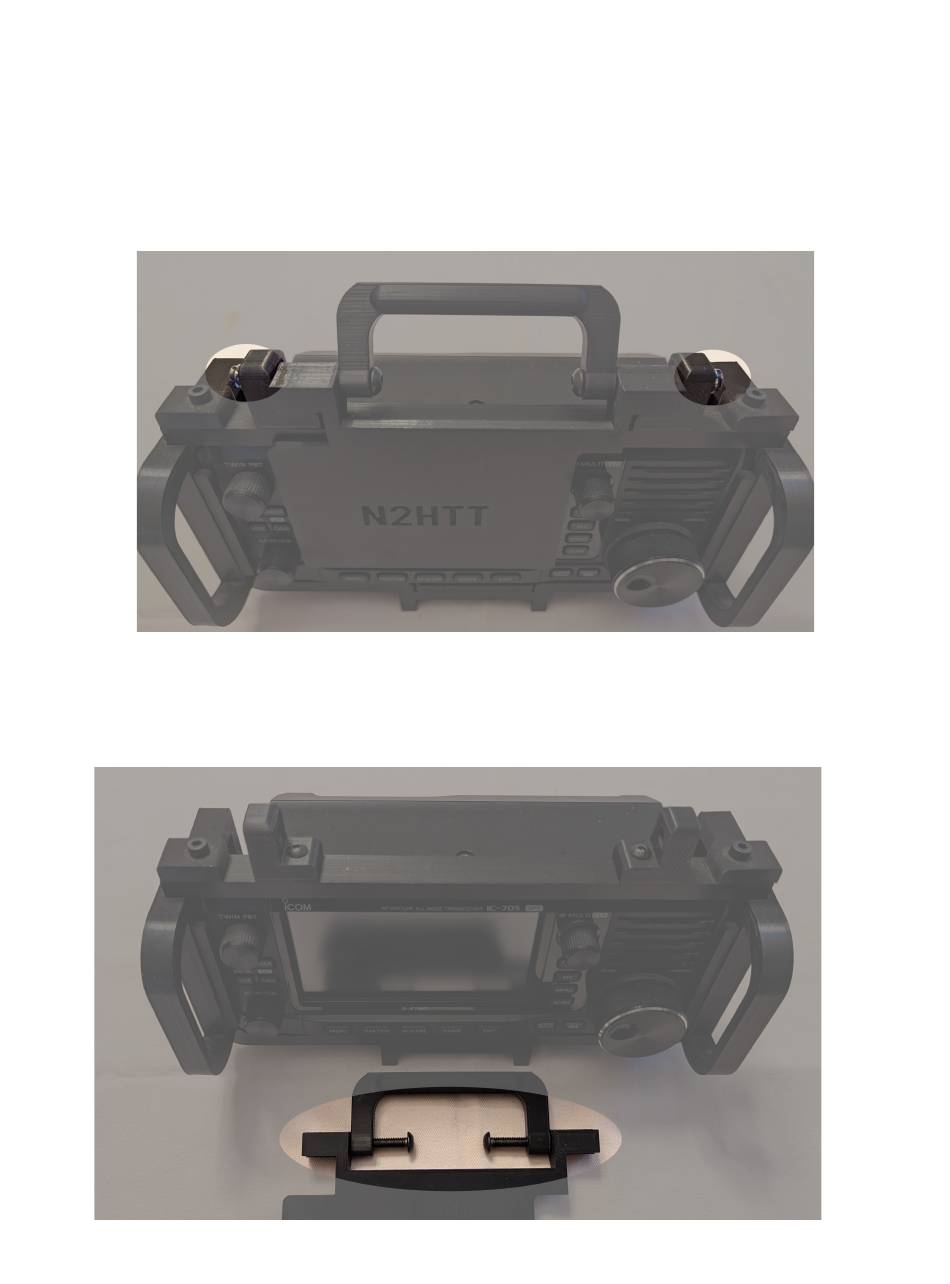

1. Loosen and completely remove the two nylon insert nuts that secure the handle to the frame. Put

these aside, we will use them again when we re-attach the handle.

2. Pull the bolts towards the center to release the handle and screen cover assembly, but don't

completely remove the bolts. Leave them in place to keep the handle and screen cover together.
