VA-SIGNAL W
Septic tank overfill alarm
Advertisement
Table of Contents
Related Manuals for AFRISO VA-SIGNAL W
Summary of Contents for AFRISO VA-SIGNAL W
-
Page 1: Table Of Contents

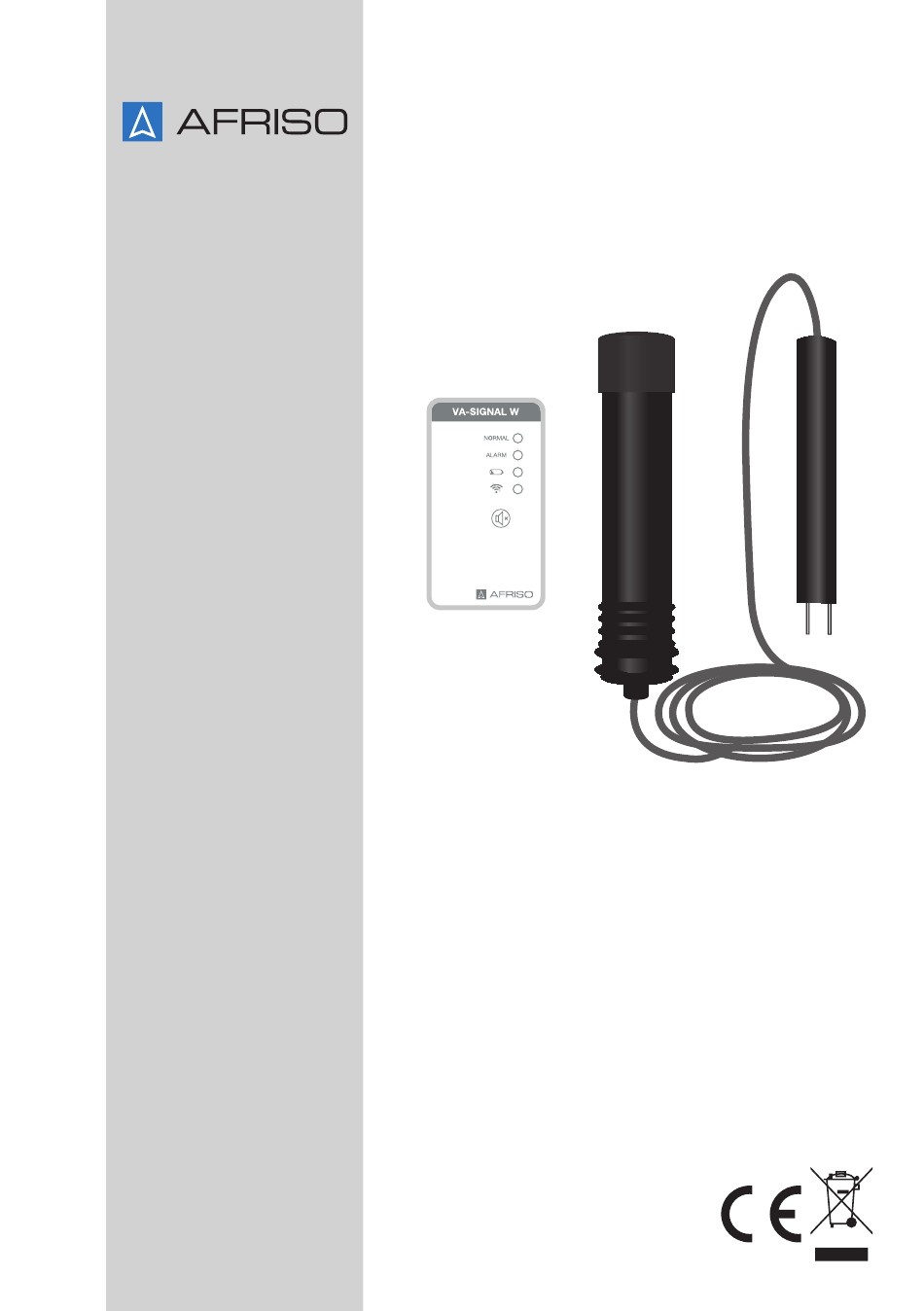

VA-SIGNAL W Septic tank overfill alarm CONTENTS: Safety precautions ..... 2 Components ....... 2 Manual ........3 Checking the unit ....... 4 Installation ........5 Technical data ......7 Manufacturer declaration ... 8 Save this manual for future reference! Afriso Ema AB Kilvägen 2 •... -
Page 2: Safety Precautions
VA-SIGNAL W Septic tank overfill alarm • Manual Safety precautions • Read the installation manual carefully • Do not use with oil or petrol! before installation • If the tank will be embedded, make sure that • Alarm panel must only be installed the sensor can be easily accessed indoors in dry areas. -
Page 3: Manual
VA-SIGNAL W Septic tank overfill alarm • Manual User Manual VA-Signal W is a wireless alarm for (closed) septic cisterns. • Transmitter unit in pipe enclosure with a • Alarm panel for placement on a wall conductive sensor for placement in indoors in a dry area. -
Page 4: Checking The Unit
VA-SIGNAL W Septic tank overfill alarm • Manual Checking the unit Range test Pairing the transmitter and alarm Before installation, a location test must be panel performed to ensure that alarm panel can receive the radio signal from the transmit- The transmitter and alarm panel come ter. -
Page 5: Installation
VA-SIGNAL W Septic tank overfill alarm • Manual Installation technical data can be found on Page 7). Installation must be carried out by compe- Mounting the sensor: tent installer. Route the sensor cable through the gland Mount the alarm panel... - Page 6 VA-SIGNAL W Septic tank overfill alarm • Manual Operation: CAUSE/ERROR ACTION Normal operation/no alarm Normal operation - no action Green LED is solid Alarm (tank full) Order tank emptying! The built-in buzzer sounds with an When the tank is emptied, the Alarm...
-
Page 7: Technical Data
VA-SIGNAL W Septic tank overfill alarm • Manual Technical data: Alarm panel Power supply: 12 V mains adapter or 12 V DC transformer. Relay contact: Closing voltage-free Um 125 V AC, Im 1 A Um 30 V DC, Im 2 A... -
Page 8: Manufacturer Declaration
VA SIGNAL W Septic tank overfill alarm • Manual Afriso Ema AB Kilvägen 2 • SE-232 37 Arlöv • Sweden +46-(0)40-92 20 50 • www.afriso.se...
