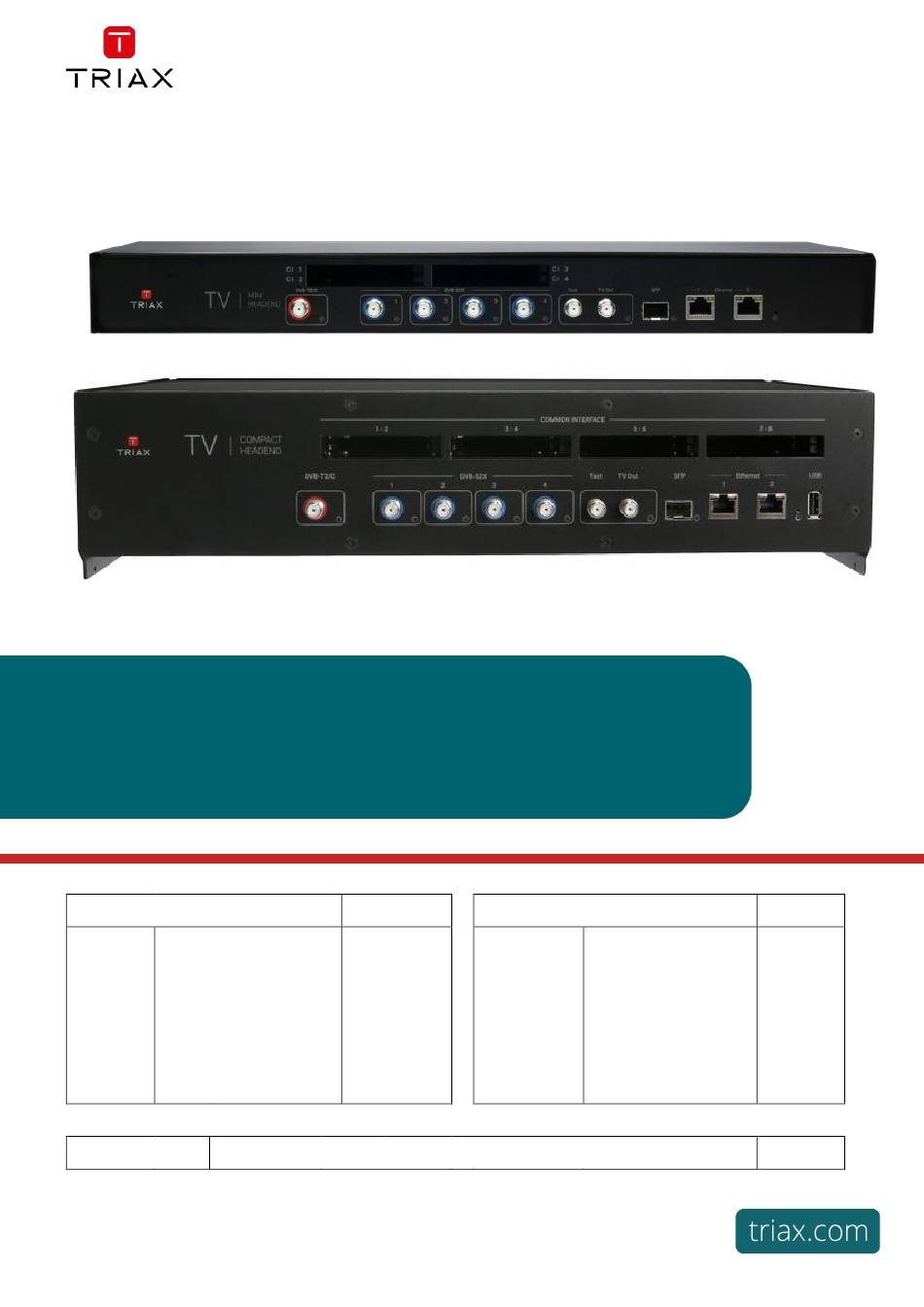

User Manual
TDcH & TDmH – Compact Headend & Mini Headend
Article
TDcH 16S-I-Q
TDcH 16S-I
Compact Headend
TDcH 22STC-I
TDcH 16S-Q
TDcH 16S
Version
V1.7
EN
Article no.
492780
492781
492782
492790
492791
Date
2024-04-18
1
TDcH & TDmH - Compact and Mini Headend
Article
TDmH IP
TDmH 8S
Mini Headend
TDmH 8S-I
TDmH 14STC-I
Article no.
492770
492772
492773
492774
EN
Advertisement
Table of Contents
Related Manuals for Triax TDcH 16S-I-Q
Summary of Contents for Triax TDcH 16S-I-Q
- Page 1 TDcH & TDmH - Compact and Mini Headend User Manual TDcH & TDmH – Compact Headend & Mini Headend Article Article no. Article Article no. 492770 TDcH 16S-I-Q 492780 TDmH IP 492772 TDcH 16S-I 492781 TDmH 8S 492773 Compact Headend...
-
Page 2: Table Of Contents
TDcH & TDmH - Compact and Mini Headend SAFETY REGULATIONS AND NOTES ............................. 5 REVISION HISTORY ................................7 TDCH COMPACT HEADEND & TDMH MINI HEADEND ......................7 ..................................7 NTRODUCTION ..................................8 ESCRIPTION 3.2.1 TDcH variants ................................8 3.2.2 TDmH variants ................................9 3.2.3 Common Features................................ - Page 3 TDcH & TDmH - Compact and Mini Headend 5.3.13 Installer Email and Phone ............................31 5.3.14 SNMP ..................................31 5.3.15 Change Password ..............................31 ................................32 NPUT CONNECTIONS 5.4.1 DVB-T2/C input ................................32 5.4.2 DVB-S2X inputs ................................32 5.4.3 Connections in GUI ..............................32 5.4.4 Description/Alias .................................
- Page 4 TDcH & TDmH - Compact and Mini Headend TERMS AND ABBREVIATIONS ............................80 Contents...
-
Page 5: Safety Regulations And Notes
TDcH & TDmH - Compact and Mini Headend Safety regulations and notes ATTENTION • Failure to comply with the specified precautionary measures may cause serious injury to persons or damage to property. • The assembly, installation, additional electrical wiring, servicing installation and commissioning may only be performed by suitably qualified persons, technicians, or installers in compliance with safety regulations. - Page 6 TDcH & TDmH - Compact and Mini Headend To prevent fire, short circuit or shock hazard • Do not expose the unit to rain or moisture. • Install the unit in a dry location without infiltration or condensation of water. In case of the formation of condensation wait until the system is completely dried.
-
Page 7: Revision History
TDcH Compact Headend & TDmH Mini Headend Introduction TRIAX offers two series of headend variants. The TDcH Compact Headend was the first series introduced in the market. This highly reliable headend series offers many stable features and is flexible in variants and licenses. -
Page 8: Description
[492790] 16 x DVB-S2 tuners 1 x IP (RJ45 or SFP LC duplex) 16 x QAM full band modulators TDcH 16S-I-Q 4 x SAT IF inputs with integrated multiswitch [492780] 16 x DVB-S2X tuners 1 x IP (RJ45 or SFP LC duplex) -
Page 9: Tdmh Variants
TDcH & TDmH - Compact and Mini Headend TDcH 22STC-I Identical to TDcH 22STC-I [492782], but with the option for buying licence for Pro:Idiom Pro:Idiom (LG) ready (LG) scrambling [492788] 3.2.2 TDmH variants TDmH IP 48 x IPTV inputs SPTS and MPTS UDP/RTP [492770] 1 x IP (RJ45 or SFP LC duplex) 8 x QAM or COFDM full band modulators... -
Page 10: Common Features
(all variants with “I” include in the name) configured. 16 x QAM full band modulators EPG management (TDcH 16S-Q, TDcH 16S-I-Q) EPG handling to manage the amount of EPG-data Electronically adjustable output level distributed in an output transponder Suitable for adjacent channels, option for... -
Page 11: Upgrade Features (License Based)
TDcH & TDmH - Compact and Mini Headend 3.2.4 Upgrade Features (license based) IP-out IP-in The IP-out functionality requires an activation The IP-in functionality requires an activation license key. license key. Additional to common features, supported Additional to common features, supported functionalities for IP-out: functionalities for IP-in: Stream up to 100 UDP MPEG-TS multicast... -
Page 12: Technical Data
TDcH & TDmH - Compact and Mini Headend Technical data Type TDcH 16S-Q TDcH 16S TDcH 16S-I-Q TDcH 16S-I TDcH 22STC-I TDmH IP TDmH 8S TDmH 8S-I TDmH 14STC-I Art. number 492790 492491 492780 492781 492782 492770 492772 492773 492774... - Page 13 TDcH & TDmH - Compact and Mini Headend Type TDcH 16S-Q TDcH 16S TDcH 16S-I-Q TDcH 16S-I TDcH 22STC-I TDmH IP TDmH 8S TDmH 8S-I TDmH 14STC-I Art. number 492790 492491 492780 492781 492782 492770 492772 492773 492774 [Pro:Idiom (LG) Ready]...
- Page 14 TDcH & TDmH - Compact and Mini Headend Type TDcH 16S-Q TDcH 16S TDcH 16S-I-Q TDcH 16S-I TDcH 22STC-I TDmH IP TDmH 8S TDmH 8S-I TDmH 14STC-I Art. number 492790 492491 492780 492781 492782 492770 492772 492773 492774 [Pro:Idiom (LG) Ready]...
-
Page 15: Mounting The Unit
TDcH & TDmH - Compact and Mini Headend Mounting the unit Installing the device The TDcH & TDmH can be mounted in a 19” rack or wall mounted in any direction needed. Ensure that the unit is correctly grounded, according to applicable national regulations. Ensure that min. -
Page 16: Example Of Mounting Options For The Tdmh
TDcH & TDmH - Compact and Mini Headend 4.1.2 Example of mounting options for the TDmH The positioning of the TDmH brackets when installing the headend in either a rack or wall mount configuration. The 19” rack mounting is the default position of the brackets, but the installer can change to wall mount installation, by removing the 2*4 screws and turn the brackets, and mount the 2*4 screws again. -
Page 17: Connecting The Device
TDcH & TDmH - Compact and Mini Headend Connecting the device Connect the SAT IF inputs to the corresponding outputs of an LNB or multi switch. Make sure that all inputs have the same level and are in the required level range! Connect the Terr/Cable input to the corresponding output of a terrestrial or cable distribution. -
Page 18: Installation & Easy Setup
TDcH & TDmH - Compact and Mini Headend Installation & Easy Setup Installation 5.1.1 Static IP address A static address must be used on the computer you use to configure the headend. Refer to the computer’s operating software documentation for assistance on using static IP addresses. 5.1.2 Physical connection to headend Connect a Cat5e shielded cable or better between the computer’s network port and the management port on the... -
Page 19: System Status Led
TDcH & TDmH - Compact and Mini Headend 5.1.4 System status LED Input LED indications Below the reset button there is a general system status LED. The following status LED indications are available: Off: The system is turned off Flashing green: The system is starting up Flashing orange (green+red): Software update in progress Steady green:... -
Page 20: Reset Button
TDcH & TDmH - Compact and Mini Headend 5.1.7 Reset button The following Reset functions are available: When the reset button is pressed (during startup) until the LED flashes green, then the system resets to factory defaults. When the reset button is pressed (during startup) until the LED flashes red, then the system starts in recovery mode. -
Page 21: Tdch & Tdmh Web Interface (Gui)
TDcH & TDmH - Compact and Mini Headend TDcH & TDmH web interface (GUI) A. Information window D. Installation wizard function to continue or go B. Navigation bar one step back C. Administrator and Dashboard menu E. Save Configuration When logged in, you will be met by 8 panes: 1. -
Page 22: Error Indication
TDcH & TDmH - Compact and Mini Headend 5.2.1 Error indication If there is an error in any part of the configuration, the user interface indicates this with a symbol in the relevant sector of the navigation menu. In other parts of the user interface the error symbol is also used to indicate an error or configuration failure. - Page 23 TDcH & TDmH - Compact and Mini Headend Note: For the Dashboard, it is not required to log in and to know the password. The entered password can be seen if you press the eye. This Dashboard can be used by hotel employees to see an overview during a failure analysis or report an issue to the installer.
-
Page 24: Channel Status Details
TDcH & TDmH - Compact and Mini Headend 5.2.5 Channel Status Details When you are in the Dashboard mode and click on the error indication on the right side, a Channel Status Details window will pop up. In this window you can find the status over the last 24 hours. The window also shows where the failure has occurred, such as the tuner, CAM or output. -
Page 25: Admin Menu
TDcH & TDmH - Compact and Mini Headend 5.2.7 Admin menu In the Admin Menu you have the option to Export the current configuration, import a configuration file, and clear the configuration. Export Configuration Export the configuration from the TDcH & TDmH system to the download folder on the connected PC. Note: The configuration file is not human readable! Import Configuration... - Page 26 TDcH & TDmH - Compact and Mini Headend Licenses Licenses can be ordered. To order a license the equipment file is needed. After the order process, the user receives a license file which will have to be loaded to the compact Headend the License was generated for.
-
Page 27: Settings
TDcH & TDmH - Compact and Mini Headend Settings Start with the folder “Settings” to set up the general settings and information of the TDcH & TDmH headend. 5.3.1 Ethernet Port 1 (Management Port) Ethernet port 1 interface This is the IP address of the Management port (Ethernet 1) of the compact Headend. -
Page 28: System Reset
TDcH & TDmH - Compact and Mini Headend MAC Address: MAC address of this interface. Status: Green indicates this interface is connected. 5.3.2 System reset The following reset functions are available: 1. Factory defaults: When the reset button is pressed (during start up) and until the LED flashes green, then the system resets to factory defaults. -
Page 29: Device Name
Description field to give the compact Headend or project any name. 5.3.6 Output Modulation The TDcH & TDmH (except TDcH 16S-I-Q and TDcH 16S-Q models) support QAM and COFDM modulation. With this menu it is possible to switch between the QAM and COFDM output modulation. - Page 30 TDcH & TDmH - Compact and Mini Headend System B/G System I System D/K System L System B/G New Zealand Name Centre frequency Name Centre frequency Name Centre frequency Name Centre frequency Name Centre frequency CH26 514,00 CH26 514,00 CH26 514,00 CH26 514,00...
-
Page 31: Language
TDcH & TDmH - Compact and Mini Headend 5.3.8 Language Possibility to change the language of the user interface between English, German and French. 5.3.9 Timezone Click on the “Timezone” field to open the drop down and select the time zone where the compact headend is installed. -
Page 32: Input Connections
TDcH & TDmH - Compact and Mini Headend Input connections 5.4.1 DVB-T2/C input The TDcH 22STC-I and TDmH 14STC-I headends have 1 Terrestrial / Cable input marked with DVB-T2/C and a red colour ring. Note: The Input has an LED indicator. Black (off) indicates no tuners configured to use this input. -
Page 33: Description/Alias
Ku, K, C or SCR (See multi satellite reception) 13/18V for Vertical or Horizontal polarisation LOW/HIGH for the Band Note: The input colour shows the setting following the same colour codes TRIAX uses on LNBs and multi-switches. Yellow: Horizontal, High Band Red: Vertical, High Band Green:... - Page 34 TDcH & TDmH - Compact and Mini Headend When you press the expand button you can open the DiSEqC settings: DiSEqC supports four satellite positions. Please select the desired position if required. Note: Configure DiSEqC to 1/A, 2/B, 3/C or 4/D will result in DiSEqC commands at the DVB-S2X input describing the position.
-
Page 35: Multiple Satellite Reception
TDcH & TDmH - Compact and Mini Headend 5.4.6 Multiple satellite reception To support SCR from the Satellite reception and distribution we recommend to use the following TRIAX products: SCR LNB: 304847 SCR 2 1 SCR out 4 User bands This LNB’s can be directly connected to one of the TDcH &... - Page 36 TDcH & TDmH - Compact and Mini Headend When you press the expand button you can open the SCR and LOF settings: The TDcH & TDmH SCR functionality supports up to 32 User bands per SCR input. The centre frequencies can be entered on the table as shown in the screen shot.
-
Page 37: Rf Inputs
TDcH & TDmH - Compact and Mini Headend RF inputs Click the “Inputs” folder in the Compact Headend Service Tool to display the RF Inputs window. The “Inputs” page shows all RF input tuners. The colour of the tuner number shows the status of each tuner. Grey: Tuner is not used Red: Tuner is not set up correctly or input signal is missing. -
Page 38: Terrestrial And Cable Tuner Setup
TDcH & TDmH - Compact and Mini Headend 5.5.1 Terrestrial and Cable tuner setup Note: This functionality is only available on the Version TDcH 22STC-I and TDmH 14STC-I. To set up a tuner you must follow the following steps: 1. Select the “Demodulation”: To select the required demodulation, click on the demodulation field to open the drop-down list with demodulations you can choose from. - Page 39 TDcH & TDmH - Compact and Mini Headend 2. Enter the desired frequency in MHz in the channel field or select the corresponding channel from the dropdown list: 3. If the tuner is used as DVB-T/T2 then please select the required channel bandwidth and PLP number: 4.
- Page 40 TDcH & TDmH - Compact and Mini Headend 6. Click the “TUNE” button to activate the setting into the headend system: By clicking on the expand button, information details from the selected transponder will be shown: Carrier Noise Ratio: Shows the carrier to noise ratio of the input signal Signal Level: Displays the actual signal level Standard:...
- Page 41 TDcH & TDmH - Compact and Mini Headend To delete the tuner input, press the “Delete x”: A warning will appear:...
-
Page 42: Satellite Tuner Setup
TDcH & TDmH - Compact and Mini Headend 5.5.2 Satellite tuner setup To set up a satellite tuner you must follow the following steps: 1. Select the “Input”: To select the required input / SAT-IF signal, click on the input field to open the drop-down list with the inputs you can choose from. - Page 43 TDcH & TDmH - Compact and Mini Headend 4. If the input source is DVB-S2X Multistream, expand the tuner settings and enter the PLS Mode, PLS Code and Stream ID. 5. If the input source is SCR (Satellite Channel Router) You must select the SCR user band and the Polarisation and Satellite position.
- Page 44 TDcH & TDmH - Compact and Mini Headend 6. If an alternative EIT to the internal EIT in the current transport stream, press expand for the tuner and choose the alternative EIT source: 7. Click the “TUNE” button to activate the setting into the headend system:...
- Page 45 TDcH & TDmH - Compact and Mini Headend By clicking on the expand button, information details from the selected transponder will be shown: Carrier Noise Ratio: Shows the carrier to noise ratio of the input signal Signal Level: Displays the actual signal level Standard: Shows the standard of the input signal Modulation:...
- Page 46 TDcH & TDmH - Compact and Mini Headend To delete the tuner input, press the “Delete x”: A warning will appear:...
-
Page 47: Service List
TDcH & TDmH - Compact and Mini Headend 5.5.3 Service List In the Source field, select the tuner number to see available streams with name, type, SID, TSID and ONID: → sort rising First Click → sort falling Second click at same type Name: Name of the TV or radio service Note:... -
Page 48: Ip Input
Item No.: 492088 SFP Fiber 1310nm EOLS-1324-02XX (2km) 5.6.2 IP-in licenses IP input licenses need to be purchased from TRIAX to be able to receive IP services through the TDcH & TDmH headend system. Required license numbers: Item No.: 418745 TDcH 4 x IP-in streams license Item No.:... -
Page 49: Requirements
Recommended settings are 7 TS packets per IP packet and a minimum MTU of 1500 bytes in the entire network path Licenses for IP output are required to be able to use the IPTV functionality in the headend. The licenses can be purchased from TRIAX Sales, and need to be activated, see: “Activating licenses”. -
Page 50: Configuration In Gui
TDcH & TDmH - Compact and Mini Headend 5.6.4 Configuration in GUI Receive an IP stream by following the steps below: Select the Inputs tab in the panes. Select the IP Input sub-tab. Press the New IP input button for a new IP input option. Specify the desired IP address and associated UDP port number, and if necessary, the Source address in the corresponding fields. - Page 51 TDcH & TDmH - Compact and Mini Headend Previously selected services can be refreshed when pressing the Search/Refresh button Previously selected services can be deleted when pressing the Bin button List of found services On the right hand in the GUI in the Service List you can filter the available services to display only the IP-in services. To highlight/sort the services received via “IP Input”...
-
Page 52: Cam
TDcH & TDmH - Compact and Mini Headend Note: This functionality is not available on the FTA Versions TDcH 16S-Q, TDcH 16S, TDmH IP, and TDmH S8. Click the “CAM” tab in the TDcH & TDmH Service Tool to display the CA Modules and administration window. The first time you display the CAM window in a new configuration the module list only displays the number and type of the CA modules that you have inserted in the TDcH &... -
Page 53: Cam / Smart Card
TDcH & TDmH - Compact and Mini Headend 5.7.1 CAM / Smart card You can insert 4 or 8 Conditional Access Modules (CAM) into a TDmH & TDcH Headends Each CA module can unscramble at least one service. The amount of services and which services depend on the service provider of the CA module and smart card. - Page 54 TDcH & TDmH - Compact and Mini Headend In the DESTINATION column you can now choose the services you would like to send to a CA module. Note: It is possible to send services from different transponders to the same CA modules, so that the number of CA modules can be reduced.
- Page 55 TDcH & TDmH - Compact and Mini Headend Card speed: Open the drop-down list with the card speeds if you want to use a higher card speed than the default. Select the required card speed. Load: The load shows current used payload and how much is free of the accessible payload.
-
Page 56: Common Interface
TDcH & TDmH - Compact and Mini Headend To descramble all PIDs that are not audio or video related, click the “Descramble non audio/video” PIDs checkbox. By default, all audio PIDs (Packet Identifier) associated with the service are descrambled. To descramble only selected audio PIDs you must deselect the Descramble all audio PIDs checkbox. -
Page 57: Rf Outputs
TDcH & TDmH - Compact and Mini Headend RF Outputs The Output Tab is for assigning services to the RF output channels and to the IPTV addresses. Note: In most models the output modulation can be changed between QAM and COFDM. Select the required output modulation before you start to configure the TDcH &... - Page 58 TDcH & TDmH - Compact and Mini Headend Select service: Note: Services can be assigned to an output channel in direct conversion or as a new multiplex. In the direct conversion a full input transponder is assigned to an output channel. If a new multiplex is made, single services can be chosen from independent input transponders.
-
Page 59: Qam Modulation
TDcH & TDmH - Compact and Mini Headend 5.8.1 QAM Modulation Enable All RF Outputs You can quickly enable or disable all RF outputs by this setting. QAM output frequency: You can configure a QAM output frequency by using the specifications of the channel plan or by entering a frequency manually. - Page 60 TDcH & TDmH - Compact and Mini Headend Open the detailed output configuration menu with the extend button. Constellation: To select which QAM mode to use, open the dropdown list and select the QAM mode you want to use. Symbol rate: Enter the desired symbol rate (from 3150 to 7200 kS) in the Symbol rate field.
-
Page 61: Cofdm Modulation
TDcH & TDmH - Compact and Mini Headend 5.8.2 COFDM Modulation CHANNEL You can configure a COFDM output frequency by using the specifications of the channel plan or by entering a frequency manually. Using the channel plan definitions: Open the drop-down list with the predefined channels and select the channel you want to use. -
Page 62: Tsid And Sid Management - Rf Output
TDcH & TDmH - Compact and Mini Headend Enable Output: If you want to enable this channel, click the Enable Output checkbox. LOAD monitor The payload monitor is a real time monitor, which visually indicates the amount of data that is currently being transmitted. -
Page 63: Pid Management - Rf Output
TDcH & TDmH - Compact and Mini Headend 5.8.4 PID Management – RF Output Pressing the PID Management button opens the PID management menu. In PID Management window you will find the following information: Service Name Output SID Stream Type Details like CAS ID, Audio type, etc. -
Page 64: Multiple Services - Rf Output
TDcH & TDmH - Compact and Mini Headend 5.8.5 Multiple services – RF Output The TDcH & TDmH support sending out services multiple times. This functionality can be used to send out the service with different audio languages. This has the advantage that the services are available multiple times in the service list, so the customer can choose the service with the desired audio language by simply changing the... -
Page 65: Ip Output
TDcH & TDmH - Compact and Mini Headend IP Output 5.10 License IP output licenses need to be purchased from TRIAX to enable the distribution of IP services through the TDcH & TDmH headend system. Required license numbers: Item No.:... -
Page 66: Iptv Out Configuration In Gui
TDcH & TDmH - Compact and Mini Headend 5.13 IPTV out configuration in GUI Enter the configuration for IPTV out in the GUI by entering the Output tab in the panes and the IP Output sub-tab. Time to live (TTL) or hop limit is a mechanism which limits the lifespan or lifetime of data in a computer or network. TTL may be implemented as a counter or timestamp attached to or embedded in the data. - Page 67 TDcH & TDmH - Compact and Mini Headend Assign service to streaming at IPTV output: Services can be assigned to an IPTV output. Receive an IP stream by following the few steps below: Select the Outputs tab in the panes. Select the IP Output sub-tab.
-
Page 68: Tsid And Sid Management - Ip Output
TDcH & TDmH - Compact and Mini Headend Open the detailed output configuration menu with the extend button. 5.13.1 TSID and SID Management – IP Output Transport stream ID In the field Transport stream ID you will find the actual used Transport stream ID. If you would like to change this you can type a new value into the field. -
Page 69: Pid Management - Ip Output
TDcH & TDmH - Compact and Mini Headend 5.13.4 PID Management – IP Output Pressing the PID Management button opens the PID management menu. In the PID Management window you will find the following information: Service Name Output SID Stream Type Details like CAS ID, Audio type, etc. -
Page 70: Lcn Page
TDcH & TDmH - Compact and Mini Headend 5.14 LCN page At the LCN page it is possible to set the Network Settings parameters and administer the LCN (Local Channel Number) numbers. 5.14.1 Network Settings Network ID Enter the required network ID in the Network ID field. If it is an open network, the network ID must follow the “ETSI TR 101 211”... - Page 71 TDcH & TDmH - Compact and Mini Headend EIT (EPG Management) The Event Information Table (EIT) dropdown list enables you to change the EIT settings for both DVB-T and DVB-C. Note: Please note that the TDcH & TDmH EPG management function supports 4 or 8 days EPG information per service independent of whether the EPG is set to “Full”...
- Page 72 TDcH & TDmH - Compact and Mini Headend NIT STANDARD Select which standard you want to use, DVB or NorDig. By default, DVB is selected. STATIC NIT VERSION (“Freeze” NIT) If programs in a transponder change, then the NIT is recreated. In most countries, the end user does not notice, because the receivers automatically read in the new NIT.
-
Page 73: Service Discovery
…” and the list will pop up at another window in your browser. XSPF Sample: <?xml version="1.0" encoding="UTF-8"?> <playlist version="1" xmlns="http://xspf.org/ns/0/"> <trackList> <track><title>DR1</title><location>udp://@239.194.0.1:50172</location> <extension application="http://www.triax.com"><poolserviceid>4</poolserviceid></extension></track> <track><title>Syd</title><location>udp://@239.194.0.2:50172</location> <extension application="http://www.triax.com"><poolserviceid>6</poolserviceid></extension></track> </trackList> </playlist> This service list contains IP addresses and port numbers Sample: udp://239.194.0.1:50172... - Page 74 TDcH & TDmH - Compact and Mini Headend Extended M3U This service list is compliant to SAT>IP Protocol Specification (ver. 1.2.2) and is defined as “extended M3U channel list” In the standard under appendix A2.1 This service list contains IP address and port number Service name Sample: #EXTM3U...
-
Page 75: Epg
TDcH & TDmH - Compact and Mini Headend 5.14.3 EPG EPG for IPTV output can be pulled from the TDcH & TDmH. The TDcH & TDmH have an integrated EPG server to support external devices with EPG data. This could be a middleware server or a TV management server or end user devices directly. -
Page 76: Overview
TDcH & TDmH - Compact and Mini Headend 5.15 Overview The overview page is a fast and easy overview with a “sort” and “search” function. By pressing the underlined links there is also the option to navigate direct to specific information and settings if needed. Please see mouse over description below. -
Page 77: Export To Excel
TDcH & TDmH - Compact and Mini Headend Alphabetic order With a click on the Column description, for example “SERVICE”, the corresponding column will be sorted in alphabetical order. With a second click the alphabetical order is reversed. Search In the Search fields it is possible to search for specific text. Start typing and the list will show only names with the characters included in the same row as in the search field. -
Page 78: Direct Access Via Url
File Description x.x.x.x/logfile tdch_logfile.zip Zipped log files x.x.x.x/mib TRIAX-TDCH_MIB.txt MIB file as txt file. Some SNMP managers support importing in other file formats like *.mib. If your SNMP manager doesn’t support the txt file, then rename it to e.g. *.mib. -
Page 79: Support
TDcH & TDmH - Compact and Mini Headend Support Contact your local sales representative for support information in your language, or alternatively Go to www.triax.com. for English support. Below the Contact menu you will find additional help and support information. - Page 80 TDcH & TDmH - Compact and Mini Headend Terms and Abbreviations Term Explanation To Be Added To Be Determined Packet Identification; According to standard ISO 13818-1 Service Identification; According to standard ISO 13818-1 TSID Transport Stream Identification Network Identification Table; According to standard ETSI EN 300 468 Network Identification used in NIT;...
