- Page 1 User Manual Modulator MOD 102T Article Article no. Modulator MOD 102T 300127 Version Date 02/2018...

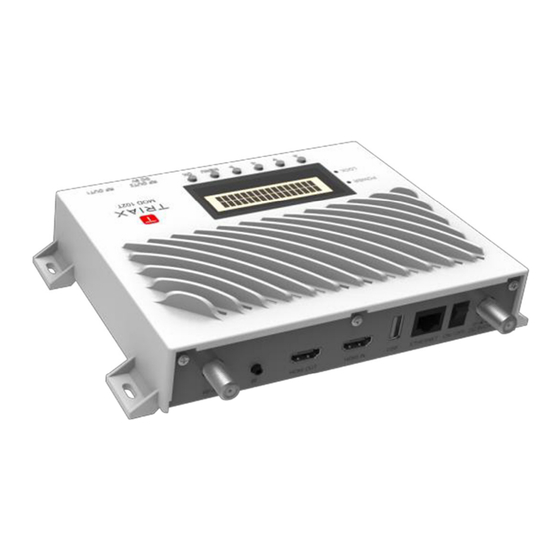

- Page 2 Introduction The MOD102T modulator has an HDMI input with local loop through, and a COFDM output which is combined with the RF input. The HDMI input content can be supplied by a number of sources, Blu-ray player, Satellite Set top box, CCTV etc. The input signal is modulated as a COFDM output and can be distributed to a number of TV’s over an existing private coaxial network.
-
Page 3: Equipment Detail
1. Connect the IR Transmitter to IR sensor (2) at the rear of the Modulator and ensure it points to the receiver (STB) 2. Connect Triax Digital Link (not included in accessories) at the other TV location, ensure the coax network is connected to RF Out 2 DC9V (C). - Page 4 SET UP Instruction on how to set up the modulator using the front panel LCD display Press OK and to make any adjustments or changes, confirm changes by pressing OK again.
- Page 5 Instruction of how to use WebUI 1. Connecting to modulator Step 1: Set the PC’s static IP address to 169.254.0.100 Step 2: Connect MOD102T to computer via an Ethernet cable. Step 3: Open your browser and enter 169.254.0.3 (The Web UI only supports Windows 7 browsers or above.) 2.
- Page 6 3. Modulator Setting: RF Status: RF On/Off: Users can either turn the RF on or off in this this menu. Encoder Setting: Audio Type: Users can choose either AAC or MPEG. Service Setting: Service Name: Users can edit the service name (TV Program Name). Service ID: Users are able to define a device ID from 1 to 65534.
- Page 7 Stream Setting: 1. OrgNetwork ID: Users Users can edit OrgNetwork ID from 1 to 65534. 2. Network ID: Users can edit Network ID from 1 to 65534. 3. TS ID: Users can edit TS ID from 1 to 65534. 4. Network Name: Users can define the Network name. Parameter Setting: Constellation: The MOD102T contains the following constellation modes: QPSK, 16QAM and 64QAM.
- Page 8 4. Utility: Tftp Upgrade: Select and upload bin file & apply firmware upgrade (details below). Change Password Setting: Old Password: Enter old password. New Password: Enter pew password. Confirm Password: Enter new password again. System Information: This shows the Device Version and Module Version. Other Settings: The user can also change the language setting to English, French, German, or Danish.
- Page 9 Tftp Upgrade instruction 5. Tftp Upgrade instruction Set the PC’s static IP address to 169.254.0.100 Launch Tftp tool and enter the below information under DHCP server tab. User can assign any location, but the update file must be in the assigned folder.
- Page 10 Select Utility tab and click Tftp Upgrade button The web page and Tftp will begin the upgrade process.
- Page 11 Enter value : 1~65534 Stream Settings (1~65534) 8350 Enter value : 1~65534 Network ID (1~65534) TS ID (1~65534) 8350 Enter value : 1~65534 Network Name TRIAX Edit Network Name Parameter Settings Constellation 64QAM QPSK/16QAM/64QAM Code Rate 5/6, 7/8 Guard Interval 1/8,1/16,1/32 Transmission...
