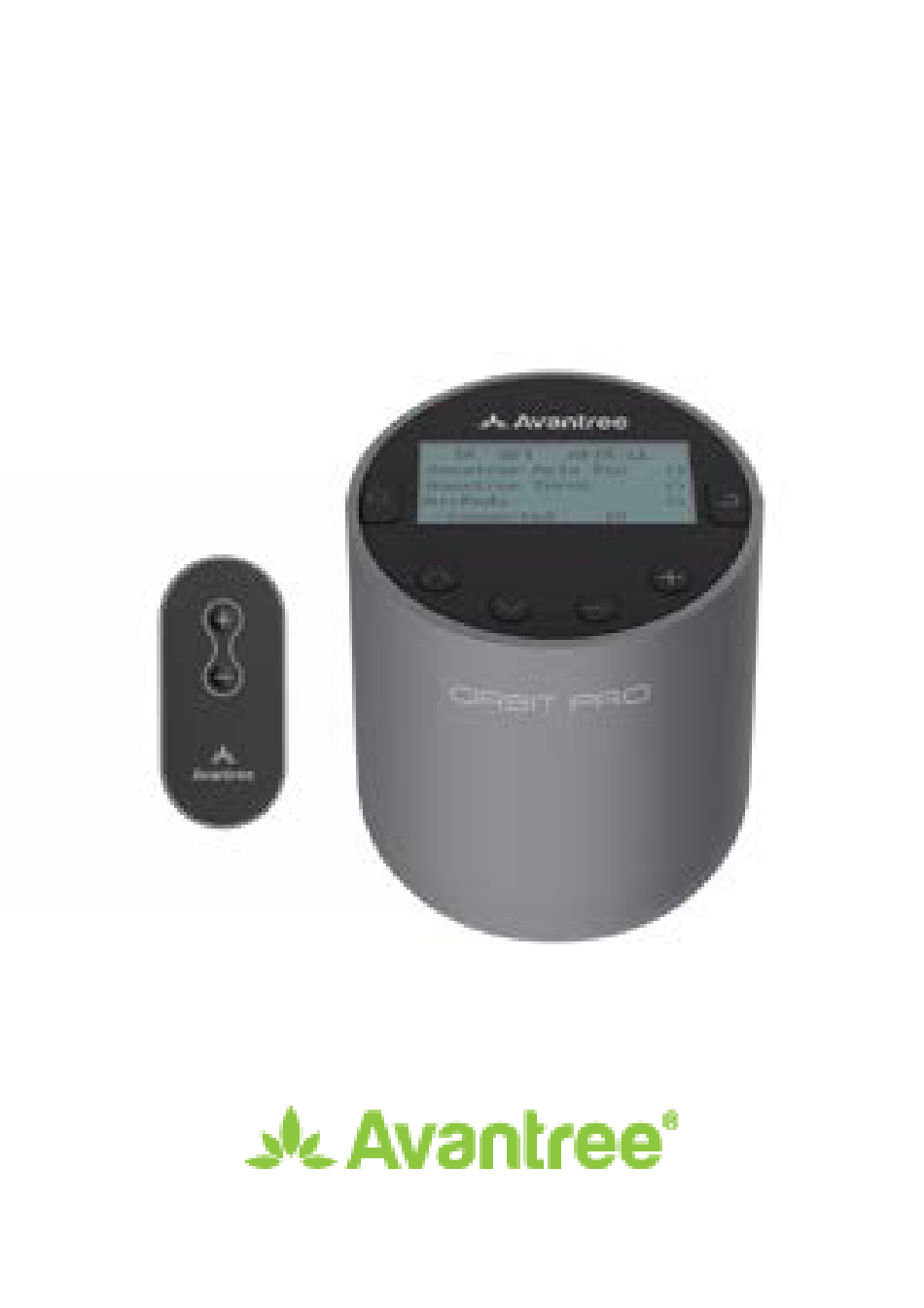

- Page 1 Orbit Pro User Manual Model No.: BTTC-580-P...
-
Page 2: Table Of Contents
User Manual ORBIT PRO Table of Contents Box Contents 3... -
Page 3: Box Contents
User Manual ORBIT PRO Box Contents ORBIT PRO Digital Optical transmitter Audio Cable AUX 3.5mm AUX 3.5mm to Audio Cable RCA Adapter Type C Remote Power Cable... -
Page 4: Product Introduction
User Manual ORBIT PRO Product Introduction Product Overview Power/Mode Volume Switch Input Switch HDMI Input HDMI Select DC IN Input Format TX/RX Mode Bluetooth Codec TX OPT APTX-LL Device Names Connection Avantree Aria Pro Status Avantree Torus AirPods Connect/ Search For... -
Page 5: Button Functions
ORBIT PRO Button Functions Button Functions Switch to “TX” to turn the Orbit Pro on & put it in transmitter mode Switch to “RX” to turn the Orbit Pro on & put it in receiver mode Switch to either “OFF” or “TX” to bypass audio to speakers Switch to “OPT”... -
Page 6: Led Indicators
Valid audio signal detected Use for TV Watching (Transmitter Mode) Connecting to TV The Orbit Pro must be connected to a power source via the provided power cable in order to function. Plug the transmitter into either: 1. A TV’s USB power port (we recommend this so that they auto power ON / OFF in tandem with your TV), OR 2. - Page 7 ORBIT PRO HDMI ARC (recommended) OPTION 1 STEP 1 Plug your HDMI cable (not provided) into the TV’s “HDMI ARC”port, then plug the other end into the Orbit Pro’s HDMI port in the “Input” section. RGB IN AUD IO HDMI/DVI IN...
- Page 8 User Manual ORBIT PRO RGB IN HDMI/DVI IN RGB(PC ) AUD IO (RGB /DVI) REMOTE CONTRO L IN COMPONENT IN RS-232C I (CON T VIDEO AUDIO DIGI OPTICA ANTENNA/ ROL & SE CABLE IN TAL AUDI O OUT L COAXIAL...
- Page 9 User Manual ORBIT PRO STEP 2 Switch the button to the “AUX” position. HDMI RCA port OPTION 4 STEP 1 Plug the red & white RCA connectors into the TV’s “AUDIO OUT” ports, then use the provided RCA to AUX adapter to plug the other end into the transmitter’s AUX 3.5mm port in...
-
Page 10: Connecting Your Headphones
User Manual ORBIT PRO Connecting Your Headphones Now that your Orbit Pro is set up, you can connect your headphones to the transmitter. STEP 1 Put your Bluetooth headphones / speakers into PAIRING mode. STEP 2 Press the Orbit Pro’s button once to search for a device. - Page 11 Bluetooth devices in its vicinity. If your TV prompts you to connect your Bluetooth headphones or the Orbit Pro, please "DENY" the request so that your device can properly pair with the transmitter. Avantree Orbit Pro Your permission is require d to connect your device to TV.
-
Page 12: Setting Up Your Tv
User Manual ORBIT PRO Setting Up Your TV ( FOR OPTICAL & HDMI ARC CONNECTIONS ONLY ) If you connected to your TV via the optical OUT , “OPT OUT” or HDMI ARC port, you’ll need to configure your TV settings before you’ll receive audio. -
Page 13: Adding A Second Pair Of Headphones
User Manual ORBIT PRO If you’re having trouble finding these settings, you can scan the QR code correlating to your TV’s brand OR visit avantree.com/ orbit-pro/tv-audio-settings for a more detailed guide. SONY SAMSUNG Adding a Second Pair of Headphones STEP 1... -
Page 14: Reconnecting Your Headphones
NOTE: If you paired your headphones with a different Bluetooth device, turn Bluetooth OFF on said device(s). Airpods in particular will always prioritize iPhones for automatic pairing, so you'll need to turn your iPhone's Bluetooth OFF when pairing your Airpods with the Orbit Pro. -
Page 15: Listening With A Soundbar (Bypass Function)
User Manual ORBIT PRO Listening with a Soundbar (Bypass Function) The Orbit Pro’s pass-through function allows you to listen through both headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Slide to the “TX” or “OFF” position. STEP 2 Plug an additional optical or 3.5mm AUX cable into the... - Page 16 User Manual ORBIT PRO TV/AUDIO SOU RCE OPT OUT Bypass To Speaker OPT OUT OPT IN SOUND S YSTEM From TV NOTE: Bypass only works with the same type of input / output, i.e. if you connect to your TV via OPT, you’ll need to connect to your speaker via OPT as well.
-
Page 17: Use As Wireless Audio Receiver (Receiver Mode)
Please contact support@avantree.com if you’d like us to send you a free adapter). STEP 3 Connect to your speaker / soundbar via the included AUX, RCA, or OPT cables. Plug the other end into the Orbit Pro’s “OUTPUT” section. STEP 4 Press the button on the Orbit Pro once to enter PAIRING mode. -
Page 18: Using The Remote
Simply press the “+” and “-“ buttons on the remote controller to adjust volume. Facing the remote to the infrared window in front of the Orbit Pro within 4 meters and no obstacles. If your remote runs out of power, you can replace the battery with any CR2025 3V Lithium battery. -
Page 19: Specifications
User Manual ORBIT PRO Specifications Bluetooth version v5.0 Optical, AUX 3.5mm, RCA Audio input ports (only for TV); HDMI ARC Supported audioformat Dolby/DTS; PCM / LPCM Supported profiles A2DP, AVRCP aptX low latency, Audio codecs FastStream,aptX, SBC Operating range Up to 164ft / 50m Battery for the remote... -
Page 20: Faq
2 sources simultaneously. You can try a few different methods to test if your TV is capable of this or not -- please refer to avantree.com/orbit-pro/sound for more details. Why am I getting audio delay? Both the sender (i.e. -
Page 21: Contact Us 101
Contact Us Support Tickets avantree.com/submit-a-ticket Support Email support@avantree.com Support Numbers US +1 800 232 2078 9am-6pm PST Mon-Fri CA +1 800 232 2078 9am-6pm PST Mon-Fri UK +44 208 068 2023 9am-6pm GMT Mon-Sat DE +49 322 2109 7297 11am-9pm CET... - Page 22 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
