Avantree AS70 - Wireless Audio Receiver Quick Start Guide

What's in the box

Avantree AS70
Micro USB charging cable

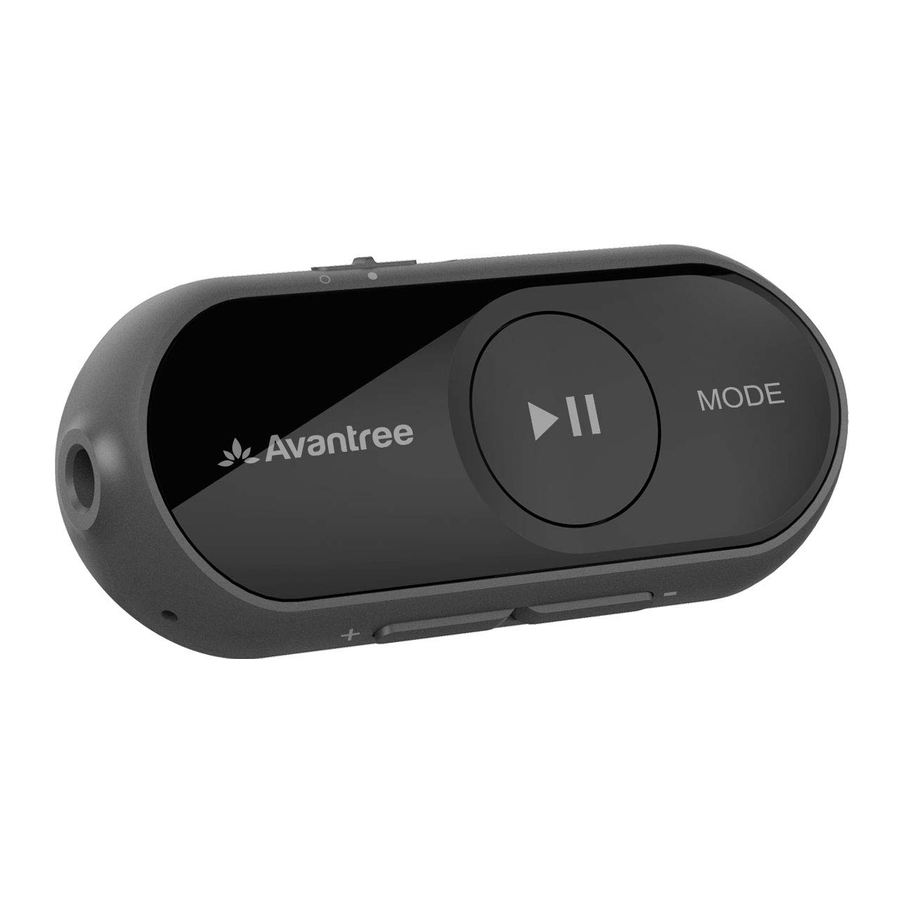

Products overview

Basic Operation

Function	Operation
General function
Power on/off	Slide to
Enter pairing mode	After power on, slide to and hold it there for 2 seconds
Reconnecting	Slide to once
Music control
Play/pause	Press once
Volume up/down	Press + / - once
Next/previous track	Press and hold + / - for 1 second
Sound mode switch	Press and hold MODE for 2 seconds
Call control
Answer/end a call	Press once
Reject a call	Press and hold for 1 second

Note: Some functions may now work when used with different mobile phones or other Bluetooth devices.

Important LED Indicator

Connect to a Bluetooth device

1. Enter the AS70 into PAIRING MODE – Slide to to turn on the AS70, then slide the switch to the position and hold it there for 2 seconds. The LED indicator will start flashing BLUE & RED alternately. If you have a device plugged into it, you'll hear "pairing".
2. On your device - Activate Bluetooth, search & select "Avantree AS70" to connect. If you are using a Bluetooth transmitter, enter your transmitter into Bluetooth PAIRING Mode.
3. Once connected, the LED indicator will either flash BLUE or become SOLID BLUE. If you have a device plugged into it, you'll hear "connected".

Reconnect to a Bluetooth device

Once powered on, the AS70 should automatically reconnect to the last connected device within 5-10 seconds. If it doesn't, please either slide the power on/off/pair switch to the position ONCE or select "Avantree AS70" from your device's Bluetooth menu to connect manually. (If you're using a Bluetooth transmitter, please refer its user manual.)

Charging

When the LED indicator starts flashing RED, you should charge the device. Connect the AS70 to a power source using the micro-USB cable we provided. You may either use a wall plug with 5V/500mA-1A (please utilize an USB-wall plug adapter such as a mobile phone charger) or a PC USB port.
The LED indicator will turn RED while charging and turn BLUE when the charging is complete. It normally takes around 2 hours to fully charge. The AS70 support working while charging, but it will automatically turn turn off if you charge it during the usage, now manually turn on it and it will resume working.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Avantronics Ltd. is under license. Other trademarks and trade names are those of their respective owners.

FCC

CE

Avantronics Ltd. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The full test of the EU declaration of conformity is available at the following internet address: www.avantree.com

In accordance with Article 10(2) and Article 10(10), this product is allowed to be used in all EU member states.

Manufacturer:
Avantronics Limited
Address: Luohu District, Shenzhen 518000 China

US Importer:
Avantree Corporation
San Jose, California 95119 USA

UK Importer:
Avantree Limited
Watford, WD180 0HQ UK

Any questions? Please visit: support.avantree.com
Email support: support@avantree.com (Response Time: 1 working day)
Live chat: www.avantree.com
