Summary of Contents for Avantree ProLink
- Page 1 ProLink User Manual User Manual & FAQs...
-
Page 2: Table Of Contents
User Manual PROLINK Table of Contents Box Contents 3 Product Introduction (Transmitter) 4... -
Page 3: Box Contents

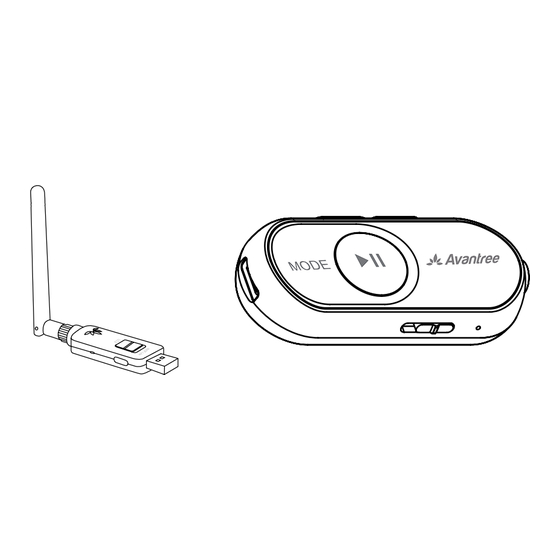

User Manual PROLINK Box Contents DG60L Transmitter AS70P Receiver USB C Charging Cable AUX 3.5mm Audio Cable AUX 3.5mm Female to USB A Female to 2.5mm Male Adapter USB C Male Adapter (For Headphones with AUX 2.5mm Jack) -
Page 4: Product Introduction (Transmitter)
User Manual PROLINK Product Introduction (Transmitter) Product Overview Music / Gaming Switch LED Indicator Multifunctional Button (MFB) -
Page 5: Button Functions
User Manual PROLINK Button Functions Button Functions Press & hold for 2 seconds to enter pairing mode Press once to reconnect the last paired device Double click to clear pairing history while in pairing mode Slide switch to "For music" to enable high quality audio, or "For gaming"... -
Page 6: Product Introduction (Receiver)
User Manual PROLINK Product Introduction (Receiver) Product Overview Volume Play/Pause Type-C Mode On/Off/Pair LED Indicator Clip... -
Page 7: Button Functions
User Manual PROLINK Button Functions Button Functions Slide to to turn on / off Slide to and hold for 2 seconds to enter pairing mode Slide to and release to reconnect the latest device Press once to play / pause Press once to accept / end call Press &... -
Page 8: Led Indicators
User Manual PROLINK NOTE: The Accept/end/reject call, redial last number and activate voice assistant functions only work while the AS70P is paired with mobile phones. LED Indicators No. Indicator Status Alternate red & blue flashes Pairing Connected via Solid blue... -
Page 9: Set Up
User Manual PROLINK Set up Power on and connect STEP 1 Connect your headphones with the AS70P receiver. STEP 2 Plug the DG60L transmitter into the PC/PS5’s USB port. It will turn on automatically once the PC/PS5 powers up. - Page 10 User Manual PROLINK STEP 3 Turn on the AS70P by sliding the . The AS70P and the DG60L should automatically connect to each other within 2-5 sec of turning them on. Once connected, the LED on the DG60L will be solid white or blue and the LED on the AS70P will be solid white.
-
Page 11: Audio Setting On Pc/Ps5
User Manual PROLINK Audio Setting on PC/PS5 Configuring Audio Settings on PC STEP 1 Choose "Avantree DG60L" as the default audio input / output device. System Preferences... Settings System Sound Sound Sound Sound Output Output Select a device for sound output:... -
Page 12: Advanced Features
Configuring Audio Settings on PS5 Go to Settings - Sound. Ensure that both “Input Device” and “Output Device” are set to "USB Headset (Avantree DG60L)". This will allow you to hear the game's background music and communicate with your partner at the same time. - Page 13 FOR SUBSEQUENT USE The earphones should automatically reconnect to the last-paired device within a few seconds when turned on. If not, select "Avantree AS70P "in your device's Bluetooth menu to reconnect. NOTE: The AS70P can be used independently with your own devices like phones/Bluetooth transmitters, but the DG60L transmitter can’t be...
-
Page 14: Using The As70P Receiver With Both
User Manual PROLINK Using the AS70P Receiver with Both Phone & Transmitter STEP 1 Connect the AS70P to your phone per the instructions above. STEP 2 Plug the DG60L transmitter into your PC/PS5'S USB port and wait for about 2 seconds; it will connect to the AS70P automatically. -
Page 15: Specifications
User Manual PROLINK Specifications Transmitter (DG60L) BT version V5.3 Operating range Up to 50 meters in open areas Bluetooth profiles MCP V1.0, CCP V1.0, VCP V1.0 Supported audio codecs LC3, APTX-Lite Rated input DC5.0V / 500Ma-2A Product dimensions 96 x 88 x 23mm... -
Page 16: Faq
Please get both the DG60L and AS70P into pairing mode and manually pair them again..For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/prolink, or you can contact us directly for additional assistance. -
Page 17: Contact Us
DE +49 322 2109 7297 11am-9pm CET Mon-Sat FR +33 17 634 0312 11am-9pm CET Mon-Sat +39 069 4803 330 9am-6pm CET Mon-Sat +34 93 1786 261 9am-6pm CET Mon-Sat AU +61 2 8310 9897 11am-7pm AEST Mon-Fri avantree.com/support/prolink See QR code on the product. - Page 18 Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 | support-uk@avantree.com EU Importer and Responsible Person: Avantree Europe Z O.O.Ul. żOłNierzy I Dywizji Wojska Polskiego 78a/2 84-230 Rumia, Pomorskie, Poland +48 22 307 25 37 | support-eu@avantree.com Battery Manufacturer and Responsible Person: Dongguan LiDu Electronic Technology Co., LTD...
