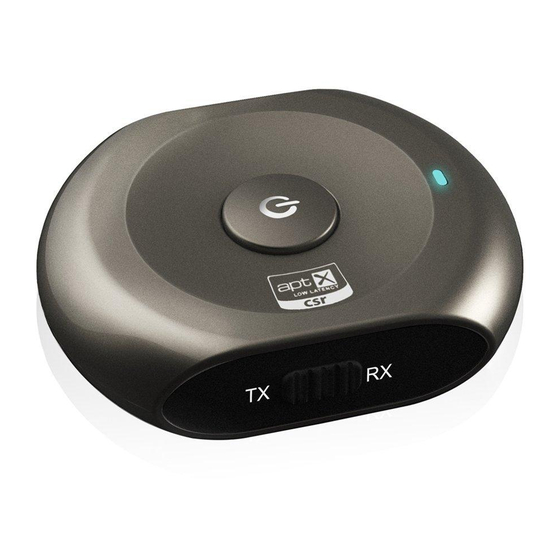

1. Product Description

Avantree Saturn is a 2 in 1 Bluetooth receiver and transmitter which incorporates latest 'aptX' codec for less latency, high audio
quality. The Saturn is very simple to use that enables any Bluetooth enabled music device to connect between both Bluetooth or non-
Bluetooth devices. It can be used to enable a phone to transmit music to a home stereo system or just as easily, to allow a CD player
or other device to transmit to a Bluetooth speaker system or headphone device. With its compact design, rechargeable feature, also
long time working item enables you whenever or wherever you want to use it.

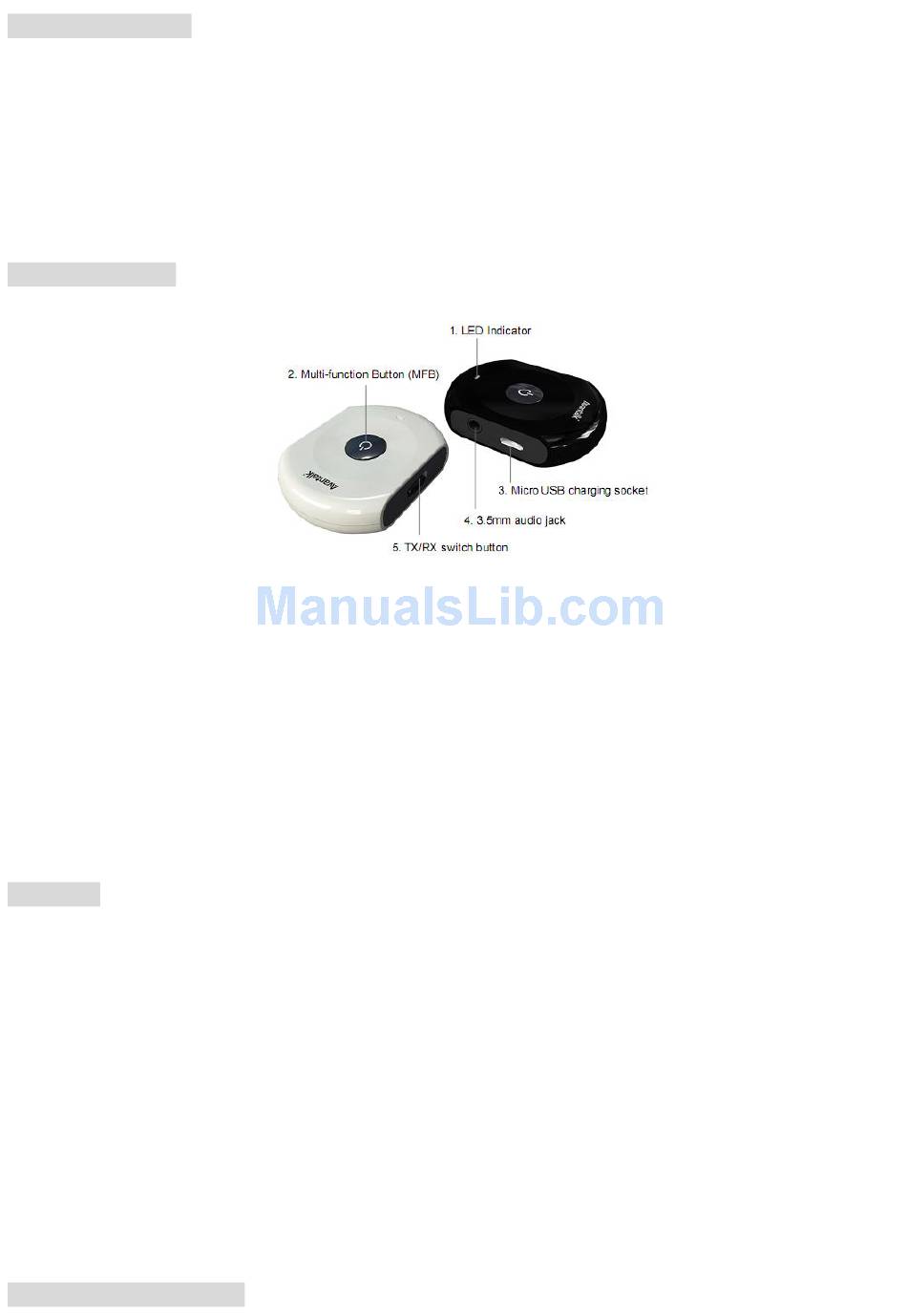

2. Product Overview

(1) LED Indicator
(2) Multi-Function Button (MFB)
(Power on / Off / Pairing )
(3) Micro USB charging socket
(4) 3.5 mm audio jack
(5) TX / RX switch button
What's in the box:
A. Avantree Saturn
B. 3..5mm to 3.5mm audio cable
C. USB charging cable
D. 3.5mm to RCA audio cable
E. Warranty card
F. User manual
G. 3.5 audio connector

3. Charging

Saturn comes with a built in rechargeable battery that provides a very long standby time and working time. We recommend charging
the battery fully before using it for the first time.
1) Insert one Micro USB charging cable end to Saturn Micro USB socket, and put the other end into a standard USB power outlet,
such as laptop or desktop.
2) It takes 3 hours to charge full and reaches its full capacity for the first time Each subsequent charge cycle take around 2 hours.
3) LED will indicate red when charging, and goes off when charging is complete.
4) If you have not used the device for a few months, LED might not turn red when first charging. It might take 15-35 minutes before
the LED turns red.
5) We suggest to fully charge the device at least every two months

4. Transmitter, Turn On / Off
