Avantree Saturn User Manual
Bluetooth Audio Transmitter & Receiver 2-in-1

1. Product Description

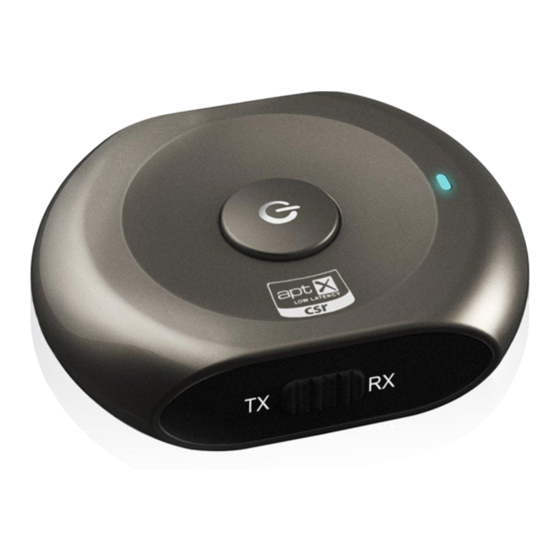

Avantree Saturn is a 2‐in‐1 Bluetooth receiver and transmitter which incorporates the latest aptX codec for less latency,
high audio quality. The Saturn is very simple to use, and can make any audio device Bluetooth enabled. It can be used to
enable a phone to transmit music to a home stereo system or just as easily, to allow a CD player or other device to
transmit to a Bluetooth speaker system or headphone device. With its compact design and its ability to recharge, this
item can be used again and again, whenever or wherever you want to use it.
2. Product Overview
A. Avantree Saturn
B. 3.5mm to 3.5mm audio cable
C. RCA audio cable
D. 3.5mm to RCA audio cable
E.
USB charging cable
F.
Warranty card
G. User manual
H. Quick user guide
3. How to use Saturn as a Transmitter?
Before pairing, please make sure your Bluetooth receiver device supports true stereo audio. (Such as Bluetooth stereo
headset Avantree Sacool, Bluetooth speaker Avantree Pluto Air.)
A. Ensure Saturn is off, then push the switch button to TX mode.
B. Get Saturn into pairing mode by pressing and holding MFB for around 6‐8 seconds until LED flashes blue rapidly.
C. Get your Bluetooth stereo receiver device into pairing mode at the same time.
D. Connect Saturn to the audio output port of the audio source such as your TV, iPod etc. via the audio cable.



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saturn and is the answer not in the manual?

Questions and answers

Summary of Contents for Avantree Saturn

  • Page 1 Avantree Saturn User Manual Bluetooth Audio Transmitter & Receiver 2-in-1   1. Product Description   Avantree Saturn is a 2‐in‐1 Bluetooth receiver and transmitter which incorporates the latest aptX codec for less latency,  high audio quality. The Saturn is very simple to use, and can make any audio device Bluetooth enabled. It can be used to  enable a phone to transmit music to a home stereo system or just as easily, to allow a CD player or other device to  transmit to a Bluetooth speaker system or headphone device. With its compact design and its ability to recharge, this  item can be used again and again, whenever or wherever you want to use it.  2. Product Overview             A. Avantree Saturn  B. 3.5mm to 3.5mm audio cable  C. RCA audio cable  D. 3.5mm to RCA audio cable  USB charging cable  Warranty card  G. User manual  H. Quick user guide    3. How to use Saturn as a Transmitter?  Before pairing, please make sure your Bluetooth receiver device supports true stereo audio. (Such as Bluetooth stereo  headset Avantree Sacool, Bluetooth speaker Avantree Pluto Air.)    A. Ensure Saturn is off, then push the switch button to TX mode.   B. Get Saturn into pairing mode by pressing and holding MFB for around 6‐8 seconds until LED flashes blue rapidly. ...
  • Page 2 Keep them within 1 meter, wait until both LEDs slows down, which means they are connected.     NOTE:   1) The pairing mode will last 2 minutes. Saturn will enter standby mode if no devices can be connected with 2 minutes.  2) Saturn can pair with stereo Bluetooth receiver devices with PIN code “0000”, “1111”, “8888” or “1234”.  3) Please do not  change TX or RX mode after powering on Saturn.  When you need to pair another device, please turn  off the device firstly, then choose the mode you need.  4. How to use Saturn as a Receiver?    A. Ensure Saturn is off, then push the switch button to RX mode.  B. Get Saturn into pairing mode by pressing and holding the MFB button for around 6–8 seconds till Blue and Red LED  light blinks quickly and alternatively.  C. Turn on Bluetooth of your smart‐phone, search for “Avantree Saturn”,  click on your phone to connect. (E.g. iPhone:  tap “Settings” → “General” →”Bluetooth” → “On” )  D. Connect Saturn to the audio input port of home hi‐fi stereo system via the audio cable.    NOTE:   1) The pairing mode will last 2 minutes. The receiver will enter standby mode if no devices can be connected within 2  minutes.  2)  If pairing failed, please power off Saturn and pair again according to above mentioned procedures.  3) Please do not change TX or RX mode after powering on Saturn. When you need to pair another device, please turn  off the device first, then choose the mode you need.  4) When Saturn is used as a receiver, you may short press MFB once to control pause/play of music.  5. Power On/Off  Please ensure Saturn is off, then push the switch button to the mode(TX or RX) which you need.  Turn On:  Press and hold the MFB button for about 3 seconds until the blue LED is on for 1 second   Turn Off: press and hold the MFB button for about 3 seconds until the red LED is on for 1 second, and then go off.     ...
  • Page 3 6. Reconnection  Once being powered on, Saturn will reconnect with the last connected device automatically within 5 seconds. If not,  you may press MFB once to stimulate the process.   NOTE:   Saturn will automatically power off if no devices can be connected within 5 minutes.    7.Get Maximum Stable Range.  Please  kindly  make  sure  there  is  no  obstacle  (wall  corner  etc.)  between  receiver  and  transmitter;  also  make  the  2  devices at the same side.    8. Charging    When the LED blinks red, you should recharge the device. It normally takes about 3 hours to fully charge the battery.  The LED will stay red when charging and will turn off when charging is complete.  Charging requirement:  You can connect Saturn via the supplied Micro USB cable to your own USB chargers(wall charger/travel charger/car  charger, etc.) with 5V/500mA‐1A or PC USB port. It’s ok to use most mobile phone chargers on the market.    NOTE:  ...
  • Page 4 B.  Push another Saturn into RX mode, press and hold MFB button until LED flashes red and blue alternatively.  C. Keep them within 1 meter and wait for around 7 seconds, until the LED begins to flash slowly, which means they  are now paired and connected.  D. Connect the TX one to sound source such as TV, MP3, games, etc. and the other to the receiving item, such as a  speaker or headphones.  10. Restore Factory Default Settings  You may need to reset Saturn if it is not working as expected. When Saturn is reset to factory default settings, all the  paired mobile phone information will be erased.   Ensure Saturn is off, press and hold MFB button for around 10–12 seconds until RED and BLUE LEDs are both on for 1  second.  Saturn  now  has  been  reset  to  its  original  settings.  After  being  powered  on  again,  it  will  enter  pairing  mode  directly.  11. LED Indicator  LED indicator  Status of Saturn  Blue LED flashes rapidly  Pairing mode under TX mode, last for 2 minutes  Blue and red LED blinks alternatively  Pairing mode under RX mode, last for 2 minutes ...
  • Page 5 12. Product Specification   Bluetooth V2.1+EDR  Bluetooth profile supported:A2DP and AVRCP   Supported codec: aptX, SBC  Operation Range: Class 2, 10 meters  TX mode working time: 10 hours   RX mode working time: 9 hours   Standby time: up to 400 hours  Charging time: about 2‐3 hours  Charging input voltage: DC 5V  Battery: 270mAH rechargeable LI‐polymer battery  Weight: 48.5g  Size: 50mm(L)x37mm(W)X13mm(H)    NOTE:The working and standby times may vary when used with different mobile phones or other compatible Bluetooth  devices, usage settings, usage styles and environments.    FCC ID: WJ5‐BTRC201                                      QDID : B015006   Z‐PKMN‐TC200X‐00V2   ...
