Summary of Contents for Avantree Opera Plus

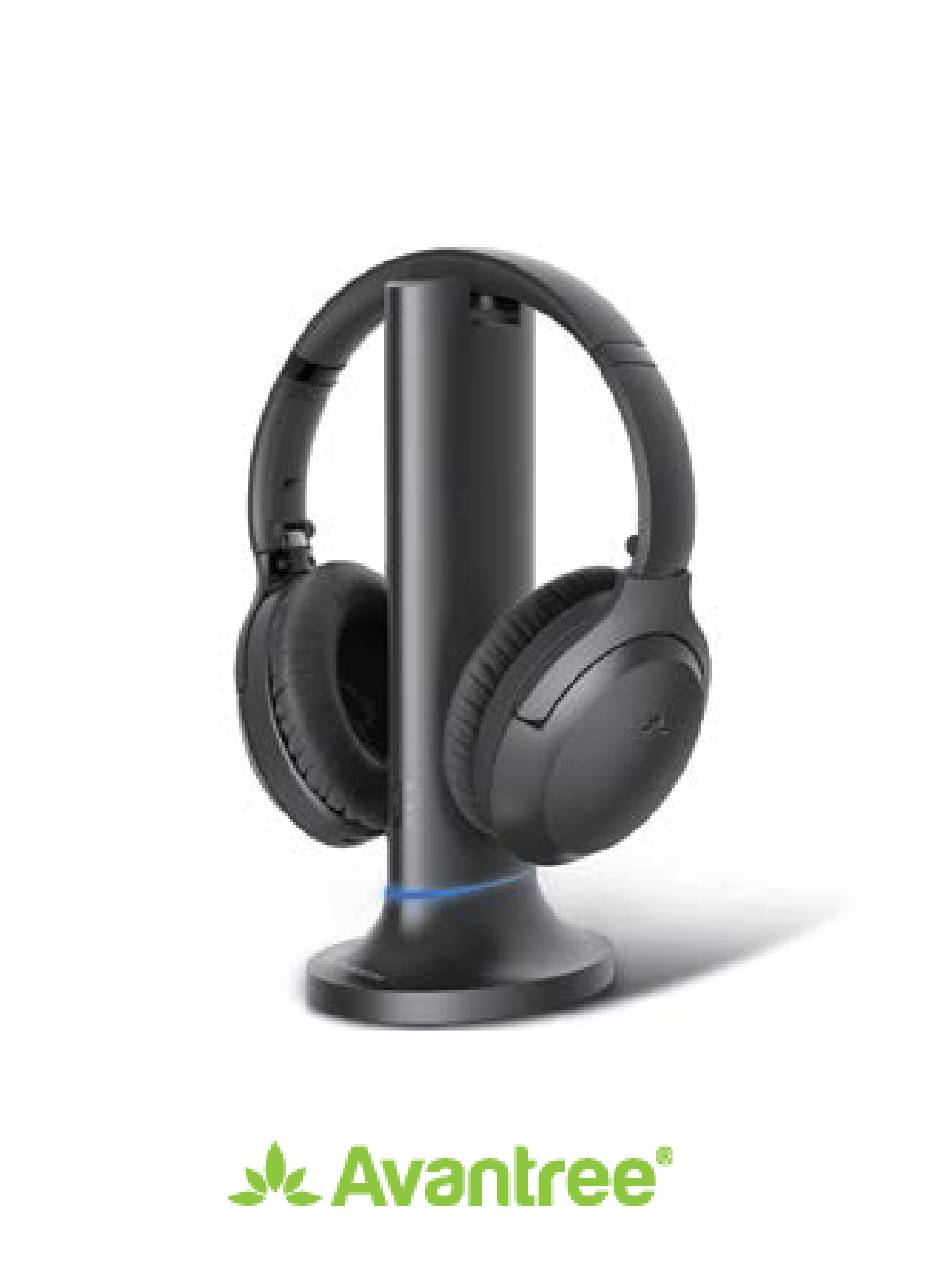

- Page 1 Opera Plus User Manual Model No.: BTHT-6190P...
- Page 2 Video Guide Prefer to watch a video tutorial? Scan the QR code below or visit avantree.com/ opera-plus/video for a step by step guide. Video-Anleitung Möchten Sie lieber ein Video Tutorial ansehen? Scannen Sie den QR Code unten oder besuchen Sie avantree.com/opera-plus/video für eine Schritt für Schritt Anleitung.
- Page 3 Buchen Sie einen Termin Vereinbaren Sie einen persönlichen Einrichtungstermin mit einem Support Mitarbeiter unter avantree.com/book-a-call und wählen Sie Ihre passende Zeit. Prenez Rendez-Vous Vous pouvez également réserver un rendez-vous d’installation individuel avec l’un de nos agents de support via avantree.com/book-a-call...
-
Page 4: Table Of Contents
User Manual Opera plus Table of Contents Box Contents 3... -
Page 5: Box Contents
User Manual Opera plus Box Contents Headphones Transmitter & Charging USB Adapter Dock Power Cable for USB C Charging Cable Optical Audio Transmittet for Headphones Cable AUX 3.5mm Audio Cable To view and purchase Opera Plus accessories, please visit avantree.com/ opera-plus/accessories... -
Page 6: Product Introduction (Headphones)
User Manual Opera plus Product Introduction (Headphones) Product Overview EQ Mode Button Pair / Reconnect /Play / Pause Off / TV mode /Phone mode LED lndicator Charging Port LED lndicator Button Functions Button Functions Switch to “TV” to connect to the transmitter, you will hear “... -
Page 7: Led Indicators
User Manual Opera plus LED Indicators Indicator Status Solid blue Connected, you will hear “connected” Flashing blue Reconnecting or disconnected Flashing red and blue Pairing mode, you will hear “pairing” Solid red Charging Charging complete Orange Headphones muted Unmuted... -
Page 8: Product Introduction (Transmitter)
User Manual Opera plus Product Introduction (Transmitter) Product Overview Normal / Boosted Volume Switch lnput Format Switch (AUX / OPT / HDMI ARC) On / Off / Pair LED Indicator Indicator PAIR... -
Page 9: Button Functions
User Manual Opera plus Button Functions Button Functions Switch to “ON / OFF” to turn the transmitter on /off Hold at the "PAIR" position for 5 seconds to enter pairing mode Press once to switch between normal and boosted volume... -
Page 10: Charging The Headphones & Powering The Transmitter
User Manual Opera plus Charging the Headphones & Powering the Transmitter OPTION 1 Simply put the headphone back on the charging dock to recharge them. The charging dock’s front LED will turn red while charging, and turn off once charging is complete. Normally, it takes about 3 hours to fully charge the headphones. -
Page 11: Setting Up
User Manual Opera plus Powering the Transmitter To power the transmitter, connect it to a wall outlet via the provided power cables and wall adapter. It doesn’t hold a charge, so it needs to be connected to power in order to function. - Page 12 User Manual Opera plus NOTE: Most TVs support audio output through only one digital output port at a time, so if your TV’s HDMI ARC port is in use, the optical port may be disabled. You can either unplug the HDMI ARC cable, or try connecting the transmitter via RCA / AUX.
- Page 13 User Manual Opera plus AUX 3.5mm port OPTION 3 Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the transmitter’s AUX 3.5mm input port in the “INPUT FROM TV” section.
-
Page 14: Connecting The Headphones
User Manual Opera plus Connecting the Headphones Now that your transmitter is set up, all that’s left is to connect the headphones. STEP 1 First, power on both the transmitter and headphones (slide to the TV postion). STEP 2 The transmitter and headphones will auto-connect. Once connected, the headphones’... -
Page 15: Setting Up Your Tv
Audio Out HDMI ARC Out Audio Format Dolby - OFF If you’re having trouble finding these settings, you can scan the QR code correlating to your TV’s brand OR visit avantree.com/opera/tv-audio-settings for a more detailed guide. SONY SAMSUNG NETFLIX/ AMAZON PRIME NOTE 1: Smart TVs automatically reset their settings after system updates. -
Page 16: Advanced Features
User Manual Opera plus Advanced Features Listening with a Soundbar(Only for Optical and AUX Connection) The pass-through function allows you to listen through both the headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Set up the transmitter and connect it to your TV. -
Page 17: Adding Another Pair Of Headphones
User Manual Opera plus Adding Another Pair of Headphones You can add a second pair of Opera Plus headphones (AS90-K) to your setup while maintaining low latency. Please note that ONLY Opera Plus headphones (AS90-K) are compatible due to private protocal connections. -
Page 18: Use The Headphones Lndependently With A Phone
1st time, it will enter pairing mode automatically, and the LED will flash red & blue alternately. If not, press and hold the button for 5 seconds to manually enter pairing mode. STEP 2 Turn on your Phone’s Bluetooth and select “Avantree Opera Plus” from the Bluetooth menu. -
Page 19: Troubleshooting
This completely depends on whether or not your TV supports the ability to output audio to 2 sources simultaneously. You can try a few different methods to test if your TV is capable of this or not -- please refer to avantree.com/opera- plus/sound for more details. -
Page 20: Specifications
User Manual Opera plus Specifications Transmitter & Headphones Carrier frequency 2.4GHz Frequency response 20Hz - 20KHz Operating range Up to 164ft / 50m Power port Type C Input 5V/500mA-2A Headphones Wireless tech 2.4G RF & BT5.2 BT supported profiles HFP 1.7, HSP 1.2, A2DP 1.3, AVRCP 1.6... -
Page 21: Contact Us
Contact Us Support Tickets avantree.com/submit-a-ticket Support Email support@avantree.com Support Numbers US +1 800 232 2078 9am-6pm PST Mon-Fri CA +1 800 232 2078 9am-6pm PST Mon-Fri UK +44 208 068 2023 9am-6pm GMT Mon-Sat DE +49 322 2109 7297 11am-9pm CET... - Page 22 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
