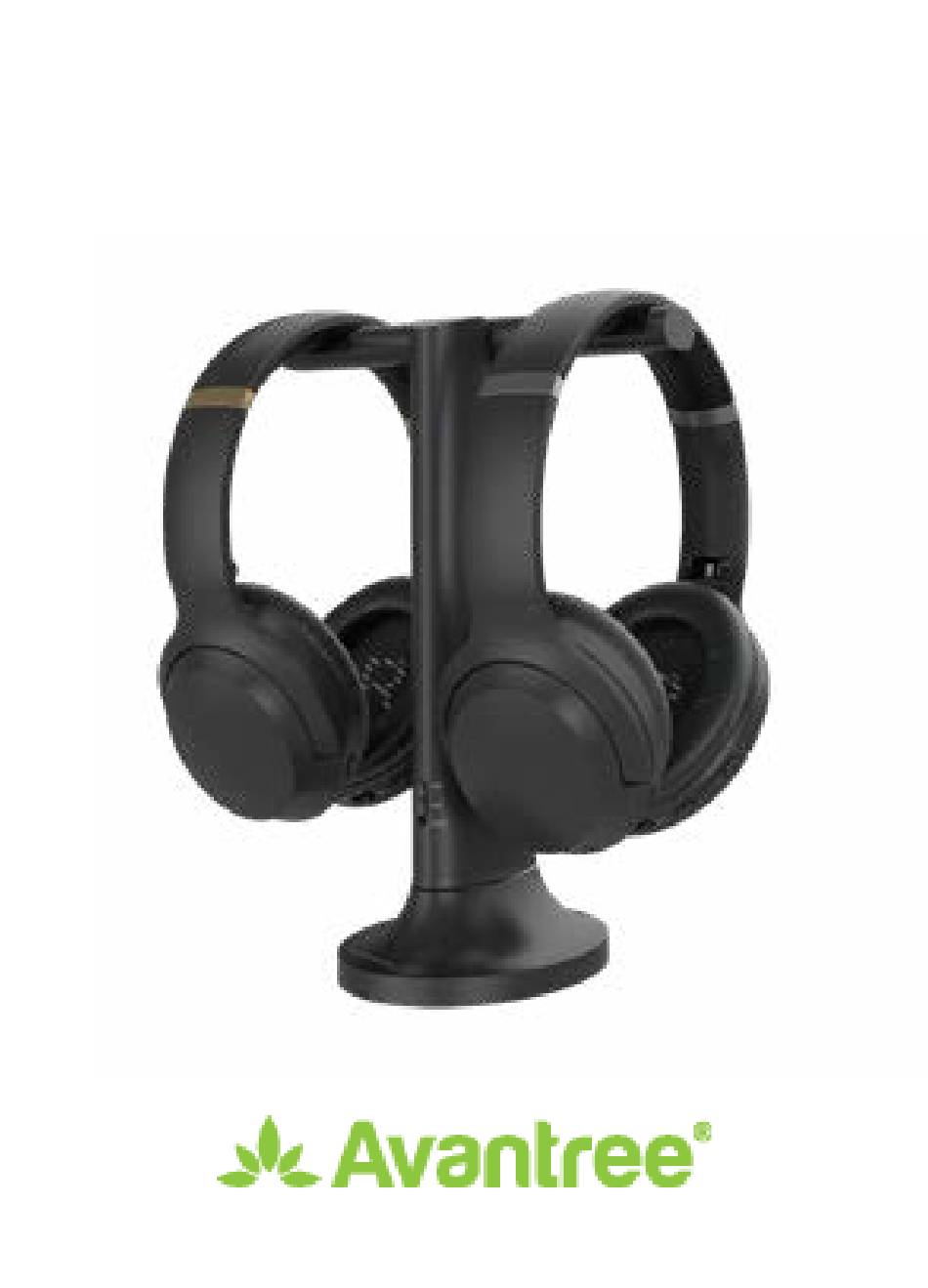

- Page 1 Duet User Manual Model No.: WSHT-D6129...
- Page 2 User Manual DUET Table of Contents Box Contents ...
-
Page 3: Box Contents
Power Cable USB C Charging Optical Audio for Transmitter Cable for Headphones Cable (5ft / 1.5m) AUX 3.5mm AUX 3.5mm to RCA USB Adapter Cable (5ft / 1.5m) Adapter (1ft / 35cm) To view and purchase Duet accessories, please visit avantree.com/duet/accessories. -
Page 4: Product Overview
User Manual DUET Product Overview Back View LED Charging Normal / Boosted Indicator Volume Switch Input Format Switch (MIC / AUX / OPT) Input From TV Bypass Output OFF / ON / PAIR to Speaker Back LED Front LED Mute / Unmute... - Page 5 User Manual DUET Button Functions Transmitter Switch to “ON / OFF” position to turn the transmitter on / off Hold in "PAIR" position for 5 seconds to PAIR enter pairing mode Switch to match your desired audio input method VOL BOOST...
- Page 6 User Manual DUET Charging Headphones & Powering Transmitter Place the headphones onto the transmitter / charging dock in order to charge. The LED charging indicator on top of the charging dock will turn red while charging, and off once charging is complete.
- Page 7 User Manual DUET You can also charge the headphones through their power ports using the USB C charging cable (Figure D) and a USB adapter. A solid red light indicates that charging is in progress; once the light turns off, your headphones will be at full battery.
-
Page 8: Connecting To Your Tv
User Manual DUET Connecting to Your TV Once the transmitter is connected to power source, you can then connect it to TV’s audio output ports. You can choose one of 3 different ways to do this: Optical port (recommended) OPTION 1 plug the provided optical audio cable (Figure E) into the TV’s... - Page 9 User Manual DUET Input From TV AUX 3.5mm RCA port OPTION 3 connect the provided RCA adapter (Figure G) to the AUX 3.5mm audio cable (Figure F). Plug the red & white RCA connectors into the TV’s “AUDIO OUT” ports, then plug the other end into the trans- mitter’s AUX 3.5mm input port in the “INPUT FROM TV”...
-
Page 10: Setting Up Your Tv
User Manual DUET FOR OPTICAL CONNECTIONS ONLY Setting Up Your TV If you connected to your TV via the optical OUT or “OPT / OUT” port, you’ll need to configure your TV settings before you’ll receive audio. STEP 1 Using your TV’s remote control, press the SETTINGS button and navigate to the AUDIO tab within the settings menu. -
Page 11: Connecting The Headphones
User Manual DUET If you’re having trouble finding these settings, you can scan the QR code correlating to your TV’s brand OR visit avantree.com/duet/ tv-audio-settings for a more detailed guide. SONY SAMSUNG Connecting the Headphones Now that your transmitter is set up, all that’s left is connecting the headphones. - Page 12 User Manual DUET Adding More Headphones You can add up to 100 Duet-Extra headphones to your setup while maintaining low latency. Please note that ONLY Duet-Extra headphones are compatible due to private protocol connections. STEP 1 On your transmitter, slide and hold the power switch to the “PAIR”...
- Page 13 User Manual DUET STEP 2 Turn on your pair of Duet-Extra headphones, then slide and hold the power switch to the “PAIR” position until the LED indicator flashes red & blue. PAIR STEP 3 Once connected, the headphones’ connection LED indicator will...
- Page 14 User Manual DUET Repeat these steps to add up to 100 headphones to your setup. To purchase Duet-Extra headphones, scan the QR code below. DUET-EXTRA HEADPHONES avantree.com/duet-extra-headphones Listening With a Soundbar The pass-through function allows you to listen through both the headphones and an external soundbar / stereo AVR simultaneously.
- Page 15 User Manual DUET STEP 3 Plug the other end into your external sound system, then you’re good to go. Digital OUT Digital Out Input From TV Bypass Output To Speaker...
- Page 16 User Manual DUET Specifications Transmitter Technology 2.4GHz Frequency Response (Hz) 20Hz-20KHz Operating range Class 1, up to 100ft / 30m Power supply 5V/1-2A Power port USB C Operating range Class 1, up to 100ft/30ms Specifications Headphones Carrier frequency 2.4GHz Frequency response (Hz)
-
Page 17: Troubleshooting
DUET Troubleshooting Below are some of the most common questions people have during setup. You can find a full FAQ list at avantree.com/support/ duet, or contact support@avantree.com directly for additional assistance. Why don’t I get sound when watching Netflix / Prime Video? You may need to change your TV’s audio settings an additional... - Page 18 FR +33 17 634 0312 11am-9pm CET Mon-Sat +39 069 4803 330 9am-6pm CET Mon-Sat +34 93 1786 261 9am-6pm CET Mon-Sat AU +61 2 8310 9897 11am-7pm AEST Mon-Fri avantree.com/support/duet Video Guide avantree.com/duet/video Product Registration See QR code on the product.
- Page 19 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
