OttLite 277G59 Manual

OttLite 277G59 Manual

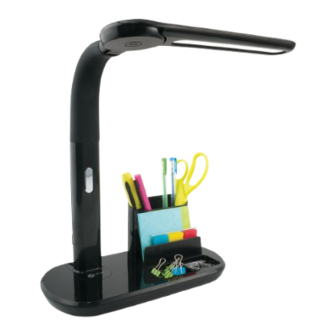

Led pivoting banker's lamp with organizer

Advertisement

Quick Links

P
M
B
C
Q
E
F
G
H
LED Pivoting Banker's Lamp with Organizer
277G59
277G59-SHPR
INS190508
D
K
A
J
ENGLISH
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with your new
OttLite
®
product.
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it
today by mail, or register online by going to: OttLite.com/warranty
1. Remove all packing from box and lay on a solid surface.
2. Grasp lamp upper section (C) and insert dowel (E) into connection
point (F) of base (A).
3. Lay lamp on its side and insert the bolt (H) and washer (G) into the
hole in the bottom of base (A).
4. Using a screwdriver or coin, tighten the bolt (H) until the lamp is held
firmly in the base.
5. Connect the AC Adapter input (J) into connector (L) in the rear-bottom
of the lamp upper section (C).
6. Plug the A/C adapter (K) into a standard household 120V AC outlet.
Note: Only use with the supplied AC adapter to avoid damage
or fire.
7. Turn the lamp ON & OFF using power switch (B) located in the front of
upper section (C). Power switch (B) is a "touch" switch that controls the
dimmer function for 3 levels of brightness.
8. To power LED settings, slightly touch the switch to achieve the following:
• turn lamp "ON" to first lower-brightness; touch the
switch "once";
• for medium-brightness; touch the switch "twice";
• for high-brightness; touch the switch "three-times";
• to turn lamp "OFF"; touch the switch "four-times".
9. To position the lamp head (D) carefully bend the flex-neck (M) as
L
needed to point the light. Hold the base (A) while adjusting the lamp.
10. Lamp also includes a pivot joint (P) on lamp head (D). To
engage pivot joint (P) grasp upper-end of flex-neck (M)
and move lamp head (D) left to right as needed.
SAFETY WARNING:
SHOCK, OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD (D) IS COOL before
handling.
2. The lamp head (C) might get hot after several hours of continuous
use, DO NOT place your hands directly on
LED light source located in front of the lamp head.
3. Never use with an extension cord unless the plug can be fully inserted
into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the
consumer.
NOTE: The important safety instructions appearing in this instruction
sheet are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution, and care must
be used with any electrical product.
PL-0077T
LED Pivoting Banker's Lamp with Organizer
CAUTION!
IS DAMAGED, IT SHALL BE EXCLUSIVELY REPLACED BY THE MANUFACTURER OR ITS
SERVICE AGENT OR A SIMILAR QUALIFIED PERSON IN ORDER TO AVOID A HAZARD.
INDOOR USE ONLY.
CAUTION!
WHEN THE LIGHT SOURCE REACHES ITS END OF LIFE THE WHOLE LUMINAIRE SHALL
BE REPLACED.
FCC PART 15
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that of the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
TO REDUCE THE RISK OF FIRE, ELECTRIC
CAUTION: Any change or modification to product not expressly
recognized by OttLite Technologies voids OttLite's responsibility for
proper function of product.
CAN ICES-005 (B)/NMB-005 (B)
AC/DC ADAPTER
Input: AC 100-240V, 50/60 Hz, 0.6A
Output: 13V DC, 1.2A with a Male DC Plug
THIS LAMP CONTAINS a 5V-2.1A USB output port (Q) located on the
bottom left-side of lamp upper section (C). USB port can charge such items
as tablets, cellular phones, etc.
IF THE EXTERNAL FLEXIBLE CABLE OR CORD OF THIS LUMINAIRE
THE LIGHT SOURCE OF THIS LUMINAIRE IS NOT REPLACEABLE;
REV050819
