OttLite 2CRG5B-FFP Manual

G
E
D

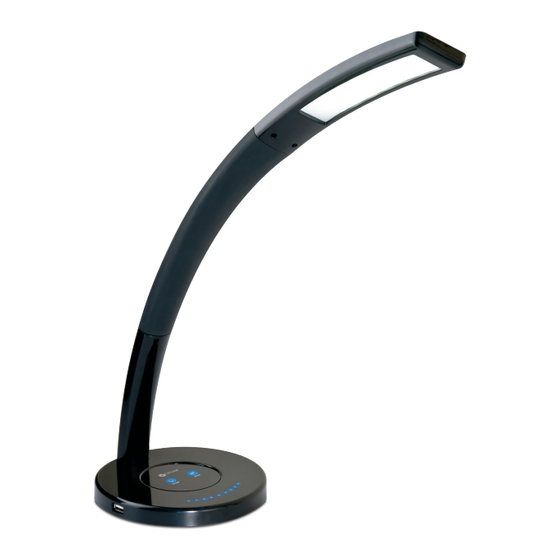

LED Cobra Desk Lamp
2CRG5B-FFP 2CR00B-FFP 2CRG5B 2CR00B
INS170391
F
K
B
C
J
A
H
A
L
English
CONGRATULATIONS!
You've purchased the finest in natural lighting technology with your new
OttLite product.
®
PRODUCT REGISTRATION FORM
Please complete the enclosed Product Registration Form and return it
today by mail, or register online by going to:
www.warranty.ottlite.com
LAMP ASSEMBLY
1. Remove lamp from packing placing both lamp assembly and base on
a solid surface such as a table.
2. Insert lamp bottom end (M) into base (A).
3. Insert screw bolts (N) through the recessed holes located in the
bottom of base (A). Screw bolts (N) can be tightened using tool (O).
NOTE: A screwdriver can also be used to tighten screw bolts (N).
4. Connect the AC Adapter input (H) into connector (J) in the rear-
bottom of the lamp.
5. Plug the A/C adapter (K) into a standard household 120V AC outlet.
Note: Only use with the supplied AC adapter to avoid damage
or fire.
6. Turn the lamp ON & OFF by using power switch in touch panel (B).
Touch panel (B) is located on lower lamp body.
7. Touch panel (B) includes multiple "touch" keys that control the
lamp's light color mode and brightness settings. This lamp provides
three color modes and nine levels of brightness. See Touch key
Instructions section for operating instructions.
8. To position the shade simply bend the flex-neck (F) as needed to
point the light. Please hold the lamp base (A) while adjusting the
lamp. Take care not to overextend the lamp to avoid unbalancing it
and damage.
Touch Key Panel Instructions:
To power lamp and operate LED color & brightness settings, slightly
M
touch the required "key" to achieve the following:
• turn lamp "ON/OFF": touch power key (C) for
"ON/OFF" operation as needed.
• To adjust lighting color mode: touch M key (D) to
switch light color temperature mode; 2700°K, 4000°K,
5000°K.
• To adjust brightness: touch individual key in brightness
control switch (E) from left to right (lower settings on
O
LEFT; higher settings on RIGHT) on front of touch
panel (B). NOTE: level of brightness can also be
N
reached by one fluid touch motion from left to right
or right to left.
SAFETY WARNING:
OR INJURY TO PERSONS
1. Turn lamp off and WAIT UNTIL LAMP HEAD (G) and
ADAPTER (K) ARE COOL before handling.
2. The LED panel located in lamp head (G) might get hot after several
hours of continuous use, DO NOT place your hands directly on LED
light panel.
3. Never use with an extension cord unless the plug can be fully
inserted into the receptacles in the extension cord.
4. Do not alter the plug.
5. The lamp head included with this unit cannot be replaced by the
consumer.
NOTE: The important safety instructions appearing in this instruction
sheet are not meant to cover all possible conditions and situations that
may occur. It must be understood that common sense, caution, and
care must be used with any electrical product.
ACDL07O
CAUTION!
DamagED, IT SHaLL bE ExCLUSIvELY REPLaCED bY THE maNUFaCTURER OR ITS SERvICE
agENT OR a SImILaR qUaLIFIED PERSON IN ORDER TO avOID a HazaRD. INDOOR USE ONLY.
FCC PART 15
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that the interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that of the receiver.
• Consult the dealer or an experienced radio/TV technician
for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Any change or modification to product not expressly
recognized by OttLite Technologies voids OttLite's responsibility for
proper function of product.
CAN ICES-005 (B)/NMB-005 (B)
AC/DC ADAPTER
Input: AC 100-240V, 50/60 Hz, 0.4A
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
Output: 5.0V DC, 3.0A with a Male DC Plug
THIS LAMP CONTAINS a 5V-2.1A USB output port (L) located on the base of
the lamp. USB port can charge such items as tablets, cellular phones, etc.
LED Cobra Desk Lamp
IF THE ExTERNaL FLExIbLE CabLE OR CORD OF THIS LUmINaIRE IS
REV083017
