Centurion D5, D5-EVO, D5-EVO Low-Voltage, D3 - Theft-resistant Manual

General Description

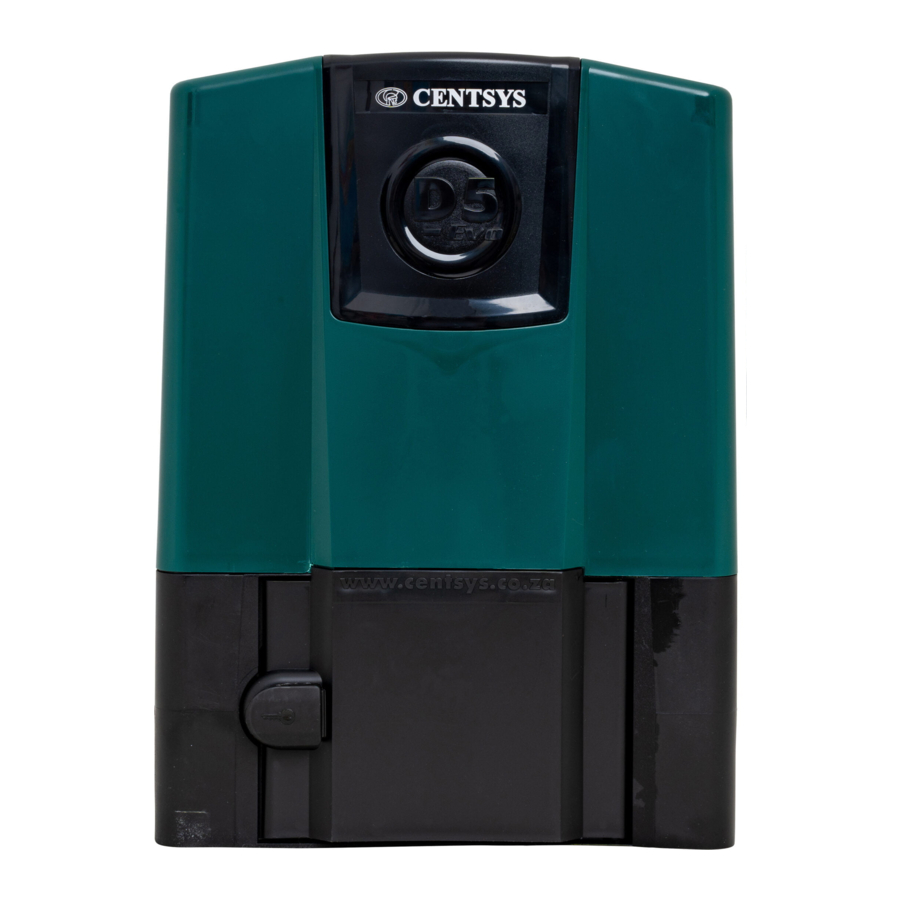

The CENTURION Theft-resistant Kit, consisting of the Theft-resistant Cage and Thumbwheel Guard, is designed to significantly reduce the risk of an intruder gaining access to the operator and increases the resistance of the unit against theft.
Designed as a complement to the Theft-resistant Cage, the Thumbwheel Guard combats a certain modus operandi of criminals whereby they insert the tip of a screwdriver into the operator's manual release access door and use it to turn the thumbwheel, thereby making it possible to push the gate open manually.
The Thumbwheel Guard can be purchased as a standalone item

Product Identification

Thumbwheel Guard
Overstrap
Bracket
Front bar

Fitting the Thumbwheel Guard

Use your key to open the access door to the manual override thumbwheel.

Ensure that the gearbox is engaged by turning the thumbwheel anti-clockwise before fitting the Thumbwheel Guard. It must not be possible to move the gate by hand.

Place the Thumbwheel Guard over the manual release thumbwheel.

Close and lock the access door again.

Take care when closing the camlock cover so as to prevent the ingress of dirt.

Fitting the Theft-resistant Cage

It is important that the Theft-resistant Cage is properly fitted as per the instructions given and that a suitable lock is fitted. Please note that a lock is not supplied in this kit. Centurion Systems recommends using an insuranceapproved padlock with a minimum throat width of 30mm. Refer to the illustration below.
Fitting the Theft-resistant Cage - Step 1

For magnetic origin operator models, relocate gate magnet as close as possible to operator cover and reset gate Limits.

Remove side vents, retaining nuts and washers. Fit a bracket to each of the left hand side retaining studs.

Re-fasten the washers and nuts to the retaining studs to secure the brackets.

Fit bracket on to the right hand side retaining stud.

Re-fasten the washer and nut to the retaining stud to secure the bracket.

Slide overstrap over motor cover, making sure it engages correctly with the brackets on both sides of the operator.

Fit the front bar to the assembly by feeding both legs of the bar through the bracket and overstrap.

With the front bar fully engaged with the overstrap, secure the assembly by locking a good quality padlock through the aligned barrel holes on the overstrap and front bar.
