- Page 1 QUICK INSTALLATION GUIDE THREE-PHASE ESS INVERTER 12K/15K/20K/25K/30K...
-
Page 2: About This Manual
About this Manual Read through this manual prior to installing or operating the product. Scope This manual applies to the inverters listed below: • 12KHB-D3 • 15KHB-D3 • 20KHB-D3 • 25KHB-T3 • 30KHB-T3 Statement All information here takes model 30KHB-T3 as reference and guidance only. The appearance may vary in different models, the actual product shall prevail. -
Page 3: Packing List

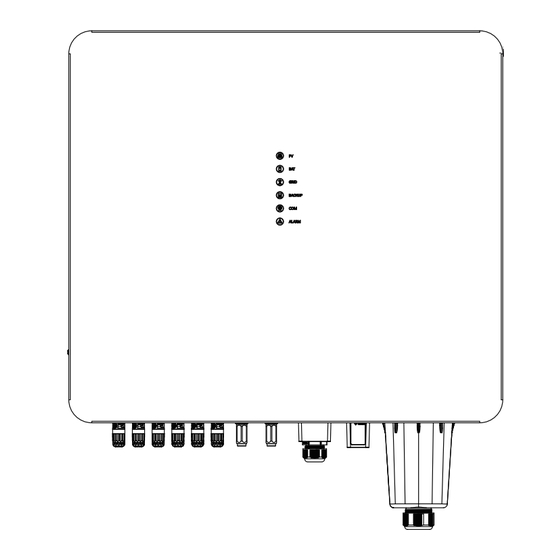

QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 1 Packing List 2 32 5 35 8 38 11 12 13 14 16 17 19 21 24 25 Number Quantity Description Number Quantity Description Inverter M10 Expansion screw File package M6 Security screw PV connector group 3-Pin terminal (female + male... - Page 4 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 2 Specification and Location Specification The Bottom View of ESS Inverter Type1: Inverter with LED Description PV switch PV Input Terminals Battery Connect Terminals COM1 Ports (RS485, BMS, DRMs/RCR, CT, NTC/DI/DO, RSD/RMO, PARAL) COM Port (WIFI/LAN) Grounding Terminals BACKUP Output Terminal...
-
Page 5: Installation
QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 3 Installation • The installation walls must be fireproof and non-flammable materials, otherwise there is a fire risk. • Before drilling holes, check whether there are electric power pipes or other pipes buried in the walls to avoid risks. The inverter is heavy! To avoid device damage and personnel injury, at least two people are recommended to move the inverter and handle with care. - Page 6 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 5 Non-Parallel Connection Wiring Diagram Ensure that the inverter and all cables to be installed have been completely powered off during the whole process of installation and connection. Otherwise, high voltage may result in fatal injury. Backup Breaker Breaker PV Array...
- Page 7 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 6 Parallel Connection Wiring Diagram-Scheme A (N=2) Ensure that the inverter and all cables to be installed have been completely powered off during the whole process of installation and connection. Otherwise, high voltage may result in fatal injury. ③...
- Page 8 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 7 Parallel Connection Wiring Diagram-Scheme B (3≤N≤10) Ensure that the inverter and all cables to be installed have been completely powered off during the whole process of installation and connection. Otherwise, high voltage may result in fatal injury. ③...
- Page 9 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K Note: 1. BMS communication connection is only for lithium battery. 2. The arrow on the CT indicates the current flow from grid to inverter. The current direction from grid to inverter is defined as positive and current direction from inverter to grid is defined as negative. L1, L2 and L3 only pass through the detection hole of CT1, CT2 and CT3 respectively.
- Page 10 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 8 GRID/BACKUP Connection • Before connecting the GRID/BACKUP terminal, ensure that both the AC terminal and the DC terminal are powered OFF and the PV switch is OFF. Otherwise there is a risk of high voltage shock. •...
- Page 11 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 9 PV Connection • Photovoltaic arrays exposed to sunlight will generate dangerous voltages! • Before connecting the PV terminal, ensure that both the AC terminal and the DC terminal are powered OFF and the PV switch is OFF.
-
Page 12: Battery Connection
QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 10 Battery Connection Before connecting the Battery terminal, ensure that both the AC terminal and the DC terminal are powered OFF and the PV switch is OFF. Otherwise there is a risk of high voltage shock. •... - Page 13 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 11 WIFI/LAN Module Installation (Optional) For details, please refer to the corresponding Module Installation Guide in the packing. NOTE The appearance of modules may be slightly different. The figure shown here is only for illustration. Insert WiFi / LAN module into the port firmly.
- Page 14 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 12 Communication Cable(s) Connection (PARAL/CT/BMS/RS485) Unscrew the waterproof cover. Loosen the nut on waterproof cover. Remove sealing plugs. RJ45-terminal PIN-terminal 1 2 3 4 5 6 7 8 8.0mm 7.5±0.5 mm Note: The recommended wire size: 0.2~0.5mm �...
- Page 15 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K PARAL 4-Pin Terminal Description GND_S Another inverterside PARA_SYNC CAN_L CAN_H Threaded sleeve 6-Pin Terminal Seal Cables Description Color CT3- (L3) Black CT3+ (L3) CT2- (L2) Black CT2+ (L2) CT1- (L1) Black CT1+ (L1) Description RS485_A 12345678...
-
Page 16: Startup/Shutdown Procedure
QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 13 Startup/Shutdown Procedure After the inverter is powered off, the remaining electricity and heat may still cause electric shock and body burns. If need to disconnect the inverter cables, please wait at least 10 minutes before touching these parts of inverter. Inspection Items The inverter is firmly installed. - Page 17 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K 14 Display Status Description PV input is normal. PV input is abnormal. Blink PV is unavailable. Battery is charging. Battery is discharging. Blink Battery is abnormal. Battery is unavailable. GRID is available and normal. GRID Blink GRID is available but abnormal.
- Page 18 QUICK INSTALLATION GUIDE Three-phase ESS Inverter 12K/15K/20K/25K/30K NOTE As the technology is constantly updated and improved, the illustrations in this document are for reference only. Contents including illustrations in this document are subject to change without notice. 614-R090277...
- Page 20 QUICK INSTALLATION GUIDE Three-phase ESS Inverter...
