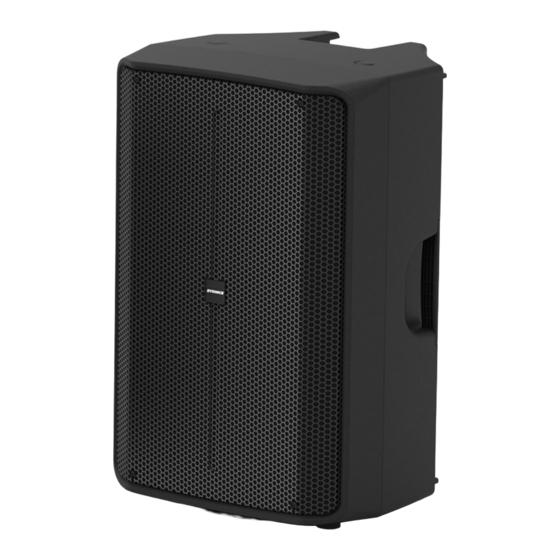

thomann SYRINCS D110SP User Manual

Active speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
D110SP, D112SP, D115SP
Active Speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYRINCS D110SP and is the answer not in the manual?

Questions and answers

Related Manuals for thomann SYRINCS D110SP

Summary of Contents for thomann SYRINCS D110SP

  • Page 1 D110SP, D112SP, D115SP Active Speaker...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 22.08.2023, ID: 523023, 523025, 523026...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Starting up..............................11 Connections and controls........................13 Technical specifications........................16 Plug and pin assignments........................26 Cleaning............................... 29 Protecting the environment......................30 D110SP, D112SP, D115SP Active Speaker...
  • Page 4 D110SP, D112SP, D115SP Active Speaker...

  • Page 5: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 7: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
  • Page 9 Safety instructions NOTICE! Damage to the device due to high voltages! The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐ tages can also cause a risk of injury and fires. Make sure that the voltage specification on the device matches the local power grid before plugging in the device.

  • Page 10: Features

    Features Features The active speaker is characterized by the following features: active full-range speaker box for PA and DJ application maximum output power 800 W or 1400 W (depending on the model) 10", 12" or 15" woofer (depending on the model) 1"...

  • Page 11: Starting Up

    Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 12 Starting up NOTICE! Potential property damage due to unsuitable stands! If the device is mounted on an unsuitable stand, there is a risk that the stand will fall over and cause damage. Only use stands whose maximum bearing capacity is at least as high as the weight of the device.

  • Page 13: Connections And Controls

    Connections and controls Connections and controls & ö 230V D110SP, D112SP, D115SP Active Speaker...
  • Page 14 The LED flashes. The Bluetooth® list of the device to be paired displays the corre‐ sponding device name as Bluetooth® name ( ‘Syrincs D110SP’ , ‘Syrincs D112SP’ or ‘Syrincs D115SP’ ). Accept the con‐ nection. After a successful connection, the LED lights up continuously.
  • Page 15 Connections and controls 11 [SIG/LIMIT] | The LED lights up yellow when a signal is detected at one of the two mic / line inputs. The LED lights up red as soon as the input level is too high on one of the channels. Make sure that the LED does not light up red for a long period of time in order to ensure optimal sound quality.

  • Page 16: Technical Specifications

    Technical specifications Technical specifications D110SP Speaker Active full-range speaker Two-way system with 1" compression driver and 10" woofer with 1.5" voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR chassis socket, 3-pin, balanced 2 ×...
  • Page 17 Technical specifications Dispersion characteristics 115° × 80° Sound pressure level (SPL), max. 123 dB Bluetooth® Frequency range 2.402 GHz … 2.480 GHz Max. transmission power 1.6 mW or +2 dBm Max. range 10 m Standard Version 5.0 Codecs PCM, ADPCM, CBR, VBR Power consumption 200 W Inrush current...
  • Page 18 Technical specifications D112SP Speaker Active full-range speaker Two-way system with 1.35" compression driver and 12" woofer with 2.5" voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR chassis socket, 3-pin, balanced 2 × ¼" jack socket, balanced Line level player 1 ×...
  • Page 19 Technical specifications Bluetooth® Frequency range 2.402 GHz … 2.480 GHz Max. transmission power 1.6 mW or +2 dBm Max. range 10 m Standard Version 5.0 Codecs PCM, ADPCM, CBR, VBR Power consumption 300 W Inrush current 25 A, 3500 µs Operating supply voltage 110/230 V 50/60 Hz...
  • Page 20 Technical specifications D115SP Speaker Active full-range speaker Two-way system with 1.35" compression driver and 15" woofer with 2.5" voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR chassis socket, 3-pin, balanced 2 × ¼" jack socket, balanced Line level player 1 ×...
  • Page 21 Technical specifications Bluetooth® Frequency range 2.402 GHz … 2.480 GHz Max. transmission power 1.6 mW or +2 dBm Max. range 10 m Standard Version 5.0 Codecs PCM, ADPCM, CBR, VBR Power consumption 300 W Inrush current 25 A, 3500 µs Operating supply voltage 110/230 V 50/60 Hz...
  • Page 22 Technical specifications Frequency response D110SP Stage Monitor Live Vocal Boost Standard D110SP, D112SP, D115SP Active Speaker...
  • Page 23 Technical specifications Frequency response D112SP dBSPL Stage Monitor Live Vocal Boost Standard 20 Hz D110SP, D112SP, D115SP Active Speaker...
  • Page 24 Technical specifications Frequency response D115SP dBSPL Stage Monitor Live Vocal Boost Standard 20 Hz D110SP, D112SP, D115SP Active Speaker...
  • Page 25 Technical specifications Further information Multifunctional housing Tripod flange Monitor wedge Simultaneous inputs Mic preamps Tone control per channel Master tone control Bluetooth®-Play Bluetooth®-Control USB player SD card player Low Cut Ground Lift Truss-capable D110SP, D112SP, D115SP Active Speaker...

  • Page 26: Plug And Pin Assignments

    Plug and pin assignments Plug and pin assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 27 Plug and pin assignments 1/4" TRS phone plug (stereo, unbalanced) Signal (left) Signal (right) Ground 3.5 mm TRS phone plug (mono, balanced) Signal (in phase, +) Signal (out of phase, –) Ground Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding D110SP, D112SP, D115SP...
  • Page 28 Plug and pin assignments XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) D110SP, D112SP, D115SP Active Speaker...

  • Page 29: Cleaning

    Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth.

  • Page 30: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
