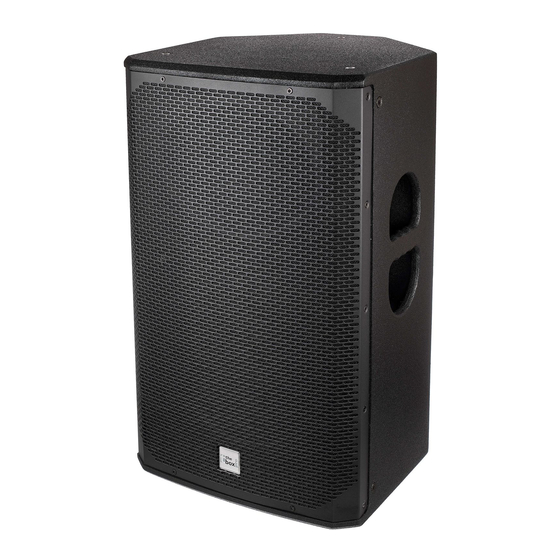

- Page 1 DSX 110, DSX 112, DSX 115 active speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 03.09.2019, ID: 471967, 471968, 471969...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 14 Starting up..............................15 Connections and controls........................17 DSP functions............................23 Technical specifications........................25 Plug and connection assignment.................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. active speaker... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’... - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – danger zone. active speaker...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 10 Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 11 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 12 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 14: Features
Features Features The 2-way active speaker is characterized by the following features: 2-way active speaker box for PA and DJ application maximum output power 1400 W (DSX 110) or 2000 W (DSX 112, DSX 115) 10-inch woofer (DSX 110), 12-inch woofer (DSX 112) or 15-inch woofer (DSX 115) 1"... -
Page 15: Starting Up
Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 16 Starting up The unit can be mounted on a tripod or set up on the floor or a sufficiently sized and stable surface. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
-
Page 17: Connections And Controls
Connections and controls Connections and controls Model DSX 110 DSX 110, DSX 112, DSX 115... - Page 18 Connections and controls 1 [DSP] backlit display for DSP functions 2 [MASTER | PUSH FOR DSP] Rotary control for the overall volume, push button for activating the DSP functions 3 [INPUT 1] Mic / Line input 1, designed as XLR / 1/4" combo socket, balanced 4 MAX INPUT 1 Rotary gain control for input 1.
- Page 19 Connections and controls 7 [OUTPUT] Line output, designed as XLR chassis plug. The combined signal of both inputs is present here, unaffected by DSP. 8 [AUX IN] 3.5 mm phone socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined. 9 [POWER INPUT] IEC chassis plug with fuse holder for the power supply 10 [AUTO Stand-by]...
- Page 20 Connections and controls Model DSX 112, DSX 115 active speaker...
- Page 21 Connections and controls 1 [DSP] backlit display for DSP functions 2 [MASTER | PUSH FOR DSP] Rotary control for the overall volume, push button for activating the DSP functions 3 [INPUT 1] Mic / Line input 1, designed as XLR / 1/4" combo socket, balanced 4 MAX INPUT 1 Rotary gain control for input 1.
- Page 22 Connections and controls 7 [OUTPUT] Line output, designed as XLR chassis plug. The combined signal of both inputs is present here, unaffected by DSP. 8 [AUX IN] 3.5 mm phone socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined. 9 [POWER INPUT] IEC chassis plug with fuse holder for the power supply 13 [POWER]...
-
Page 23: Dsp Functions
DSP functions DSP functions Sound programmes Press the button once during operation [MASTER | PUSH FOR DSP] to call up the unit's DSP func‐ tion ‘Sound Programme’ . ‘MUSIC’ appears in the display. Press again the button [MASTER | PUSH FOR DSP] to enable this function. Or turn the knob to select another sound pro‐ gramme ‘LIVE’... - Page 24 DSP functions Low-Cut filter Press the button [MASTER | PUSH FOR DSP] four times during operation to call up the unit's DSP function ‘High Pass Filter’ . ‘80 Hz’ (frequency attenuation below 80 Hz) appears in the display. Press again the button [MASTER | PUSH FOR DSP] to enable this function. Or turn the knob to select another cut-off frequency ‘100 Hz’...
-
Page 25: Technical Specifications
Technical specifications Technical specifications DSX 110 Speaker Active full-range speaker Two-way system with 1" compression driver and 10-inch woofer with 2-inch voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR / jack combo socket, balanced Line level player 1 ×... - Page 26 Technical specifications Dispersion characteristics 90 × 60° Sound pressure level (SPL), max. 121 dB Power consumption 310 W Operating supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 3.15 A, 250 V, slow-blow Dimensions (W × H × D) 375 mm ×...
- Page 27 Technical specifications DSX 112 Speaker Active full-range speaker Two-way system with 1-inch compression driver and 12-inch woofer with 2.36-inch voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR / jack combo socket, balanced Line level player 1 ×...
- Page 28 Technical specifications Sound pressure level (SPL), max. 128 dB Power consumption 380 W Operating supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 3.15 A, 250 V, slow-blow Dimensions (W × H × D) 460 mm × 695 mm × 450 mm Weight 19.1 kg Ambient conditions...
- Page 29 Technical specifications DSX 115 Speaker Active full-range speaker Two-way system with 1-inch compression driver and 15-inch woofer with 3-inch voice coil Amp class Class-D & Class-AB power stage Input connections Mic / Line 2 × XLR / jack combo socket, balanced Line level player 1 ×...
- Page 30 Technical specifications Sound pressure level (SPL), max. 136 dB Power consumption 430 W Operating supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 3.15 A, 250 V, slow-blow Dimensions (W × H × D) 510 mm × 795 mm × 495 mm Weight 23.6 kg Ambient conditions...
- Page 31 Technical specifications Further information DSX 110 DSX 112 DSX 115 Multifunctional housing Tripod flange Truss-capable Woofers 1 × 10 inch 1 × 12 inch 1 × 15 inch Tweeter 1" and above DSX 110, DSX 112, DSX 115...
-
Page 32: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 33 Plug and connection assignment In a professional environment, therefore, the balanced transmission is preferred, because this enables an undisturbed transmission of signals over long distances. In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°.
- Page 34 Plug and connection assignment 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) active speaker...
- Page 35 Plug and connection assignment XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 DSX 110, DSX 112, DSX 115...
-
Page 36: Cleaning
Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth. -
Page 37: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 38 Notes active speaker...
- Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
