thomann the box pro DSP 108 User Manual

Hide thumbs Also See for the box pro DSP 108:
Table of Contents

Advertisement

Quick Links

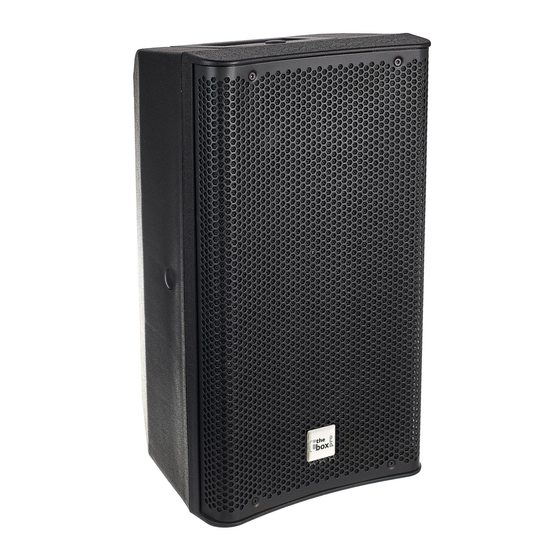

DSP 108, 110, 112, 115
Active speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the the box pro DSP 108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann the box pro DSP 108

Summary of Contents for thomann the box pro DSP 108

  • Page 1 DSP 108, 110, 112, 115 Active speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 10.12.2019, ID: 401528, 401529, 401530, 454510 (V4)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Starting up..............................13 Connections and controls........................15 DSP functions............................22 Technical specifications........................24 Plug and connection assignment....................

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Active speaker...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 12: Features

    Features Features The 2-way active speaker is characterized by the following features: 2-way active speaker box for PA and DJ application Load capacity 800 W, 1000 W, 1200 W or 1400 W (depending on the model) 8", 10", 12 or 15" mid-low transducers (depending on the model) 1"...

  • Page 13: Starting Up

    Starting up Starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 14 Starting up The unit can be mounted on a tripod or set up on the floor or a sufficiently sized and stable surface. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.

  • Page 15: Connections And Controls

    Connections and controls Connections and controls Model DSP 108 DSP 108, 110, 112, 115...
  • Page 16 Connections and controls Model DSP 110 Active speaker...
  • Page 17 Connections and controls Model DSP 112 DSP 108, 110, 112, 115...
  • Page 18 Connections and controls Model DSP 115 Active speaker...
  • Page 19 Connections and controls 1 [DSP] backlit display for DSP functions 2 [INPUT 1] Mic / Line input 1, designed as XLR / 1/4" combo socket, balanced 3 [AUX IN] 3.5 mm jack socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined. 4 [OUTPUT] Line output, designed as XLR chassis plug.
  • Page 20 Connections and controls 8 MAX INPUT 1 Rotary gain control for input 1. Turning clockwise increases the input gain for connecting microphones. Turning counterclockwise decreases the input gain for connecting instruments or devices with line level outputs. 9 MAX INPUT 2 Rotary gain control for input 2.
  • Page 21 Connections and controls 13 LED [AUTO Stand-by] (DSP 108, DSP 110, DSP 112) This LED lights when the automatic shutdown function is turned on. 14 [POWER ON / OFF] Mains switch DSP 108, 110, 112, 115...

  • Page 22: Dsp Functions

    DSP functions DSP functions Sound programmes Press [MASTER VOL | PUSH FOR DSP] once during operation to call up the unit's DSP function ‘Sound Programme’ . ‘MUSIC’ appears in the display. Press again [MASTER VOL | PUSH FOR DSP] to enable this function. Or turn the knob to select another sound programme ‘LIVE’ , ‘VOICE’ or ‘DJ’...
  • Page 23 DSP functions Low-Cut filter Press [MASTER VOL | PUSH FOR DSP] four times during operation to call up the unit's DSP func‐ tion ‘High Pass Filter’ . ‘80 Hz’ (frequency attenuation below 80 Hz) appears in the display. Press again [MASTER VOL | PUSH FOR DSP] to enable this function. Or turn the knob to select another cut-off frequency ‘100 Hz’...

  • Page 24: Technical Specifications

    Technical specifications Technical specifications DSP 108 Speaker Active full-range speaker Two-way system with 1" compression driver with 1.4" voice coil and 8" woofer Amplifier class Class-D & Class-AB power amplifier Input connections Mic / Line 2 × XLR / 1/4" jack combi socket, balanced Line level source 1 ×...
  • Page 25 Technical specifications Sound pressure level (SPL), max. 124 dB Power consumption 230 W Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 6 A, 250 V, slow-blow Dimensions (W × H × D) 275 mm × 487 mm × 270 mm Weight 6.7 kg Ambient conditions...
  • Page 26 Technical specifications DSP 110 Speaker Active full-range speaker Two-way system with 1" compression driver with 1.4" voice coil and 10" woofer Amplifier class Class-D power amplifier Input connections Mic / Line 2 × XLR / 1/4" jack combi socket, balanced Line level source 1 ×...
  • Page 27 Technical specifications Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow-blow Dimensions (W × H × D) 298 mm × 523 mm × 307 mm Weight 13 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non condensing...
  • Page 28 Technical specifications DSP 112 Speaker Active full-range speaker Two-way system with 1" compression driver with 1.4" voice coil and 12" woofer Amplifier class Class-D power amplifier Input connections Mic / Line 2 × XLR / 1/4" jack combi socket, balanced Line level source 1 ×...
  • Page 29 Technical specifications Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 3.15 A, 250 V, slow-blow Dimensions (W × H × D) 348 mm × 607 mm × 355 mm Weight 14.6 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non condensing...
  • Page 30 Technical specifications DSP 115 Speaker Active full-range speaker Two-way system with 1" compression driver with 1.75" voice coil and 15" woofer Amplifier class Class-D power amplifier Input connections Mic / Line 2 × XLR / 1/4" jack combi socket, balanced Line level source 1 ×...
  • Page 31 Technical specifications Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 3.15 A, 250 V, slow-blow Dimensions (W × H × D) 420 mm × 695 mm × 395 mm Weight 20 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non condensing...
  • Page 32 Technical specifications Further information DSP 108 DSP 110 DSP 112 DSP 115 Multifunction housing Pole mount flange Suitable for flying operation Configuration of the woofers 1 × 8" 1 × 10" 1 × 12" 1 × 15" Tweeter 1” and larger Active speaker...

  • Page 33: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 34 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
  • Page 35 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 DSP 108, 110, 112, 115...

  • Page 36: Cleaning

    Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth.

  • Page 37: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 38 Notes Active speaker...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...

This manual is also suitable for:

The box pro dsp 110The box pro dsp 112The box pro dsp 115
