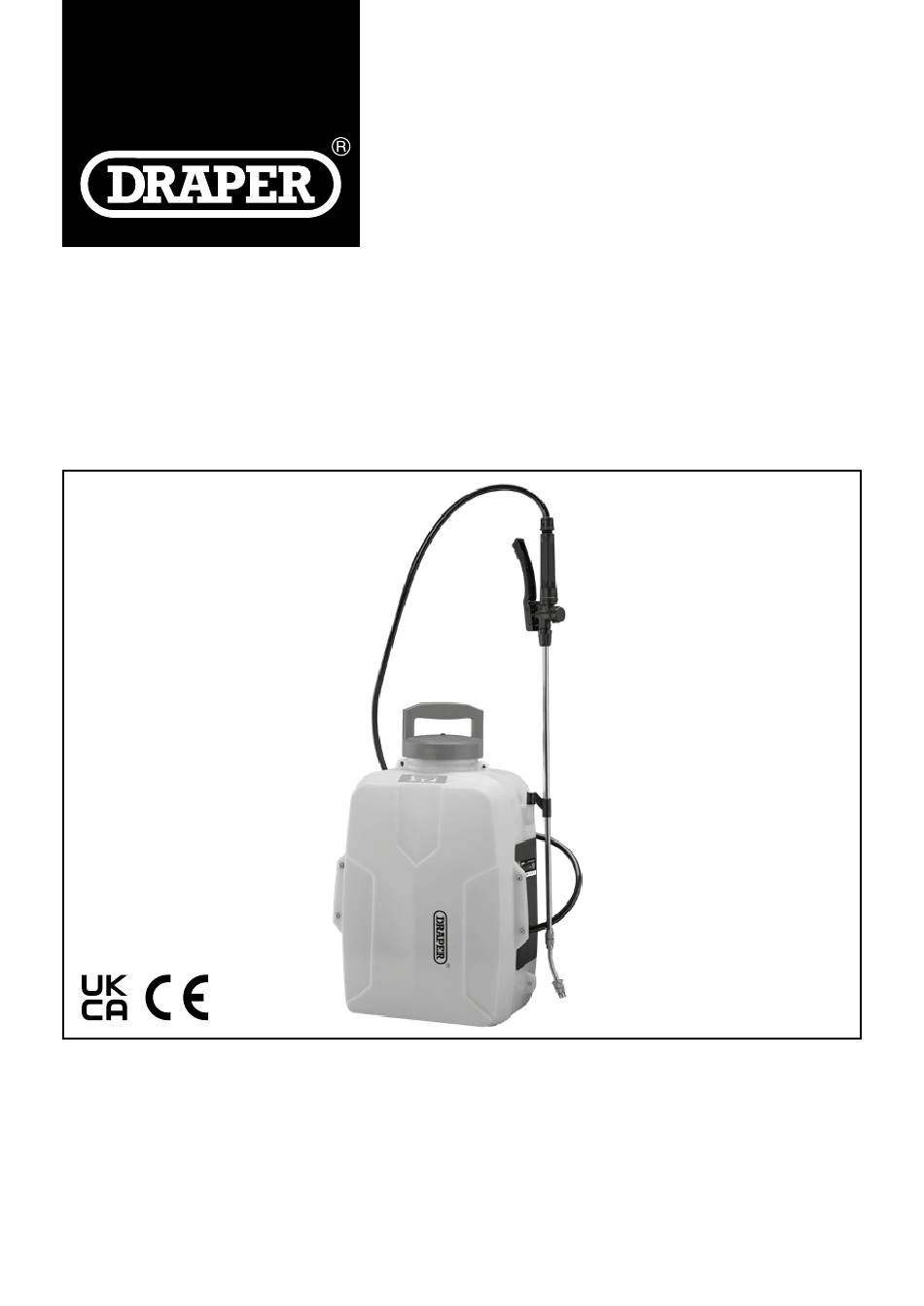

20V 12L
BACKPACK SPRAYER
08096
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions
before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
ORIGINAL
LANGUAGE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper D20G/BS13L
Summary of Contents for Draper D20G/BS13L
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION: ......................2 REVISIONS: ......................... 2 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ........... 2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 4 INTRODUCTION SCOPE ......................... 5 SPECIFICATION ......................5 HANDLING AND STORAGE.................. -
Page 4: Warranty 3.1 Warranty
WARRANTY WARRANTY Draper power tools have been carefully tested & inspected and are guaranteed to be free from defective materials or workmanship. For details of warranty and terms and conditions please visit the Draper Tools website at www.drapertools.com/warranty – 4 –... -
Page 5: Introduction
Any application other than that it was intended for, is considered misuse. SPECIFICATION Stock no...........................08096 Part no...........................D20G/BS13L Rated voltage ..........................20V Pressure ........................50.75PSI/72.5PSI Liquid Flow ........................1.2L per minute Max. spray distance ........................7.6m Working capacity ..........................12L... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 7 HEALTH AND SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
- Page 8 HEALTH AND SAFETY INFORMATION Important safety instructions for battery cartridge a) Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. b) Do not disassemble battery cartridge. c) If operating time has become excessively shorter, stop operating immediately. It may result in a risk of over-heating, possible burns and even an explosion.
-
Page 9: Technical Description
TECHNICAL DESCRIPTION IDENTIFICATION (10) (12) (11) (1) Tank Cover Backpack Belt Handle of Sprayer Gun Battery Pack Cartridge Switch Trigger (10) ON/OFF Switch Hose (11) Battery Volume Indicator Locking Hook (12) Backpack Cushion Plastic Lance (13) Tank Hang Hook – 9 –... -
Page 10: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Preparing The Backpack Sprayer
PREPARING THE BACKPACK SPRAYER MOUNTING THE PLASTIC SPRAY HEAD AND SPRAY LANCE - Figs 1, 2 & 3 − The machine has four different spray heads supplied in the accessories. − To mount the spray head onto the lance, align the axis of spray head and lance, slide the nut onto the thread coupling and hand tighten securely. -
Page 12: Mounting And Adjust The Metal Spray Lance
PREPARING THE BACKPACK SPRAYER MOUNTING AND ADJUST THE METAL SPRAY LANCE – FIGS. 4 & 5 − To mount the metal spray lance, align the axis of spray lance and spray handle, then turn the middle screw of the clockwise and fasten. (see fig. -
Page 13: Mounting And Adjusting The Backpack Strap
PREPARING THE BACKPACK SPRAYER MOUNTING AND ADJUSTING THE BACKPACK STRAP – FIGS. 6, 7,8 − Mounting the strap onto the tank via four metal hooks on the strap. See fig.6. − The strap can be adjusted according the different people’s body. If you feel too tighten, it can be adjusted by loosen the belt to extend and then fasten. -
Page 14: Operation
OPERATION FILLING THE TANK – FIGS. 9 & 10 WARNING − Before filling the tank, always remove the battery pack and ensure the battery cover is closed. Wipe up any spills before inserting the battery pack. Following this rule will reduce the risk of electric shock and corrosive liquids entering the battery pack, which can cause battery pack failure including short circuit... -
Page 15: Mounting The Battery Pack
OPERATION MOUNTING THE BATTERY PACK – FIGS. 11 & 12 CAUTION Before mounting the battery pack, make sure the tank is clean and dry especially on the battery cover and battery cartridge. If needed, wipe off any dirt or spilled water. −... -
Page 16: Locking On The Handle Trigger
OPERATION LOCKING ON THE HANDLE TRIGGER – FIG. 15 − The lock-on feature is convenient when spraying for an extended period of time or when covering a large area. − To lock-on, squeeze the trigger and slide the locking tab forward to hook it up. −... -
Page 17: Maintenance And Troubleshooting
10. MAINTENANCE AND TROUBLESHOOTING 10.1 WARNING − To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. − When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. -
Page 18: General Maintenance
10. MAINTENANCE AND TROUBLESHOOTING 10.3 GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. WARNING: Do not at any time let brake fluids, gasoline, penetrating oils, etc., come in contact with plastic parts. -
Page 19: Cleaning The Spray Heads
10. MAINTENANCE AND TROUBLESHOOTING 10.6 CLEANING THE SPRAY HEADS If the nozzle becomes plugged, use the steps below to clear. − Remove the battery pack. − Unscrew and remove the spray head from the spray lance. − Push a small wire through the cross holes to clear any debris. If necessary, rinse the cross holes and nozzle with clean water. -
Page 20: Explanation Of Symbols
11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Never open the pump when Do not spray on windy days. under pressure. Do not leave the sprayer Wash hands and face after use. exposed to heat sources or intense cold. Do not leave pump within the Do not use for spraying food reach of children. -
Page 21: Disposal
12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 22 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
