Draper 63109 Instructions

10l vehicle pressure sprayer

Download this manual

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE

SAFE AND EFFECTIVE USE OF THIS PRODUCT.

INSTRUCTIONS

These instructions accompanying the product are the original instructions. This document is part of the product,

keep it for the life of the product passing it on to any subsequent holder of the product. Read all these

instructions before assembling, operating or maintaining this product.

This manual has been compiled by Draper Tools describing the purpose for which the product has been

designed, and contains all the necessary information to ensure its correct and safe use. By following all the

general safety instructions contained in this manual, it will ensure both product and operator safety, together

with longer life of the product itself.

AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the

product.

Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper

Tools policy of continuous improvement determines the right to make modifications without prior warning.

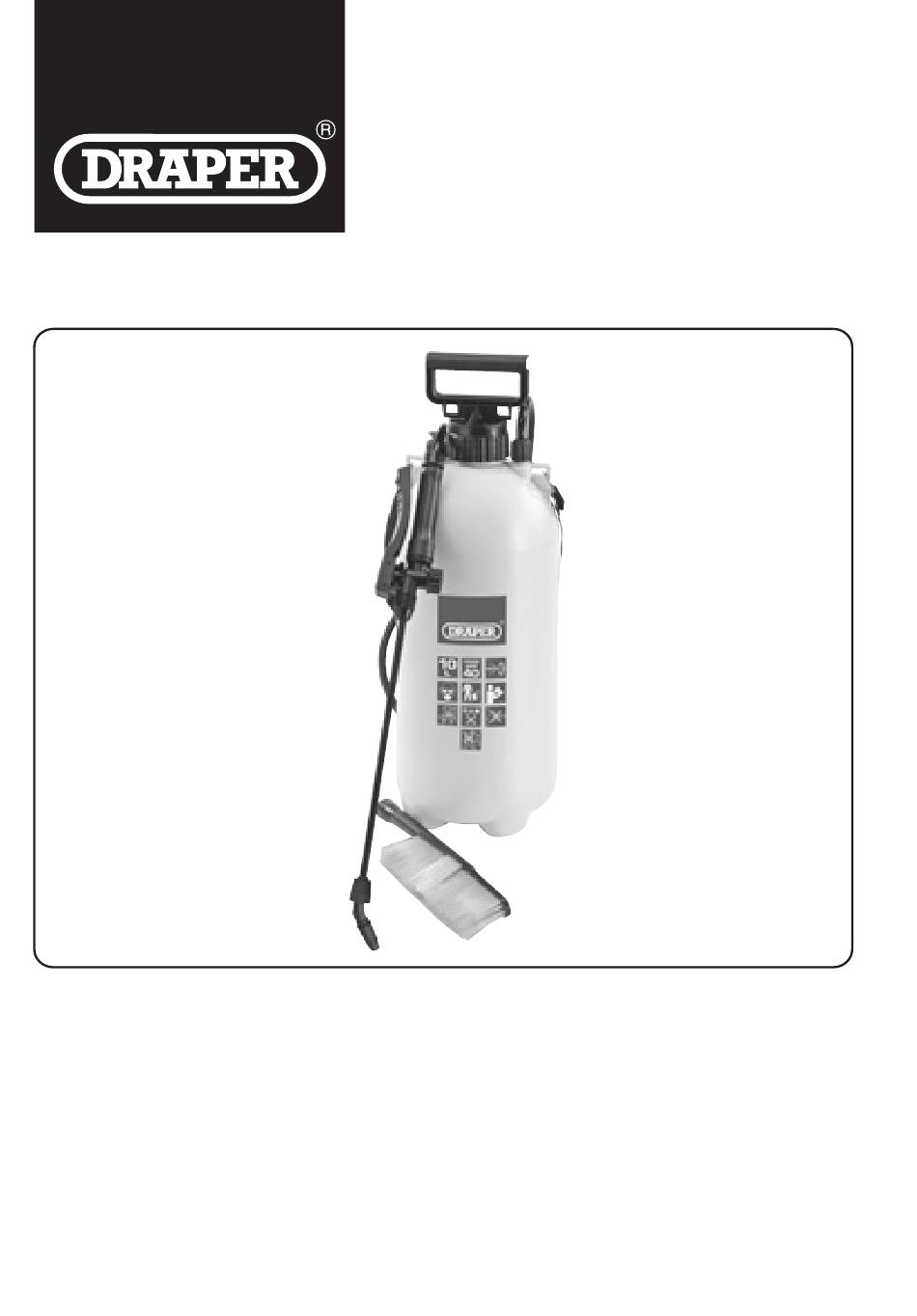

10L VEHICLE

PRESSURE

SPRAYER

63109

Need help?

Do you have a question about the 63109 and is the answer not in the manual?

Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Page 2 SPECIFICATION 1.1 SCOPE Suitable for cleaning vehicles, trailers, boats and bicycles. 1.2 SPECIFICATION Stock no..........................63109 Part no..........................VPS8/B Bottle capacity ........................10L Working capacity ........................8L HEALTH & SAFETY INFORMATION 2.1 GENERAL SAFETY WARNINGS WARNING: READ and UNDERSTAND the instructions completely before using these sprayers.
Page 3 OPERATION AND USE 1. Unscrew the pump handle in 2. Fill with the desired liquid < 25ºC MAX. an anticlockwise direction. to the Max fill line as shown on bottle. 3. Screw the pump handle back 4. Pump the sprayer about Max.30 down in a clockwise direction.
Page 4 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.

Vps8/b
