Draper DAT-HASG600 Original Instructions Manual

Hvlp air paint spray gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN

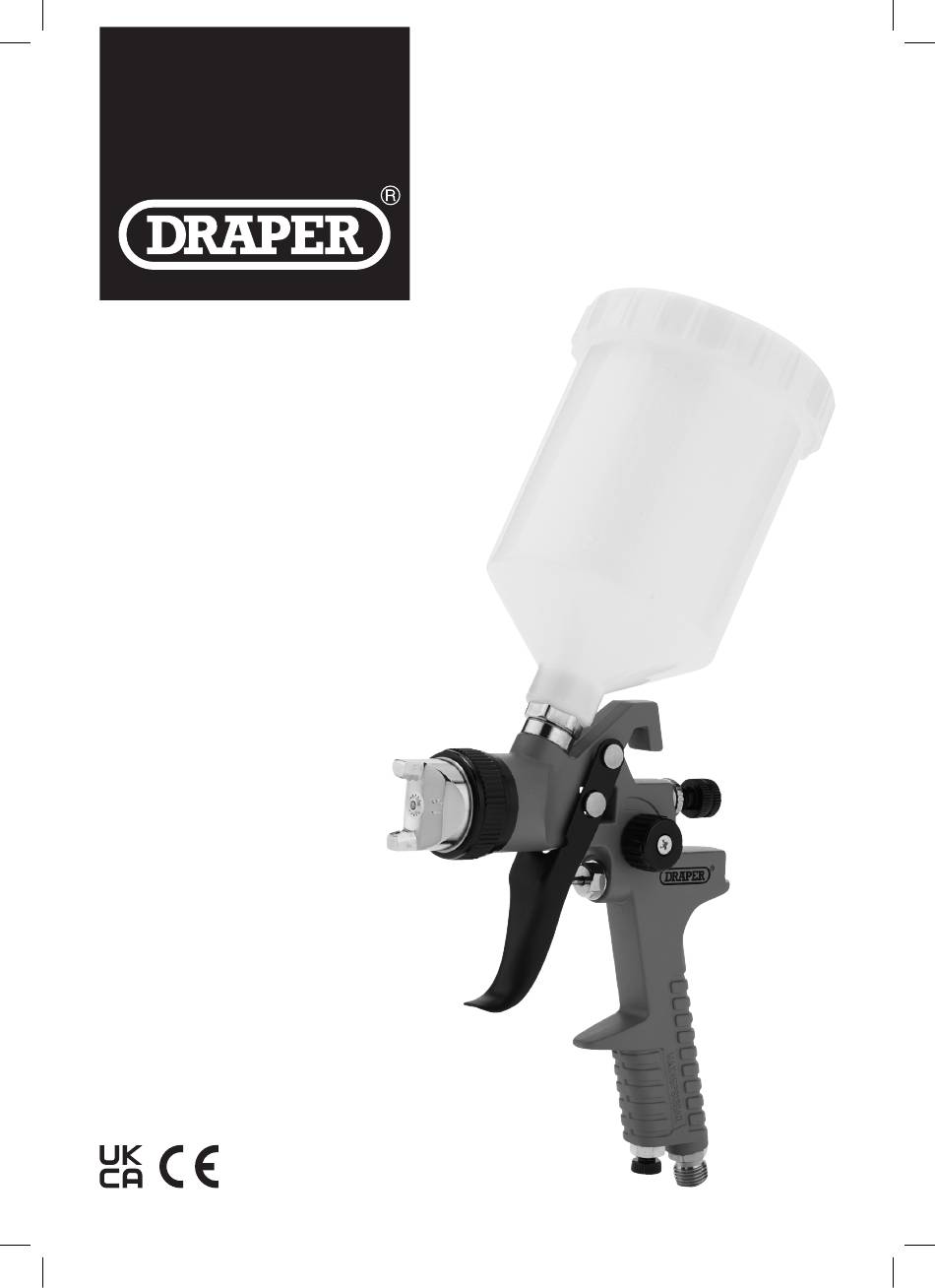

Original Instructions
Version 1
HVLP AIR
PAINT SPRAY
GUN
28367

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAT-HASG600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper DAT-HASG600

Summary of Contents for Draper DAT-HASG600

  • Page 1 Original Instructions Version 1 HVLP AIR PAINT SPRAY 28367...

  • Page 2: Product Reference

    All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product.

  • Page 3: Table Of Contents

    2. Contents 1. Preface Troubleshooting Product Reference 10. Returns and Disposal Revisions 11. Explanation of Symbols Understanding the Safety Content Copyright © Notice 2. Contents 3. Warranty 4. Product Introduction Scope Specification 5. Health and Safety Information General Health and Safety Precautions Additional Safety Instructions for Air Tools 6.

  • Page 4: Warranty

    This warranty period covers parts and labour for six months from the date of purchase. Your Draper Tools guarantee is not effective until you can Where tools have been hired out, the warranty period produce, upon request, a dated receipt or invoice to covers 90 days from the date of purchase.

  • Page 5: Product Introduction

    Read this manual in full before attempting to assemble, operate or maintain the product, and retain it for later use. 4.2 Specification Stock No. 28367 Part No. DAT-HASG600 Nozzle size 1.3/1.4/2.2mm Cup capacity 600ml Max. operating air pressure 3bar (45psi) Air inlet 1/4"...

  • Page 6: Health And Safety Information

    • NEVER carry the tool by the hose. Important: DO NOT use this product if it is damaged • Some parts of the spray gun may become hot during in any way. Contact Draper Tools to discuss repair and use. replacement options.
  • Page 7 5. Health and Safety Information WARNING! The use of solvents that contain halogenated hydrocarbons in pressurised systems with aluminium or galvanised parts may cause chemical reactions that result in an explosion. This product contains components that will be affected by the presence of halogenated hydrocarbons.

  • Page 8: Identification And Unpacking

    6. Identification and Unpacking 6.1 Product Overview (11) (10) (13) (12) Air cap Nozzle Air cap lock ring Paint cup Air control dial (10) Spray control dial Fluid control dial (11) Spray direction control Fluid control lock nut (12) Spray gun air line inlet Fluid needle (13) Trigger Hanging hook...

  • Page 9: What's In The Box

    If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. (H1)

  • Page 10: Preparation Instructions

    7. Preparation Instructions Important: Before using this product, read and Water in the compressor tank may cause considerable understand all the safety instructions listed in this corrosion to air tools; the compressor should be drained manual. daily to avoid excessive water in the air supply. Dirty or wet air can significantly shorten the lifespan of the 7.1 Preparing the Air Supply for Use product.

  • Page 11: Cleaning The Product And Accessories Before First Use

    7. Preparation Instructions 7.2 Cleaning the Product and Accessories 7.3 Setting the Nozzle Size Before First Use The spray gun is supplied with two nozzle sizes. To change the nozzle size, the installed nozzle assembly Before first use, the spray guns must be cleaned must be removed and replaced with the appropriate thoroughly to remove any oil, grease, and the protective parts.

  • Page 12: Assembly, Filling And Connection To The Air Supply

    7. Preparation Instructions 7.4 Assembly, Filling and Connection to the Air Supply (15) Important: It is recommended to use a 1/4" BSP thread whip hose (Stock No. 54438) to connect the spray gun to an air line in order to reduce vibration. Fig.
  • Page 13 7. Preparation Instructions (12) Fig. 8  3. Wrap a length of PTFE tape around the spray gun air line inlet (12) (Fig. 8). Important: For a more secure seal, the PTFE tape should be wrapped in the opposite direction to the thread.

  • Page 14: Operating Instructions

    8. Operating Instructions 8.2 The Fluid Control Dial Important: Before using this product, read and understand all the safety instructions listed in this manual. DO NOT make any adjustments to the spray gun while the trigger is depressed. 8.1 The Air Control Dial Fig.

  • Page 15: The Spray Control Dial

    8. Operating Instructions 8.3 The Spray Control Dial 8.4 The Air Cap (19) (17) (18) (10) Fig. 12  Fig. 13  The spray control dial (10) adjusts the shape of the paint The air cap (1) has three types of opening that affect the jet released from the nozzle.

  • Page 16: The Trigger

    (Fig. 15). Important: Draper Tools recommends that you test the • DO NOT rock or pivot the spray gun as this will deliver spray output on an area of scrap material before working uneven coverage of the surface.

  • Page 17: Maintenance And Troubleshooting

    9. Maintenance and Troubleshooting Important: Read all the Health and Safety information in 3. Clean the air cap and nozzle head: this manual before attempting to maintain this product. a. Remove the air cap (1) and nozzle head (14) All maintenance should be carried out ONLY by (see 7.3 Setting the Nozzle Size).

  • Page 18: 9.4 Troubleshooting

    The nozzle head or fluid needle is Replace the nozzle head or fluid damaged. needle as appropriate. Contact Draper Tools for repair and replacement options. Clean the air cap (see 9.2) and The spray gun delivers a curved or The openings in the air cap or one-sided spray pattern.
  • Page 19 Clean the air cap (see 9.2) or The openings in the air cap are clogged or damaged. replace the part if necessary. Contact Draper Tools for repair and replacement options. The centre of the spray pattern is The fluid viscosity is not appropriate...

  • Page 20: Returns And Disposal

    Store these materials in suitable containers and dispose of them in accordance with local regulations. Draper Tools and its agents cannot be responsible for the disposal of these substances. At the end of its working life, dispose of the product responsibly and in line with local regulations.

  • Page 21: Explanation Of Symbols

    11. Explanation of Symbols 1/4" Air inlet Read the instruction manual Warning! Max. operating air pressure (example) Air inlet diameter Do not incinerate or throw onto fire 33mm Max. fluid capacity Do not abandon in the environment Wear suitable eye protection and Supplied air cap sizes breathing apparatus Wear ear defenders...
  • Page 22 Notes – 22 –...
  • Page 23 Notes – 23 –...
  • Page 24 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited...

This manual is also suitable for:

28367
