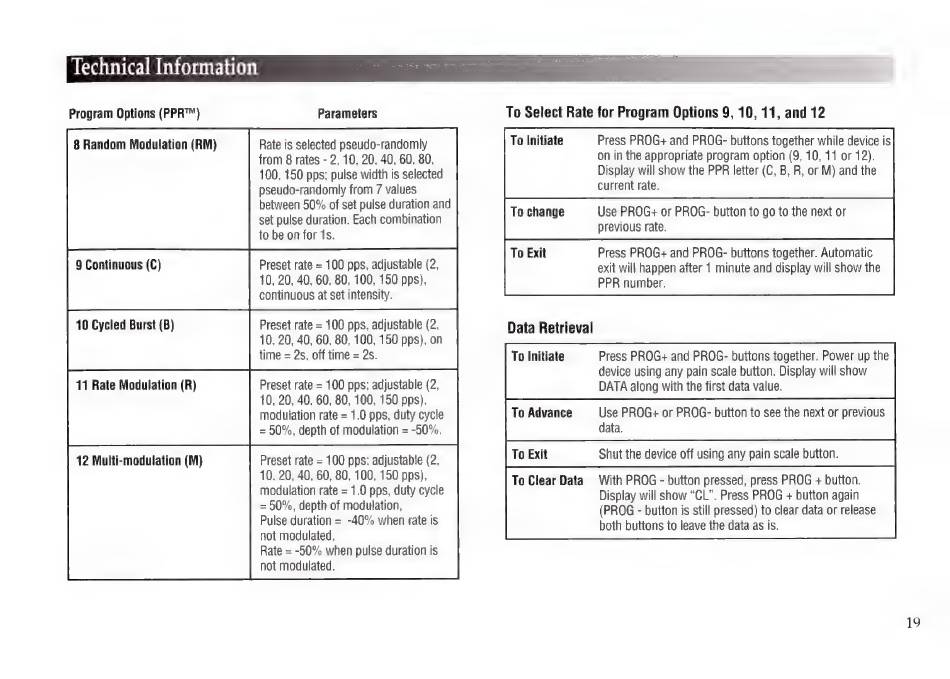

Technical Information
Program Options (PPR™)
8 Random Modulation (RM)
9 Continuous (C)
10 Cycled Burst (B)
11 Rate Modulation (R)
12 Multi-modulation (M)
Parameters
Rate is selected pseudo-randomly
from 8 rates - 2, 10, 20, 40, 60, 80,
100, 150 pps; pulse width is selected
pseudo-randomly from 7 values
between 50% of set pulse duration and
set pulse duration. Each combination
to be on for 1s.
Preset rate = 100 pps, adjustable (2,
10, 20, 40, 60, 80, 100, 150 pps),
continuous at set intensity.
Preset rate = 100 pps, adjustable (2,
10, 20, 40, 60, 80, 100, 150 pps), on
time = 2s, off time = 2s.
Preset rate = 100 pps; adjustable (2,
10, 20, 40, 60, 80, 100, 150 pps),
modulation rate = 1.0 pps, duty cycle
= 50%, depth of modulation = -50%.
Preset rate = 100 pps; adjustable (2,
10, 20, 40, 60, 80, 100, 150 pps),
modulation rate = 1.0 pps, duty cycle
= 50%, depth of modulation,
Pulse duration = -40% when rate is
not modulated,
Rate = -50% when pulse duration is
not modulated.
To Select Rate for Program Options 9, 10, 11, and 12
To Initiate Press PROG+ and PROG- buttons together while device is
on in the appropriate program option (9, 10, 11 or 12).
Display will show the PPR letter (C, B, R, or M) and the
current rate.
To change Use PROG+ or PROG- button to go to the next or
previous rate.
To Exit Press PROG+ and PROG- buttons together. Automatic
exit will happen after 1 minute and display will show the
PPR number.
Data Retrieval
To Initiate Press PROG+ and PROG- buttons together. Power up the
device using any pain scale button. Display will show
DATA along with the first data value.
To Advance Use PROG+ or PROG- button to see the next or previous
data.
To Exit Shut the device off using any pain scale button.
To Clear Data With PROG - button pressed, press PROG + button.
Display will show "CL". Press PROG + button again
(PROG - button is still pressed) to clear data or release
both buttons to leave the data as is.
