Summary of Contents for Empi Select

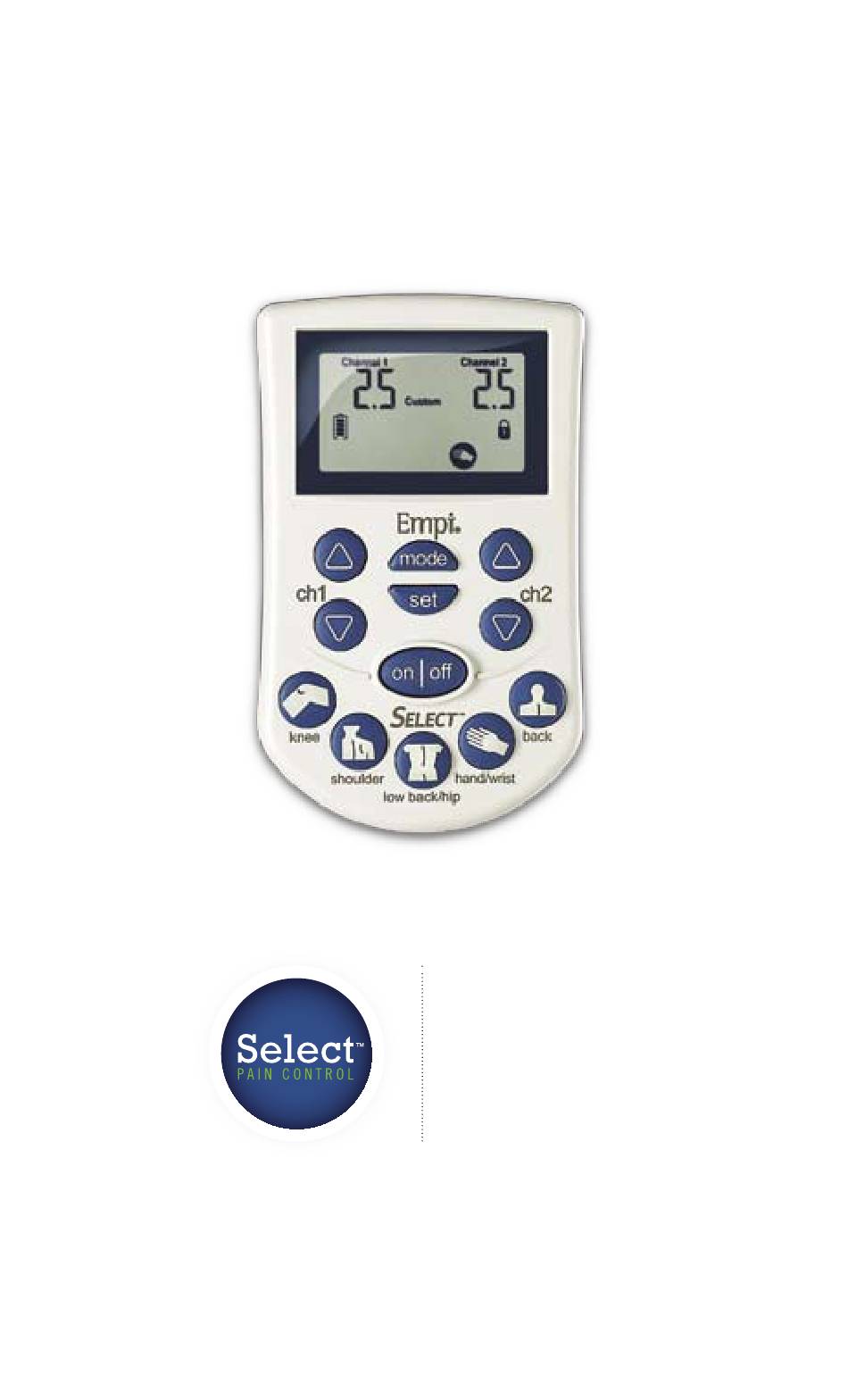

- Page 1 User’s Manual...
- Page 2 CAUTION: Federal Law (USA) restricts this device to sale by or on the order of a physician (or licensed practitioner). The following symbols may be located on the back of the Select stimulator: Type BF Applied Part Attention, consult accompanying documents...
-
Page 3: Table Of Contents
How Select Works ........ - Page 4 To Select Parameters for Programs ........
- Page 5 Select User’s Manual...
-
Page 6: Introduction
Unlike drugs and topical ointments, TENS does not have any systemic side effects. How Does TENS Control Pain? The Select provides pain relief in two ways. The first is the gate control method. When the body is injured, both pain and non-pain impulses are sent to the brain from the nervous system. -
Page 7: Main Operating Components
This system should be used only under proper medical supervision and only as described by this manual. Before using your Select Pain Control system, please read all of the indications, contraindications, warnings, and precautions in the Prescribing Information section (on page 8). -
Page 8: Prescribing Information
Read, understand, and practice the precautionary and operating instructions found in this manual. Know the limitations and hazards associated with the Select Pain Control system. Observe any and all precautionary and operational decals placed on the unit. Indications TENS devices are indicated for: •... -
Page 9: Warnings
Uncomfortable stimulation – If the stimulation levels are uncomfortable or become uncomfortable, reduce the intensity to a comfortable level. Contact your clinician if this does not resolve the problem or if the problem persists. Select User’s Manual... - Page 10 Safety – The safety and efficacy of the Select system depends on the proper use and handling of the device and accessories. If used improperly, the Select system has a potentially hazardous electrical output. It must be used only as prescribed. Electrode or lead wire burns may result from misuse.
-
Page 11: Precautions
An electrode active area of no less than 1.227 in 2 (7.917 cm 2 ) is recommended for NOTE: the Select system. NOTE: The Select system requires the use of Empi lead wires with the custom safety connection as pictured. Select User’s Manual... - Page 12 50 and 106 kPa, and relative humidity between 10% - 90%. Batteries – Remove the Select system batteries if the unit is to be unused for an extended period of time, i.e. 2 weeks or more. Transportation of batteries –...
-
Page 13: Dangers
– Only the Empi battery charger should be used with Empi rechargeable batteries. Do not attempt to recharge any battery other than the rechargeable battery supplied by Empi for this device. Attempts to charge alkaline or other non-rechargeable batteries could cause the battery to overheat, burst, or be permanently damaged. -
Page 14: Quick Reference
Quick Reference When you are very familiar with the operation of the Select system, use the following steps as a quick reference to operate the device. For more information, refer to the Operation section in this manual. Starting a Therapy Session 1. -
Page 15: Ending A Therapy Session
(or gel) from your skin. 6. Use skin cream or lotion to moisturize your skin after removing the electrodes. 7. Remove the batteries from the device prior to storing. 8. Store the components in the carrying case. Select User’s Manual... -
Page 16: System Components
System Components Device The Select system is a battery-operated electrical stimulator. The device has five Quick Select programs and four program options that can be customized by a clinician. Program Option Control Session Parameter Control Device Front View Intensity Intensity... -

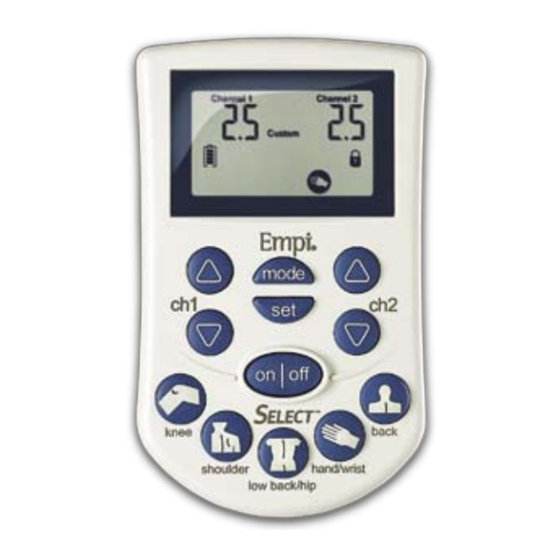

Page 17: Device Physical Features
• – displays for a few seconds when the Select is turned on. Data • – denotes that the unit is in Data Retrieval Mode or in Quick Select Button Reset Mode. Rate • – when adjusting the pulses per second, “Rate” will be displayed next to the value, along with “pps”. -
Page 18: Operating Buttons
(Knee, Shoulder, Low Back/Hip, Hand/Wrist, and Back). Mode • – used to select one of four program options (Continuous, Burst, SMP and Modulation). • – used to change the therapy session parameters (Rate, Cycle Time, and/or Span Percentage) based on which program option is selected. -
Page 19: On/Off Indicator Lights
Carrying Case A carrying case is included to help protect the Select system and keep it clean. Store your device and its components in the case when they are not in use. -
Page 20: Lead Wires
There are several types and sizes of electrodes, and each type has different characteristics. The Select usually includes two (2) packs of four (4) 2-inch round or 2-inch square, reusable, self-adhering electrodes, as shown below. Each electrode has a connector for inserting a lead wire pin and an electrical-conductive adhesive pad that attaches to your skin. -
Page 21: Operation
Before operating the Select system, read the previous sections of this manual that describe the system and its features. To gain the maximum benefit from your Select system, carefully follow your clinician’s instructions and use the system for only the specific symptoms detailed by your clinician. -
Page 22: Installing The Batteries
Operation Installing the Batteries The Select operates with two “AA” alkaline (or rechargeable) batteries. Install the batteries before using the Select. In addition, install new batteries whenever the “Low Battery” icon flashes in the LCD display. For information about charging the... -
Page 23: Connecting The Lead Wires To The Electrodes
NOTE: Connect only one lead wire to each electrode. 5. Connect the lead wires to the electrodes before applying the electrodes to the skin. This will reduce the possibility of dislodging the electrodes. Select User’s Manual... -
Page 24: Connecting The Lead Wires To The Device
Do not shave the area immediately before beginning treatment. Wait 24 hours after shaving an area before initiating treatment at that site. Failure to adequately prepare the skin may cause improper adhesion or skin irritation and provide less than ideal stimulation. Select User’s Manual... -
Page 25: Applying The Electrodes To The Skin
Skin is not accustomed to exposure to the electrode gel and adhesives used with the Select. While Empi takes great care and tests all electrode materials to avoid problems, irritation may appear as redness, small pimple-like lesions, or blisters. If your skin develops any persistent redness or irritation, do not continue to apply the electrodes to the same area. -
Page 26: Turning On The Device
Operation Turning On the Device Turn on the Select by pressing the On/Off button. Turning the unit on will default to the last treatment used. The intensity of both channels will be 0.0 when the unit is turned on. Choosing the Treatment Settings Your clinician has recommended one of the program options explained in the Quick Select Feature or Program Option Controls sections in the Operation section of this manual. -
Page 27: Program Option Controls
Pressing the On/Off button will exit the Quick Select button reset screen, or after one (1) minute has passed and no buttons have been pressed, the unit will automatically exit the Quick Select button screen and turn off. - Page 28 1/3 of the cycle time (4 seconds) as the rate modulates down to 2 pulses per second (pps) and then back up again. Quick Select Back, Low Back/Hip Programs – Modulation Amplitude (MA) In the Modulation Amplitude program, for 0.5 seconds the intensity is at 100% of the set level and for the next 0.5 seconds, the intensity is at the set span percentage (60%) of the...
- Page 29 Rate is selected pseudo-randomly from 8 rates: 2, 10, 20, 40, 60, 80, 100, or 150 pps. Span percentage for pulse duration is selected pseudo-randomly from 7 values between 50% of set pulse duration and the set pulse duration. Each combination is on for the selected cycle time. Select User’s Manual...
-
Page 30: Beginning Treatment
For electrode storage and care, refer to electrode packaging for instructions. NOTE: The Select will automatically shut off when both channels are at a zero intensity for one (1) minute or if the batteries are low. Select User’s Manual... -
Page 31: Using The Timer
2. When this screen is displayed, press the Channel 2 up button to set the number of minutes you want the Select to run. The timer can be set in one-minute increments, up to 60 minutes. To decrease the number of minutes, press the Channel 2 down button until the desired timing for your treatment is reached. -
Page 32: Changing The Batteries
Changing the Batteries The Select device is powered by two (2) “AA” batteries. For best results, use Empi alkaline or rechargeable batteries. The Select device can assess battery condition at start up. -
Page 33: Charging The Batteries
Once this is reached, it is not possible to achieve full capacity. At this point, batteries should be disposed of and replacement ones can be ordered through Empi at 1.800.328.2536. NOTE: Batteries have a natural property to release the stored energy in small amounts (this phenomenon is called ‘self-discharge’). -
Page 34: Maintenance
Dispose the unit in accordance with national, state or local regulations. If needed, ship the used device, postage prepaid, to the Empi Service Center for proper disposal or recycling. Please enclose a note indicating that the item is being returned for disposal or recycling. -
Page 35: Specifications
Environmental Conditions Operating Temperature 50° F to 104° F (10°C to 40°C), RH 30% to 75%, 50kPa to 106kPa Transport and Storage Temperature -40° F to 158° F (-40°C to +70°C), RH 10% to 90%, 50kPa to 106kPa Select User’s Manual... -
Page 36: Program Options And Default Parameters
2 pulses per second (pps) and then back up again. 3 Modulated Amplitude (MA) Rate = 125 pps; Cycle Time = 1s;Span Quick Select Low Back/Hip Program Percentage = 60%; amplitude modulation is done through pulse duration modulation; 0.5s intensity is at 100% of set level and next 0.5s intensity is at 60% (set span percentage... -
Page 37: Program Options And Adjustable Parameters
Span = 20%-95% in 5% intervals 3 Modulated Amplitude (MA) Intensity = 0-60 in 0.5 intervals Quick Select Low Back/Hip Program Duration = 0-400 µs Rate = 2-150 pps in 5 pps intervals Cycle Time = 1-20s in 1s intervals... -
Page 38: To Select Parameters For Programs
Specifications To Select Parameters for Programs To Initiate Press Set button while device is on in the appropriate program option. Display will show what Program is currently selected. To Toggle Press the Set button again to toggle through the parameters. - Page 39 Output current into AAMI loads at 50% of maximum High Output Intensity setting. Negative phase (undershoot) is nominally constant current. 200 s Figure D. Output voltage across a 1MΩ resistive load at 50% of maximum High Output Intensity setting. Select User’s Manual...
-
Page 40: Electromagnetic Compatibility (Emc) Tables
Specifications Guidance and manufacturer’s declaration – electromagnetic emissions The Empi Select is intended for use in the electromagnetic environment specified below. The customer or the user of the Empi Select should assure that it is used in such an environment. - Page 41 Specifications Guidance and manufacturer’s declaration – electromagnetic immunity The Empi Select is intended for use in the electromagnetic environment specified below. The customer or the user of the Empi Select should assure that it is used in such an environment.
- Page 42 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Empi Select is used exceeds the applicable RF compliance level above, the Empi Select should be observed to verify normal operation.
- Page 43 Recommended separation distances between portable and mobile RF communications equipment and the Empi Select The Empi Select is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Empi Select can help prevent electromagnetic interference by...
-
Page 44: Troubleshooting
2 inches apart. Damaged or worn Replace. electrodes or lead wires Electrode active area size Replace electrodes with ones that is too small. have an active area no less than 1.227 in 2 (7.917 cm 2 ). Select User’s Manual... - Page 45 1. Make sure the lead wires are *This is a safety feature. completely pushed into the lead See pages 23-25 for operation. wire socket. Electrodes 2. Check lead wire and electrodes to make sure that they are still good. Select User’s Manual...
- Page 46 5. Place the new electrodes on your forearm as shown in the figure below. 6. Turn your device on. 7. Select Continuous Mode. This is a continuous treatment program. The lights on the device should be steady. 8. Slowly increase the intensity until you can feel it. If you do not feel any sensation, lower the intensity to zero and rotate the lead wire 90 degrees.
-
Page 47: Replacement Parts
60 in (150 cm) in cable length, unshielded Battery Charger, AA NiMH Battery, Rechargeable, AA NiMH – 4-pack User Manual 360357 * There are several types and sizes of electrodes that can be used with the Select. Select User’s Manual... -
Page 48: Warranty
A. Empi’s sole obligation in the case of any breach of its warranties set forth in Paragraph IIA above, shall be, at Empi’s option, to repair or replace the Product with a new or factory reconditioned product without charge to Purchaser or to refund the purchase price of the Product. - Page 49 B. This Warranty is voided immediately as to any Product which has been repaired or modified by any person other than authorized employees or agents of Empi or which has been subjected to misuse, abuse, neglect, damage in transit, accident or negligence.
- Page 52 Empi, Inc. 599 Car digan Road St. Paul, Minnesota 55126-4099 USA 1-651-415-9000; 1-800-328-2536 www.empi.com 360357-001, Rev. B. © 2008 Empi 08/08...
