User Information

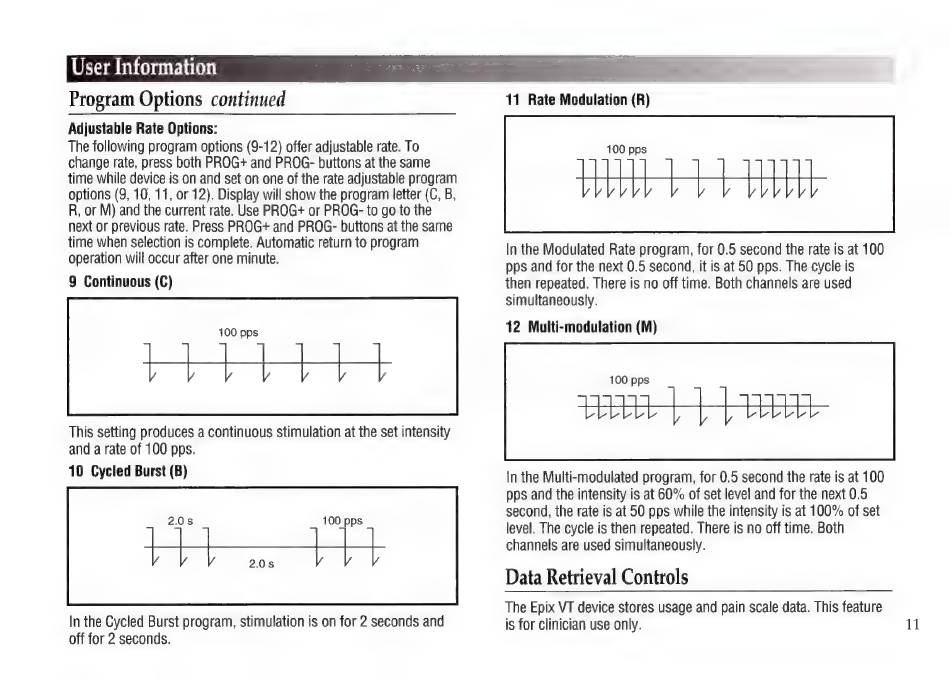

Program Options continued
Adjustable Rate Options:
The following program options (9-12) offer adjustable rate. To
change rate, press both PROG+ and PROG- buttons at the same
time while device is on and set on one of the rate adjustable program
options (9, 10, 11, or 12). Display will show the program letter (C, B,
R, or M) and the current rate. Use PROG+ or PROG- to go to the
next or previous rate. Press PROG+ and PROG- buttons at the same
time when selection is complete. Automatic return to program
operation will occur after one minute.
9 Continuous (C)
100 pps
vere Pe
This setting produces a continuous stimulation at the set intensity
and a rate of 100 pps.
10 Cycled Burst (B)
In the Cycled Burst program, stimulation is on for 2 seconds and
off for 2 seconds.
11 Rate Modulation (R)
100 pps
brbehe+-beb oe
In the Modulated Rate program, for 0.5 second the rate is at 100
pps and for the next 0.5 second, it is at 50 pps. The cycle is
then repeated. There is no off time. Both channels are used
simultaneously.
12 Multi-modulation (M)
100 pps
In the Multi-modulated program, for 0.5 second the rate is at 100
pps and the intensity is at 60% of set level and for the next 0.5
second, the rate is at 50 pps while the intensity is at 100% of set
level. The cycle is then repeated. There is no off time. Both
channels are used simultaneously.
Data Retrieval Controls
The Epix VT device stores usage and pain scale data. This feature
is for clinician use only.
