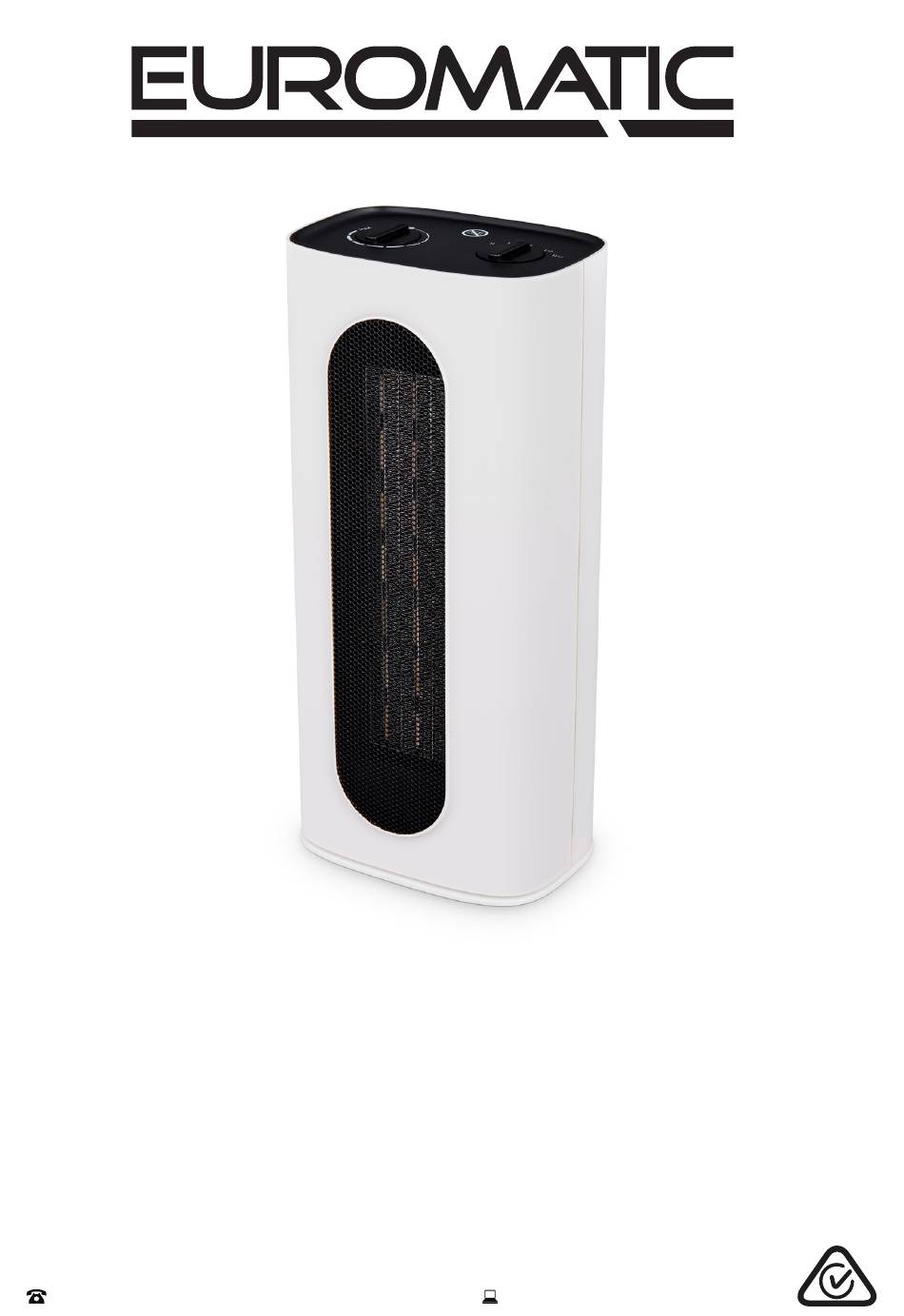

- Page 1 2000W Ceramic Tower Fan Heater with Oscillation USER MANUAL Model Number CH2MTF After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support E209...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Product Overview Getting Started Operating Instructions Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... -
Page 3: Important Safety Instructions
Important Safety Instructions READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 4 Important Safety Instructions (Cont.) • Plug: It is normal for the plug to feel warm; however, a loose fit between the AC outlet and plug may cause overheating and distortion of the plug. Contact a qualified electrician to replace a loose outlet. •...
- Page 5 Important Safety Instructions (Cont.) • Usage restriction: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
-
Page 6: Product Overview

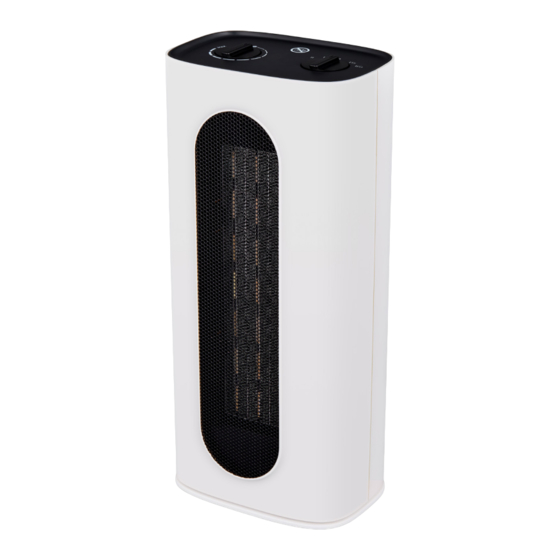

Product Overview Scope of delivery Parts of the heater Control panel Front safety grille Ceramic heating elements (behind grille) Base At the back, not visible here: Power cord and plug NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. -
Page 7: Getting Started
Getting Started Unpacking • Carton: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 8 Getting Started (Cont.) Control panel Controls: Thermostat dial ON/OFF/Power Level dial: • [ 0 ] - Off • [ I ] - Low fan strength • [ II ] - High fan strength • [ I ] - Low fan strength with oscillation •...
-
Page 9: Operating Instructions
Operating Instructions FIRST USE As the appliance and heating coils are supplied with a thin film of grease, there might be a small amount of smoke and odour the first time the appliance is used. This is not harmful to humans and will stop after a short while. - Page 10 Operating Instructions (Cont.) Fan strength • When turning the heat select dial to the [ I ] position, the heater blows warm air, working at a lower fan strength. • When turning the heat select dial to the [ II ] position, the heater blows warm air, working at a higher fan strength.
-
Page 11: Other Useful Information
Other Useful Information Safety features • The heater has a tip-over safety switch, which will turn off the heater if it is knocked over or if it is not in the upright position. Should this occur, stand the heater upright again but take extreme care as it may still be hot. Before restarting the heater, inspect it for damage. - Page 12 Other Useful Information (Cont.) Cleaning and maintenance The heater requires regular cleaning to ensure trouble-free operation. • Before cleaning your heater, switch off the heater and allow it to cool. Disconnect the electricity supply to the appliance. • Use a vacuum cleaner to remove dust and fluff from around the grilles. •...
- Page 13 Other Useful Information (Cont.) Technical specifications Model No CH2MTF Rated Power 2000 W Rated Voltage 220-240 V 50–60 Hz Safety Features Tip-Over Safety Switch Overheat Protection Dimensions 385 (H) x 128 (W) x 175 (D) mm (approx.) Weight 2.1 kg (approx.)
- Page 14 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 15 This page has been left blank intentionally. After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support...
- Page 16 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on (AU) 1300 886 649 or (NZ) 0800 836 761 for advice.
