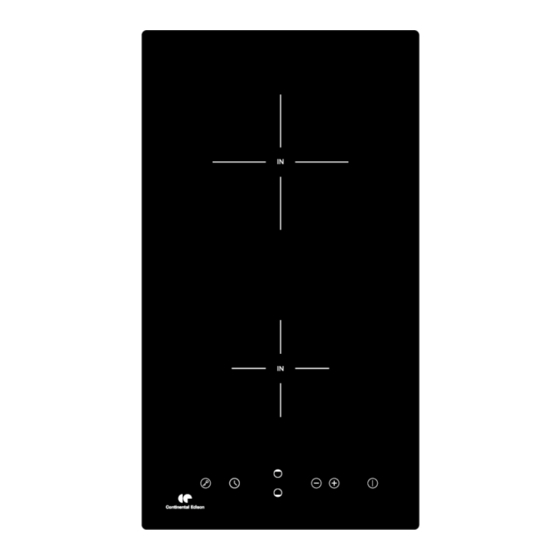

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: MC-ID351...
-
Page 2: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Mnual for future reference. -
Page 3: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 4: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 5: Using Your Induction Hob
Using your Induction Hob To start cooking 1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show “ – “ or “ – – “, indicating that the induction hob has entered the state of standby mode. 2. -
Page 6: When You Have Finished Cooking
If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, • the pan you’re using is not suitable for induction cooking or, • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. -
Page 7: Locking The Controls
4. Beware of hot surfaces H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. -
Page 8: Auto Shutdown Protection
Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: . Power level Default working timer (hour) When the pot is removed, the induction hob can stop heating immediately and... -
Page 9: Setting The Timer To Turn One Cooking Zone Off
Hold the “-“ or “+” control of the timer to decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 00 minute. 4. Touching the”-“ and “+” together, the timer is cancelled, and the”00” will show in the minute display. - Page 10 2. Touch timer control , The minder indicator will start flashing and “10” will show in the timer display. 3. Set the time by touching the”-“ or”+” control of the timer Hint: Touch the “-“ or “+” control of the timer once will decrease or increase by 1 minute.
-
Page 11: Cooking Guidelines
6. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously. Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly you’re using... -
Page 12: Heat Settings
on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be. 5. -
Page 13: Care And Cleaning
Care and Cleaning The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the cooktop to find the settings that best suit you. What? How? Important! Everyday soiling on 1. -
Page 14: Hints And Tips
Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 15: Failure Display And Inspection
The induction hob or a Technical fault. Please note down the error cooking zone has letters and numbers, switch turned itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician. - Page 16 Cooking Hob MC-ID351 Cooking Zones 2 Zones Supply Voltage 220-240V~ 50Hz Installed Electric Power 3500 W Product Size D×W×H(mm) 288X520X56 Building-in Dimensions A×B (mm) 264X495 Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.
- Page 17 in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm. A(mm) B(mm) C(mm) 50 mini 30 mini Air intake Air exit 10 mm Before you install the hob, make sure that •...
-
Page 18: Before Locating The Fixing Brackets
When you have installed the hob, make sure that • the power supply cable is not accessible through cupboard doors or drawers • there is adequate flow of fresh air from outside the cabinetry to the base of the • if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob •... -
Page 19: Connecting The Hob To The Mains Power Supply
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. -
Page 20: Safety Warnings
• The cable must not be bent or compressed. • The cable must be checked regularly and replaced by authorised technicians only. • The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals. •... - Page 21 Operation and maintenance Electrical Shock Hazard • Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician. •...
- Page 22 cooking zones when you remove the pans. • Do not allow children to play with the appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. •...
