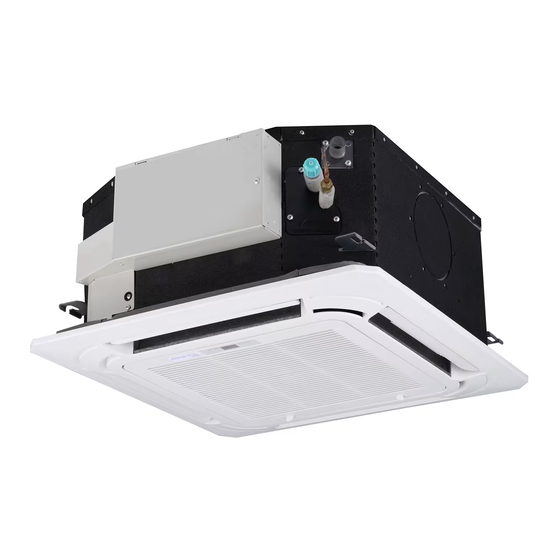

- Page 1 INSTALLATION MANUAL Compact Four-way Cassette Type 600x600 KCIF-28 DN3.0 KCIF-45 DN3.0 KCIF-15 DN3.0 KCIF-36 DN3.0 Thank you very much for purchasing our air conditioner. Before using your air conditioner, please read this manual carefully and keep it for future reference.
- Page 2 Install according to this installation instructions strictly. CONTENTS PAGE If installation is defective, i t will cause water leakage, electrical shock and fire. When installing the unit in a small room, take measures against to keep refrigerant concentration from exceeding allowable safety limits in the event of refrigerant leakage.
-
Page 3: Installation Order
Carry out the specified installation work after considering strong winds, typhoons or earthquakes. Improper installation work may result in the equipment falling and causing accidents. If the refrigerant leaks during installation, ventilate the To install properly, please read this "installation manual" at area immediately. -
Page 4: Cautions On Remote Controller Installation
Please check whether the following fittings are of full scope. If there are some spare fittings, please restore them carefully. Table.4-1 Four-way Four-way NAME SHAPE Cassette Cassette (compact) 1. Expansible hook 2.Installation hook Installation Fittings 3. Installation paper board Tubing & Fittings 4. -
Page 5: Installation Place
3 Please adjust the hexangular nuts on the four installation hooks evenly, to ensure the balance of the body. 5.1 Installation place If the drainpipe is awry, leakage will be caused by the malfunction of the water-level switch. (Refer to Fig.5-1,Fig.5-2,Fig.5-3 for specification.) Adjust the position to ensure the gaps between the body and the four sides of ceiling are even. -
Page 6: Install The Panel
Drain side NOTE All the pictures in this manual are for explanation purpose only. They may be slightly different from the conditioner purchased (depend model).The actual shape shall prevail. 5.3 Install The Panel CAUTION 545(Hook-location) 570(Body) Never put the panel face down on floor or against the (Unit: mm) 647(Panel) wall, or on bulgy objects. - Page 7 Install the panel on the main body with bolt (M5×16) and washer. (Refer to Fig.5-11 ) Adjust the four panel hook screws to keep the panel Check whether the height drop between the indoor unit and horizontal and screw them up to the ceiling evenly. outdoor unit, the length of refrigerant pipe, and the number of the bends meet the following requirements: Regulate the panel in the direction of the arrow in Fig.5-11.
- Page 8 90 °± Use frozen oil R0.4~0.8 Fig.6-1 Fig.7-2 Table.7-1 Bend the pipe with thumb A(mm) Outside diameter Fig.6-2 Φ6.4mm Φ9.5mm 12.4 12.0 Φ12.7mm 15.8 15.4 Make the ends 19.0 18.6 Φ15.9mm straight Fig.6-3 Φ19.1mm 23.3 22.9 Locate The Pipe Fasten the nut ●...
- Page 9 The necessary filling amount of refrigerant Check all the joints with the leak detector or soap water. (See ● Refrigerant volume to be added is calculated according to Fig.7-6 as a reference illustration) outdoor unit installation manual. Be sure to add refrigerant measuring by a scale.
- Page 10 5) When connecting drainpipe, don’t drag the pipe that would pull the main unit. For this, please arrange bearing points every 0.8 to 1.0 meter to avoid pipe be bended (See Fig.8-1 b). Check whether the drainpipe is unhindered 6) When connect a lengthen drainpipe, apply protective tube to New built house should have this test done before paving wrap its indoor parts for ensuring the lengthen part connected the ceiling.
- Page 11 Terminal board diagram Table.9-1 Please refer to the indoor unit wiring diagram for the wiring. Model(W) 1500~5600 1-Phase Phase Power 220-240~50Hz/60Hz NOTE Frequency and volt 208-230~60Hz The air-conditioners can connect with Central Control Circuit breaker/fuse (A) 16/16 Monitor (CCM). Before operation, please wiring correctly Indoor unit power wiring (mm and set system address and network address of indoor 3×2.5...
-
Page 12: Network Address Set
ENC1 Dial switch Horsepower setting Code Capacity (Horsepower) The test operation must be carried out after the entire installation Note: The horse- 1500W/1700W(0.6HP) power has been set has been completed. before leaving the 2200W(0.8HP) factory , which can Please confirm the following points before the test operation: 2800W(1.0HP) only be modified by ●...
