Chapter 1 Introduction of TVGo DVB-T02Q MCE

1.1 Introduction
The TVGo DVB-T02Q MCE can turn your notebook or desktop PC into a personal digital TV
and let you watch high definition free-to-air DVB-T TV on your notebook or desktop PC. The
compact size design makes it easy for you to take it anywhere and real-time record the TV
programs to DVD disc in DVD format. With the remote controller, you can easily to watch TV
and record, also playback high quality digital video programs on your NB or PC and channel
preview. These functions supported by TVGo DVB-T02Q MCE make this a product you don't
want to miss.

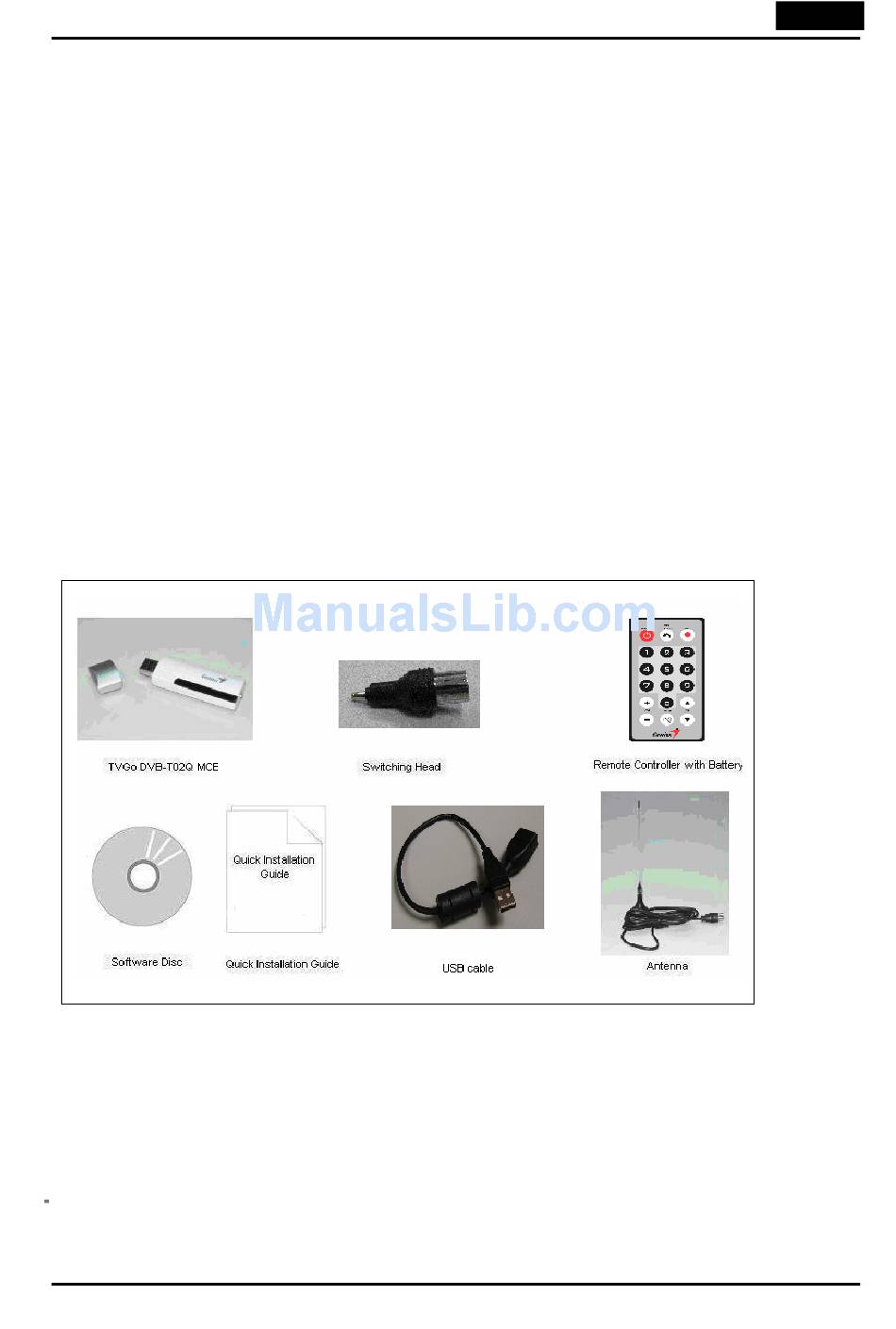

1.2 Package contents:
- TVGo DVB-T02Q MCE x 1
- Remote Controller (includes battery) x 1
- Portable Digital Terrestrial TV Antenna x 1
- Software Disc x 1
- Quick Installation Guide x 1
- Switching Head x 1
-USB cable x1
Notice: We highly recommend you use the outdoor antenna for better signal reception
1.3 Features of TVGo DVB-T02Q MCE
Watch worldwide free-to-air digital HDTV and SDTV TV programs and free-to air
digital radio
Powered by USB2.0 cable (compatible with USB1.1)
Supports time-shifting functions to avoid missing any TV programs
Supports real-time recording and schedule recording to hard disk
Supports snapshot function that lets you capture your favorite images from
programs and turn it into wallpaper for your PC or NB
Supports EPG (Electronic Guide program) and Teletext function
1
English
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the TVGO DVB-T02Q MCE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genius TVGO DVB-T02Q MCE

Summary of Contents for Genius TVGO DVB-T02Q MCE

  • Page 1: Chapter 1 Introduction Of Tvgo Dvb-T02Q Mce

    DVB-T TV on your notebook or desktop PC. The compact size design makes it easy for you to take it anywhere and real-time record the TV programs to DVD disc in DVD format. With the remote controller, you can easily to watch TV and record, also playback high quality digital video programs on your NB or PC and channel preview.

  • Page 2: Chapter 2 Installation

    TVGo DVB-T02Q MCE to your PC or NB. 2.1 Brief introduction on hardware installation 1 : USB Interface for USB port used to connect TV pen driver and PC / NB. 2 : Antenna RF-In to connect to terrestrial antenna.
  • Page 3 The TVGo DVB-T02Q MCE installation includes the application and driver; just follow the sections below to install the software. 1. After the computer and TVGo DVB-T02Q MCE MCE are connected, the following window appears. Click on “Cancel" to install the driver later.
  • Page 4 2. Please put into the software disc into your CD-ROM drive. The following window will pop up automatically. If you do not see this window above, please manually run setup.exe " from the software disc. 3. After entering WINDOWS, select Driver Setup to install driver and application. Then the following window will pop up.
  • Page 5 6. Please select “Next” to continue installing and choose the desired file folder to install and go to next step. 7. Please choose “Next” to continue installing according to the instruction, or “Back”to return to the last step and choose the suitable file folder to install. Or choose “Cancel” to stop the installation.
  • Page 6 English English 8. The setup is checking the USB device. You need to plug TVGo DVB-T02Q MCE to continue or cancel the installation. 9. The setup program will copy the data and install DirectX 9.0c automatically.
  • Page 7 English 10. After the installation is done, click on “Yes, I want to restart my computer now.”. Then click and select “Finish”to complete the installation procedure.

  • Page 8: Chapter 3 Introduction Of The Software

    English Chapter 3 Introduction of the software It offers the strong and exhaustive function for one high-level digital TV player. Through it, you can enjoy exciting high-resolution, high-quality video and audio TV play back. 3.1 Control panel Control Panel without Numerical Keypad...
  • Page 9 This icon represents mute - Live TV recording: Record the TV program you are watching now. Be careful! You can record to DVD disc directly if you have a DVD writer. Please check the Q&A for the list of the DVD writer support.
  • Page 10 English Frame capture: Capture a picture from the video playback or a live TV program。 You can click “Capture” again to capture another frames.
  • Page 11 English You can select frames by using left button of mouse to do individual selection. Then, you can delete the selected frames by click “Delete”. Or, you can use “Delete All” to delete all the frames you capture. Once you finish the selection, you can click “Save” to save the capture frames or “Close”...
  • Page 12 Note: It depends on whether the TV channel offers this function or not. You can choose the different program by pulling down the sub-menu and do the selection. You can also check the programs you like to add into schedule recording.
  • Page 13 English After click the “Schedule Record”, system will pop up a message if the jobs insert successfully. Timeshift You can use this function if you are interrupted while you are watching TV, you can reverse the TV to the point where you were interrupted。...
  • Page 14 Note: This depends on whether the TV channel offers this information or not. You can click PageUp or PageDown to go up or down one page. Just click Pause to hold the current page. You can also click Home to jump to page 100 or fill the page number into GoTo field to select page.
  • Page 15 English English 3.4 Functions supported by mouse Click the right button of the mouse and you will see the following menu pop up. Function Function description Channel up TV channel up Channel down TV channel down Channel return Play the previous TV channel...

  • Page 16: Chapter 4 System Configuration

    1. The digital TV has a characteristic called cliff effect. If the receiving free-to-air terrestrial signal is bad, you will not see the video image at all. This is unlike analog TV, for analog TV you can still watch TV in unclear video image. If the signal in your area is bad, you need to have an external outdoor antenna.
  • Page 17 4.1.2 Scan channels by single frequency 1. Please click and select "Bandwidth". 2. You can select the bandwidth you want to scan. (" 6 ", or " 7 ", or " 8 ", or " 7, 8 ", or " 6, 7, 8 ") 3.
  • Page 18 4.1.3 Scan channels by frequency range 1. Please click and select "Bandwidth". 2. You can select the bandwidth you want to scan. (" 6 ", or " 7 ", or " 8 ", or " 7, 8 ", or " 6, 7, 8 ") 3.
  • Page 19 If you need to leave temporarily for some reason when watching a TV program, you can use this function to store the program at this moment and playback when you return.
  • Page 20 English 4.4 Configuration of schedule recording To configure the schedule recording, please select and click the icon on the control panel . The following setting page will pop up. Basic Setting Job Title: You can type in a name for the video recording Action After / Recording: There are three actions you can select after the schedule recording.
  • Page 21 Starting Time: You can choose to make an appointment to make video recording by filling in the starting time here. Note: You must type in a time, which is ahead more than one minute from the present time. Recording Period: You can type in the recording length here.
  • Page 22 After you click "Add" button, you can set a new schedule-recording job. Once all the data is filled in correctly, you can click the “Save” button. The following window will pop up to show you the status of these jobs.
  • Page 23 English 1. Please do not check the box of “Prompt for password when the computer resumes from standby” under the “Advanced” section from “Power Options Properties”. English 2. Please check the Enable hibernation box under the Hibernate section from Power Options Properties.

  • Page 24: Chapter 5 Uninstall Tvgo Dvb-T02Q Mce

    English Chapter 5 Uninstall TVGo DVB-T02Q MCE 1. Please put the software disc of TVGo DVB-T02Q MCE into your CD-ROM drive. You will see this window appear automatically after you put in the disc. elect “Driver If you do not see this window, please find " setup.exe " from driver.
  • Page 25 4. After the uninstallation is done, please select “Yes, I want to restart my computer now.” Then click “Finish” to complete the uninstallation procedure. 5. You can also use “Uninstall” utility from “TVGo DVB-T02Q MCE” program group to do the uninstallation.
  • Page 26 2. Windows is unable to find TVGo DVB-T02Q MCE hardware. a. Make sure the connection for TVGo DVB-T02Q MCE and USB cable to the PC is correct. b. Wait for system to look for the hardware when you plug the TVGo DVB-T02Q MCE into your system.
  • Page 27 6. When I watch TV, the screen shows nothing or an error message. a. This could be because the signal is too weak in intensity, it is unable to display the TV program correctly. Please change the antenna location or use an external antenna.
  • Page 28 13. How can I find out the terrestrial TV signal coverage in the area I live? a. If you want to know whether you can watch free-to-air terrestrial digital TV in your location, you can go to the web site below to get the information.
