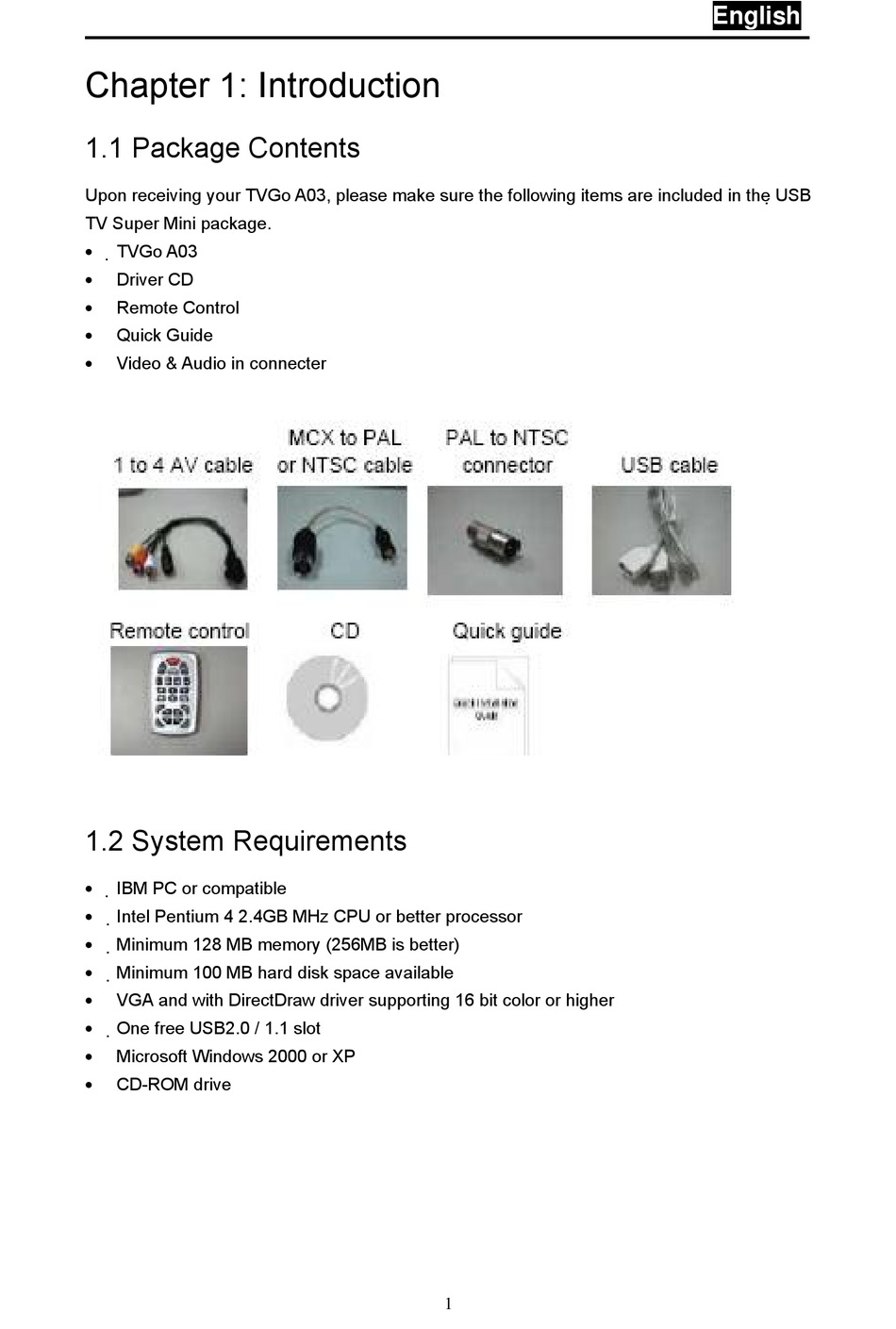

Chapter 1: Introduction
1.1 Package Contents
Upon receiving your TVGo A03, please make sure the following items are included in the U SB
TV Super Mini package.
•
T VGo A03
•
Driver CD
•
Remote Control
•
Quick Guide
•
Video & Audio in connecter
1.2 System Requirements
•
I BM PC or compatible
•
I ntel Pentium 4 2.4GB MHz CPU or better processor
•
M inimum 128 MB memory (256MB is better)
•
M inimum 100 MB hard disk space available
•
VGA and with DirectDraw driver supporting 16 bit color or higher
•
O ne free USB2.0 / 1.1 slot
•
Microsoft Windows 2000 or XP
•
CD-ROM drive
1
English
Advertisement
Table of Contents
Related Manuals for Genius TVGO A03
Summary of Contents for Genius TVGO A03
-
Page 1: Chapter 1: Introduction
English Chapter 1: Introduction 1.1 Package Contents Upon receiving your TVGo A03, please make sure the following items are included in the U SB TV Super Mini package. • T VGo A03 • Driver CD • Remote Control •... -
Page 2: Chapter 2: Getting Started
English Chapter 2: Getting Started 2.1 Connect USB TV Super Mini To install the TVGo A03 into your computer, follow the steps below: 1. Connect the antenna cable to the connector. 2. Connect the Device to PC USB Hub. 2.2 Device Driver Installation for Windows XP 1. - Page 3 English 3. Click “Next” to start installation. 4. Select “Search for a suitable driver for my device [recommended]” and click “Next”. 5. Select “CD-ROM driver” and click “Next” button to search driver.
- Page 4 English 6. Click “Next” to continue the installation. 7. Click “Finish” to complete the driver install. Check your driver ”TVGo A03” from Device Manager after installation. TVGo A03 2.3 Install utility software. 1. Click “Next” button to start installing.
- Page 5 English 2. Please read the License Agreement and click “Next” to begin copying files. 3. Click “Next” or choose setup folder for installation. 4. Then click “Finish” to complete the installation of TVGo A03 and “Start”, “Shut Down”, “Restart” to restart...
- Page 6 English...
-
Page 7: Chapter 3: Launch The Software
3.1 Running for first time. Click Start on Windows Taskbar, and then select Programs\TVGo A03 1. Click Start on Windows Taskbar, and then select Programs\TVGo A03 2. Click the AP of TVGo A03 3. Then the scanning device will start. - Page 8 English At the first time running, you should complete the setting and channel scanning. 1. Although the TV tuner on TVGo A03 is fixed, you have to set up the country or region right after the first time you launch TVGo A03 2.
-
Page 9: Record Video
4.Volume Control 1.TV wall display 5.Search TV Channel 1. TV wall display: Show 4x4 TV wall on screen 2. Channel List: This is listing all available TV channel. 3. Channel control: Set channel up or down 4. Volume control: Adjust the Volume or mute. -
Page 10: Snapshot Image
MPEG-1, 2,4; AVI, DVD, VCD, HiDVD… 3.4 Snapshot Image Click the “Snapshot” button to capture still image. Click the “Setting” button to setup the image format. TVGo A03 supports BMP and JPEG image format. Please choose your desired format. 3.5 Playback Video Click the “Playback”... - Page 11 To reverse play video Step Forward: To forward play video Slow Backward: To slow reverse play video Slow Forward: To slow forward play video file Play/Pause: Click to play the current video file, click again to pause, click once more to continue play...
-
Page 12: Browse Image
Stop playing current video file Snapshot: Save current video as BMP or JPG image, file is default named as snapshot time and saved into C:\My Pictures folder. You also can open "Snap Setting" option in "Options" dialog, set snapshot save directory, image format, and select rename after snapshot or not, refer to "Playback Setting"... - Page 13 English Skin: To set appearance of image browse window, you can select your favorite panel from the right drop box. Zoom out: To shrink display current image Zoom in: To magnify current image Match Zoom: You can select the matched display mode in the right drop box.
