Safe Fleet HD1Q ASDA Series Quick Installation Manual

Specifications
Power Consumption 1 W (IR off); 2 W (IR on)
Operating Voltage Range 12 VDC ± 10% (powered by recorder)
Operating Temperature Range -4 to 122ºF (-20 to 50ºC)
Resolution Standard Definition Analog
Infrared LED Lamps 12 LEDs (5mm)
Minimum Illumination Color: 0.1 lux (F2.0)
B&W, IR LED on: 0 lux
Enclosure Size Diameter : 3.74" (95 mm)
Height: 2.64" (67 mm)
Enclosure Material Solid aluminum alloy
Dome Impact-resistant polycarbonate, anti-glare, scratch-
resistant hardcoating, UV protected
Camera Pigtail Connector Length 12" (30 cm)
Weight 0.642 lbs (0.29 kg)
Routine Maintenance
Most liquid cleaners or graffiti gel can be used to clean your camera enclosure. Do not use abrasive cleaners that can
scratch the window and reduce visibility of the camera.
Service & Support
If your HD1Q camera is to be returned for service, please contact the Safe Fleet Technical Support team and provide
the part and/or serial number of your unit. Ask for a Return Merchandise Authorization (RMA) #. An RMA # allows the
support team to better track your product when it comes in for service. Please show the RMA # on the outside of the
package. ANY PRODUCT SENT WITHOUT AN RMA # MAY BE REFUSED.
Technical Support Documentation and Warranty
• Email: PTsupport@safefleet.net Additional copies of this guide, along with other documentation and product
warranty, are available on the SafeFleet Community Web site:
• Phone: 1.877.899.7366
https://community.safefleet.net
HD1QxxASDA & HD1QxxAISDA Series Dome Cameras
Product Overview
This quick install guide applies to the following camera models: *
• HD1QxxASDA, HD1QxxAISDA
For exact model ID: replace "xx" with desired lens size
(02=2.6mm, 04=3.6mm).
* Models without an "I" ship with IR disabled.
Models with an "I" ship with IR enabled.

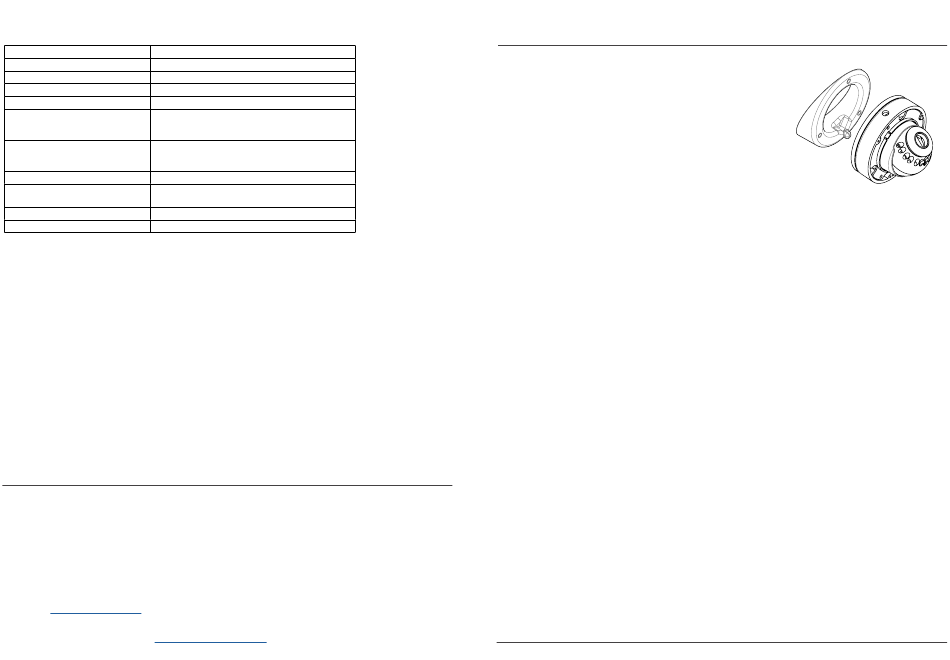

The HD1Q camera can be installed with or without the supplied angle mount shim.
This guide covers both installation types, and provides specific instructions where required.
Installation Kit Contents
• 1 HD1Q camera, including dome lid and
gasket
• 1 Security key (part # 645-1003)
• 3 x No. 10 screws, with washers *
(1" length, part # 600-1021)
• 1 Drilling template (Part # 700-1090) *
• 7 x rubber washers (includes one spare
washer), pre-installed on screws
(part # 610-1001)
* Not used for shim installations
Step 1: Choose Camera Location
When choosing a camera mounting location, consider the desired field of view, area of focus, and camera/shim assembly
orientation. For shim installations, generally the shallow side of the shim should point in the direction of the camera lens.
1. Determine the location for mounting the camera.
a. Choose a solid surface to minimize vibration
b. Choose a location away from access panels, hatches, or doors which may block the camera view
c. Choose a location away from forced-air outlets, as this could affect audio performance.
d. Choose a location away from heat sources
e. Cameras are usually installed with the cabling running inside the wall panels.
2. Mark the cable (7/8") and screw (5/32") on the panel:
For shim installations: use the angle mount shim as a guide.
•
• For standard installations: use the supplied drilling template.
3. Use a step-bit to drill the cable hole.
Quick Installation Guide
• 1 shim angle mount (part # 665-1017) **
• 2 x No. 10 screws **
(2" length, part # 600-1017)
• 1 x No. 10 screw **
(1.25" length, part # 600-1018)
** For shim installations only
© Safe Fleet | 2023 | All rights reserved | Part #: 700-1308 R1
