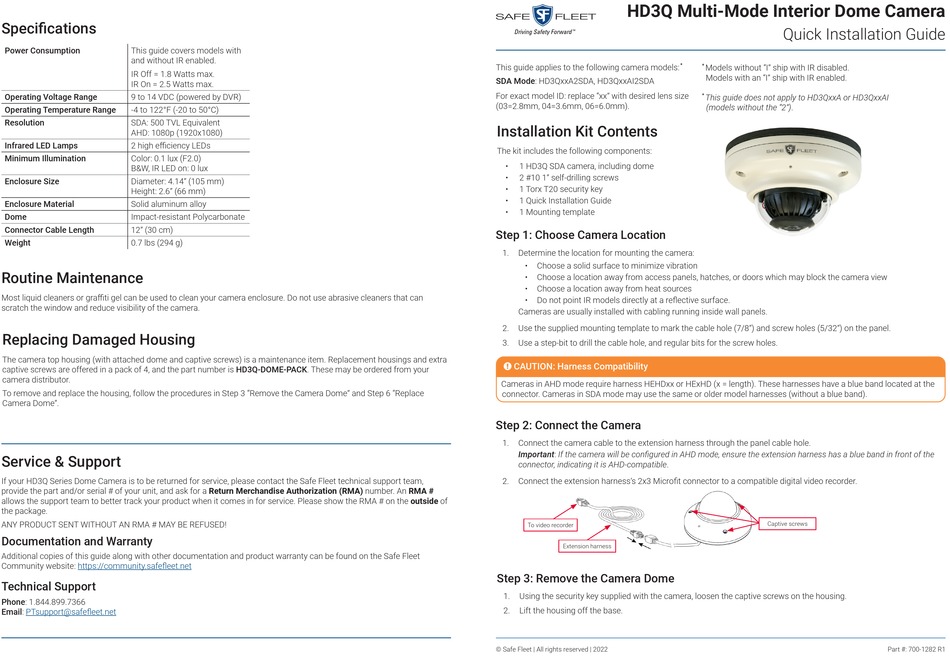

Safe Fleet HD3Q A2SDA Series Quick Installation Manual

Specifications
Power Consumption This guide covers models with
and without IR enabled.
IR Off = 1.8 Watts max.
IR On = 2.5 Watts max.
Operating Voltage Range 9 to 14 VDC (powered by DVR)
Operating Temperature Range -4 to 122°F (-20 to 50°C)
Resolution SDA: 500 TVL Equivalent
AHD: 1080p (1920x1080)
Infrared LED Lamps 2 high efficiency LEDs
Minimum Illumination Color: 0.1 lux (F2.0)
B&W, IR LED on: 0 lux
Enclosure Size Diameter: 4.14" (105 mm)
Height: 2.6" (66 mm)
Enclosure Material Solid aluminum alloy
Dome Impact-resistant Polycarbonate
Connector Cable Length 12" (30 cm)
Weight 0.7 lbs (294 g)
Routine Maintenance
Most liquid cleaners or graffiti gel can be used to clean your camera enclosure. Do not use abrasive cleaners that can
scratch the window and reduce visibility of the camera.
Replacing Damaged Housing
The camera top housing (with attached dome and captive screws) is a maintenance item. Replacement housings and extra
captive screws are offered in a pack of 4, and the part number is HD3Q-DOME-PACK. These may be ordered from your
camera distributor.
To remove and replace the housing, follow the procedures in Step 3 "Remove the Camera Dome" and Step 6 "Replace
Camera Dome".
Service & Support
If your HD3Q Series Dome Camera is to be returned for service, please contact the Safe Fleet technical support team,
provide the part and/or serial # of your unit, and ask for a Return Merchandise Authorization (RMA) number. An RMA #
allows the support team to better track your product when it comes in for service. Please show the RMA # on the outside of
the package.
ANY PRODUCT SENT WITHOUT AN RMA # MAY BE REFUSED!
Documentation and Warranty
Additional copies of this guide along with other documentation and product warranty can be found on the Safe Fleet
Community website: https://community.safefleet.net
Technical Support
Phone: 1.844.899.7366
Email: PTsupport@safefleet.net
HD3Q Multi-Mode
This guide applies to the following camera models:
SDA Mode: HD3QxxA2SDA, HD3QxxAI2SDA
For exact model ID: replace "xx" with desired lens size
(03=2.8mm, 04=3.6mm, 06=6.0mm).
Installation Kit Contents
The kit includes the following components:
• 1 HD3Q SDA camera, including dome
• 2 #10 1" self-drilling screws
• 1 Torx T20 security key
• 1 Quick Installation Guide
• 1 Mounting template
Step 1: Choose Camera Location
1. Determine the location for mounting the camera:
• Choose a solid surface to minimize vibration
• Choose a location away from access panels, hatches, or doors which may block the camera view
• Choose a location away from heat sources
• Do not point IR models directly at a reflective surface.
Cameras are usually installed with cabling running inside wall panels.
2. Use the supplied mounting template to mark the cable hole (7/8") and screw holes (5/32") on the panel.
3. Use a step-bit to drill the cable hole, and regular bits for the screw holes.
 CAUTION: Harness Compatibility
Cameras in AHD mode require harness HEHDxx or HExHD (x = length). These harnesses have a blue band located at the
connector. Cameras in SDA mode may use the same or older model harnesses (without a blue band).
Step 2: Connect the Camera
1. Connect the camera cable to the extension harness through the panel cable hole.
Important: If the camera will be configured in AHD mode, ensure the extension harness has a blue band in front of the
connector, indicating it is AHD-compatible.
2. Connect the extension harness's 2x3 Microfit connector to a compatible digital video recorder.
To video recorder
Extension harness
Step 3: Remove the Camera Dome
1. Using the security key supplied with the camera, loosen the captive screws on the housing.
2. Lift the housing off the base.
© Safe Fleet | All rights reserved | 2022

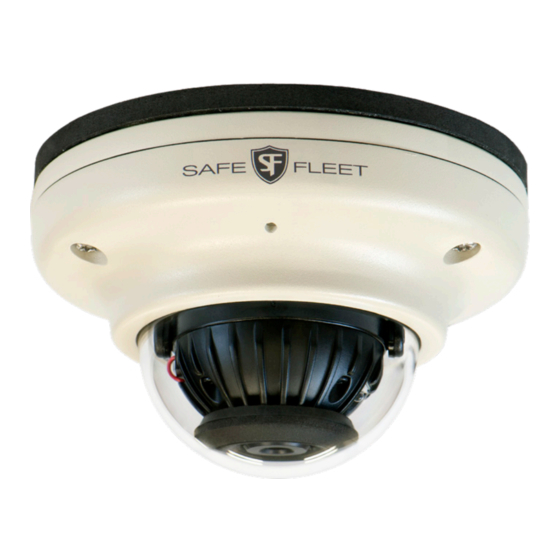

Interior Dome Camera
Quick Installation Guide
*
* Models without "I" ship with IR disabled.
Models with an "I" ship with IR enabled.
* This guide does not apply to HD3QxxA or HD3QxxAI
(models without the "2").
Captive screws
Part #: 700-1282 R1
