Safe Fleet HD3Q Quick Installation Manual

Specifications

Power Consumption Max. 2.5 W (IR on)
Operating Voltage Range 9 to 14 VDC (powered by DVR)
Operating Temperature Range -4 to 122°F (-20 to 50°C)
Resolution 1080p
Infrared LED Lamps 2 high efficiency LEDs
Minimum Illumination Color: 0.1 lux (F2.0)
B&W, IR LED on: 0 lux
Enclosure Size Diameter: 4.14" (105 mm)
Height: 2.6" (66 mm)
Enclosure Material Solid aluminum alloy
Dome Polycarbonate
Connector Cable Length 12" (30 cm)
Weight 0.7 lbs (294 g)

Routine Maintenance

Most liquid cleaners or graffiti gel can be used to clean your camera enclosure. Do not use
abrasive cleaners that can scratch the window and reduce visibility of the camera.

Replacing Damaged Housing

If the camera housing or dome is damaged or scratched, order a replacement housing from your
camera distributor.
To remove and replace the housing, follow the procedures in Step 3 "Open the Camera" and
Step 6 "Replace Camera Dome".
Service
If your HD3Q Series Dome Camera is to be returned for service, please call toll free
1.877.630.7366, or 1.844.899.7366, and provide the model and/or serial# of your unit. Ask for
a Return Merchandise Authorization (RMA) number. An RMA# allows the Service Technicians to
better track your product when it comes in for service. Please show the RMA# on the outside of
the package. ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED.
Technical Support Documentation
Email: service@seon.com Additional copies of this guide, along with other supporting docu-
Phone: 1.877.630.7366 mentation can be found on the SafeFleet Community:
https://community.seon.com/documents/

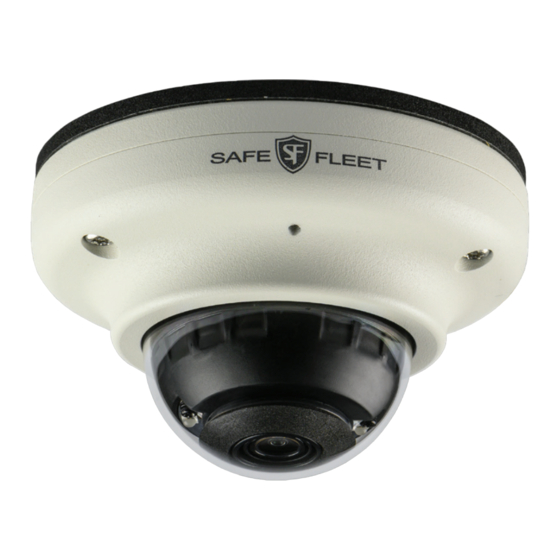

HD3Q Dome Camera Quick Installation Guide
This guide applies to the following camera models:
HD3Q03A, HD3Q04A, HD3Q06A
The HD3Q camera with IR is designed for interior use only.

Installation Kit Contents

The kit includes the following components:
• 1 HD3Q camera, including dome
• 2 #10 1" self-drilling screws
• 1 Torx T20 security key
• 1 Quick Installation Guide
• 1 Mounting template
WARNING: Harness Compatibility
This camera requires a special Analog High Definition (AHD) harness - as indicated by a blue
band in front of the connectors. Note that a standard harness may appear to work on a small
analog screen, but the image will be significantly degraded during subsequent playback.

Step 1: Choose Camera Location

1. Determine the location for mounting the camera.
• choose a solid surface to minimize vibration
• choose a location away from access panels, hatches, or doors which may block the
camera view
• choose a location away from heat sources
Cameras are usually installed with cabling running inside wall panels.
2. Use the supplied mounting template to mark the cable hole (7/8") and screw holes (5/32") on
the panel.
3. Use a step-bit to drill the cable hole, and regular bits for the screw holes.

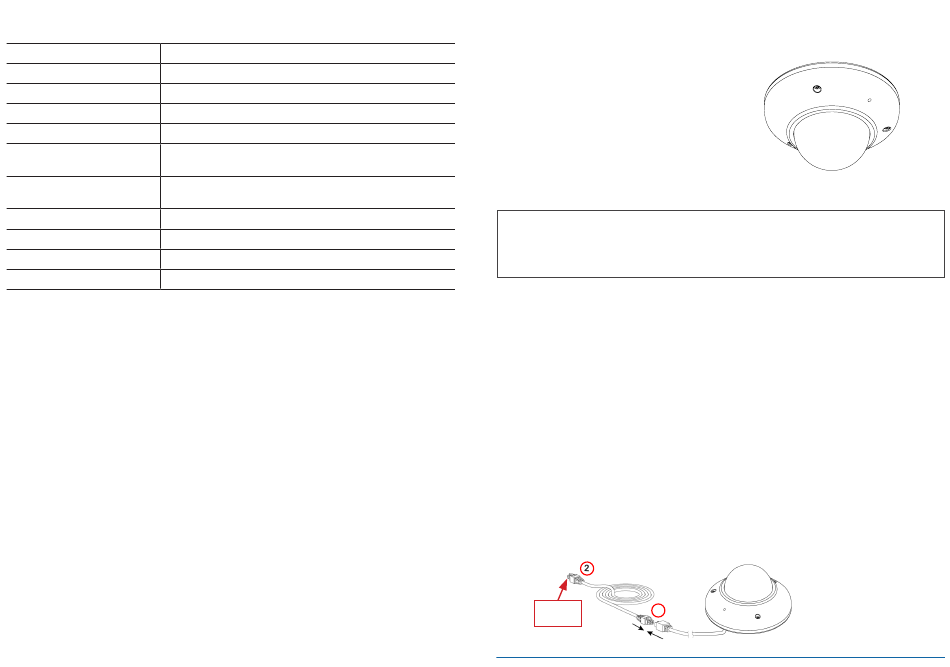

Step 2: Connect the Camera

1. Connect the camera cable to the extension harness through the panel cable hole.
Important: Ensure the extension harness has a blue band in front of the connectors, indicating
it is AHD-compatible.
2. Connect the extension harness's 2x3 Microfit connector to a compatible digital video
recorder.
1
To video
recorder
Copyright © Safe Fleet April, 2018 | All rights reserved | Part #: 700-1121 R1
