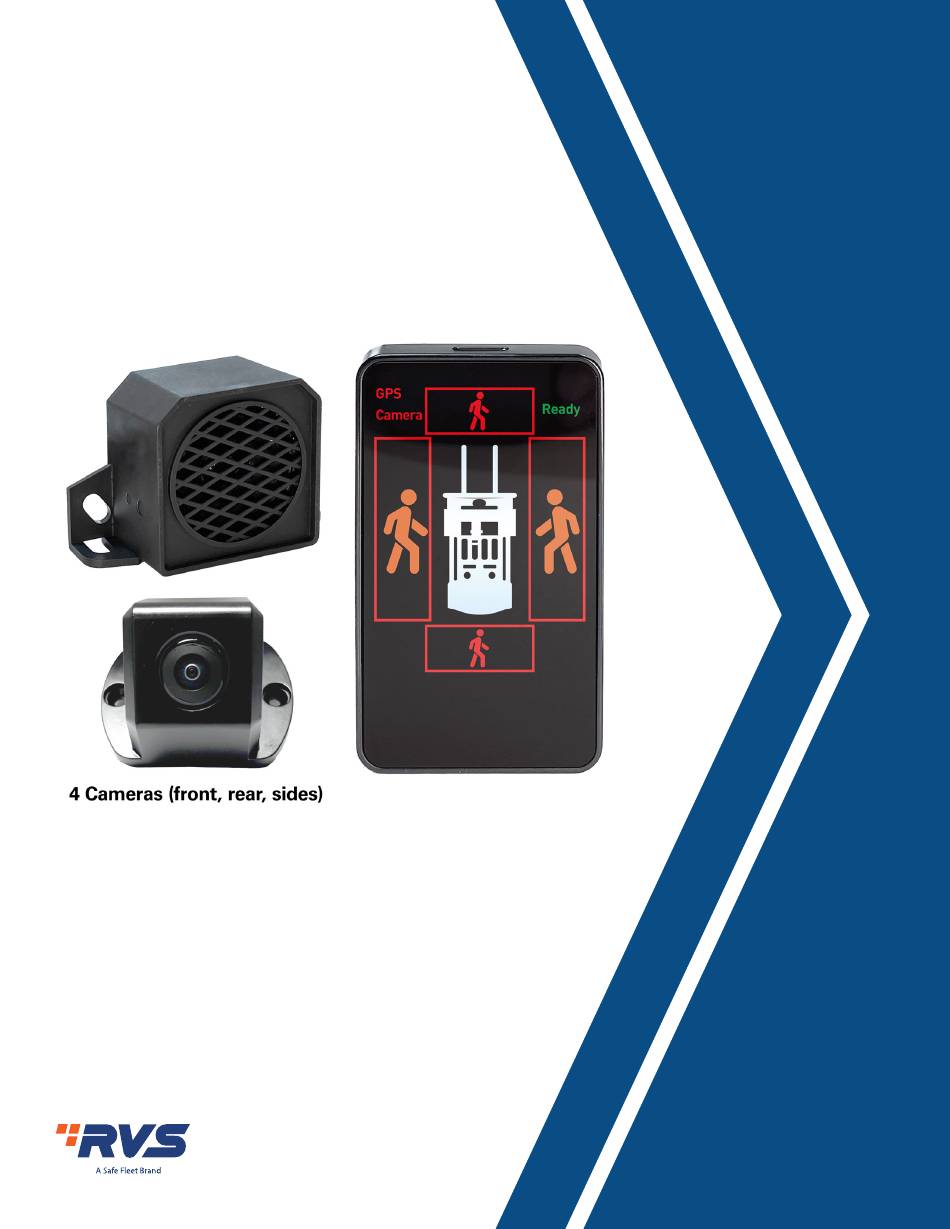

- Page 1 Industrial Pedestrian Detection AI Camera System FL-360Z1 Instruction Manual © Rear View Safety 2024...
-
Page 2: Package Content

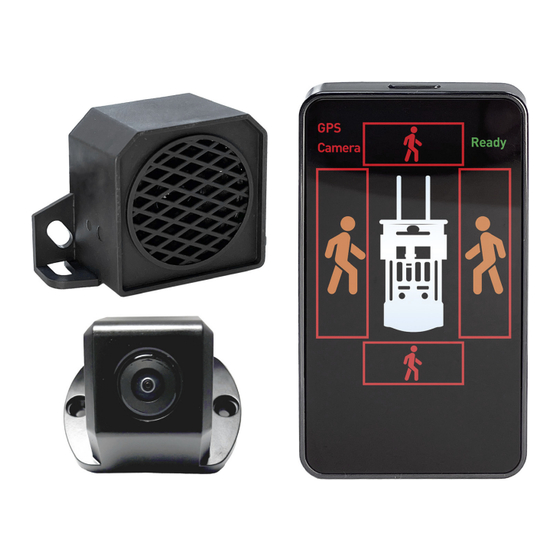

Package Content Ready Camera ECU×1 AI Camera×4 LED DISPLAY×1 External speaker×1 Left A pillar Led×1 Right A pillar Led×1 GPS module with Mute switch×1 gravity sensor×1 Power harness×1 Display Cable×1 Video input×1 Wifi calibration Module ×1 3m Camera 2.7m display Bracket for led display×1 Extension cable×3 extension cable×1... - Page 3 AI Camera Specification Operation Voltage: 12~16V Operation Current: <150mA -20 ~ +70°C Operation Temperature: -30~ +80°C Storage Temperature： Camera Fov: 150 degree Resolution: 1080P 30pfs Detection Range: Front 2 meters (L) * 3 meters (W) Side 9 meters (L) * 2.2 meters (W) Video Output: Mirror and flip 720P/1080P...
-
Page 4: System Layout
System Layout Ready Camera Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com... -
Page 5: System Wiring
System Wiring Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com... -
Page 6: Camera Installation
Camera Installation 4、 D AI Camera Installation Height : 1.5m-2.5m from ground AI Camera Calibration 1. Download App Our calibration app can be used for both Android and iOS devices For Android, please go to Google Play, named: AI Camera Check For IOS, please go to Apple Store, named: DVS Camera Calibration 2. - Page 7 4. Detection area calibration Firstly, set the detection area with the traffic icon and drag the ruler line on the mobile app to overlap with the traffic icon. Click WRITE after overlapping, as shown in the figure. Adjust the camera with the image on the monitor, until the calibration line which is close to the nearside overlaps with or slightly cover the vehicle body.
- Page 8 5.3 S 5. App Function Introduction a) 10 5.1 Version checking: b) Ca Click on the icon in the upper right corner (WiFi module and camera have been connected), which displays three version numbers: camera, c) Ca WIFI module, and APP, as shown in the figure. lens d) Ye then...
- Page 9 5.3 Settings Page a) 1080P/720P Optional b) Camera sensitivity: High/Low Default: Low c) Camera lens face rear, choose mirror, Camera lens facing front or down,choose original d) Yellow Box can be hidden or shown How to hide the yellow box:Choose Mirror, then choose hide, last choose restart camera 5.4 About page（OTA）...
- Page 10 AI camera working logic ① Self Test The system will automatically perform a power on self test of the cameras to check for obstructed views, damaged, or poor connection. The LED display will show a red camera icon and give a voice alert to remind the driver which camera is malfunctioning. After the self test is complete, the LED display will shows will show “Ready”...
- Page 11 SYSTEM WORKING METHOD If there are no pedestrians detected by AI camera, Ready there will be no visual and audio alarm. Front camera will give a warning when speed is between 0~5km/h. Over 5km/h the system will not provide an audible alarm. Ready When vehicles stop (speed is 0), and pedestrians will be detected by front camera: The LED display will...
-
Page 12: System Troubleshooting
When the left turn signal, right turn signal, or reverse trigger are activated, or if the steering wheel is AI c manipulated, the LED display will provide an audible warning if a pedestrian is detected within close proximity. Ready Ready Ready Fals Pedestrian left... - Page 13 AI camera a) Check for poor connections in the wiring malfunction b) Power on again c) Connect the monitor to check if the image display is normal False alarm Clean the stains on the surface of the lens, and the front camera head also needs to clean the stains on the windshield Missed alarm When installing the front camera, avoid the reflection and shadow...
- Page 14 Engineered For Vehicle Safety If you have questions about this product, please contact us at: 800.764.1028 RVS.Sales@safefleet.net www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada...
