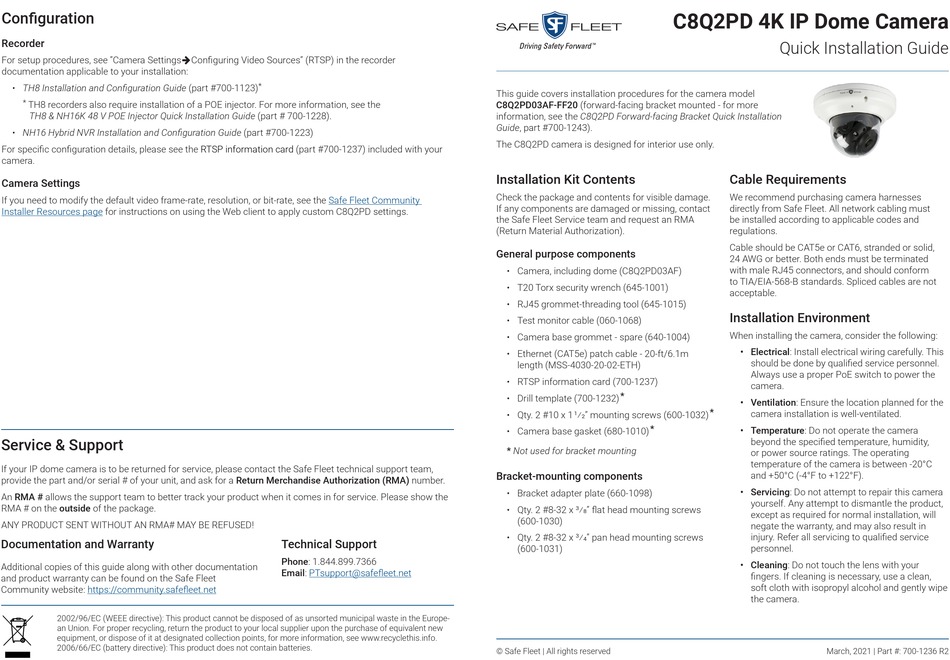

Safe Fleet C8Q2PD Quick Installation Manual

Configuration
Recorder
For setup procedures, see "Camera Settings  Configuring Video Sources" (RTSP) in the recorder
documentation applicable to your installation:
• TH8 Installation and Configuration Guide (part #700-1123)
TH8 recorders also require installation of a POE injector. For more information, see the
*
TH8 & NH16K 48 V POE Injector Quick Installation Guide (part # 700-1228).
• NH16 Hybrid NVR Installation and Configuration Guide (part #700-1223)
For specific configuration details, please see the
camera.
Camera Settings
If you need to modify the default video frame-rate, resolution, or bit-rate,
Installer Resources page for instructions on using the Web client to apply custom C8Q2PD
Service & Support
If your IP dome camera is to be returned for service, please contact the Safe Fleet technical support team,
provide the part and/or serial # of your unit, and ask for a Return Merchandise Authorization (RMA) number.
An RMA # allows the support team to better track your product when it comes in for service. Please show the
RMA # on the outside of the package.
ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED!
Documentation and Warranty
Additional copies of this guide along with other documentation
and product warranty can be found on the Safe Fleet
Community website: https://community.safefleet.net
2002/96/EC (WEEE directive): This product cannot be disposed of as unsorted municipal waste in the Europe-
an Union. For proper recycling, return the product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points, for more information, see www.recyclethis.info.
2006/66/EC (battery directive): This product does not contain batteries.
*
RTSP information card (part #700-1237) included with your
see the Safe Fleet Community
settings.
Technical Support
Phone: 1.844.899.7366
Email: PTsupport@safefleet.net

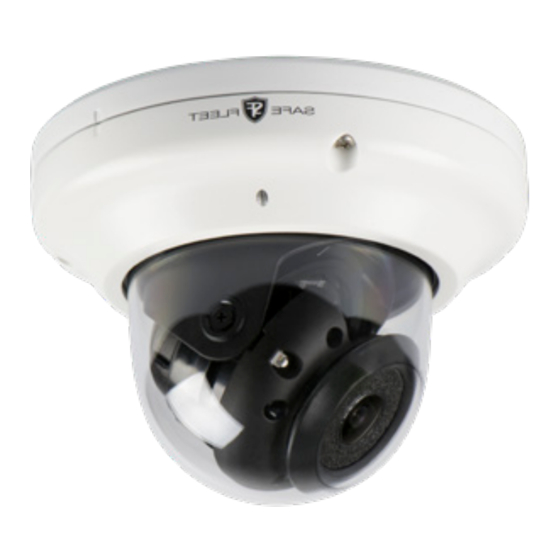

C8Q2PD 4K IP Dome Camera
This guide covers installation procedures for the camera model
C8Q2PD03AF-FF20 (forward-facing bracket mounted - for more
information, see the C8Q2PD Forward-facing Bracket Quick Installation
Guide, part #700-1243).
The C8Q2PD camera is designed for interior use only.
Installation Kit Contents
Check the package and contents for visible damage.
If any components are damaged or missing, contact
the Safe Fleet Service team and request an RMA
(Return Material Authorization).
General purpose components
• Camera, including dome (C8Q2PD03AF)
• T20 Torx security wrench (645-1001)
• RJ45 grommet-threading tool (645-1015)
• Test monitor cable (060-1068)
• Camera base grommet - spare (640-1004)
• Ethernet (CAT5e) patch cable - 20-ft/6.1m
length (MSS-4030-20-02-ETH)
• RTSP information card (700-1237)
• Drill template (700-1232) *
• Qty. 2 #10 x 1 1/2" mounting screws (600-1032) *
• Camera base gasket (680-1010) *
* Not used for bracket mounting
Bracket-mounting components
• Bracket adapter plate (660-1098)
• Qty. 2 #8-32 x 3/8" flat head mounting screws
(600-1030)
• Qty. 2 #8-32 x 3/4" pan head mounting screws
(600-1031)
© Safe Fleet | All rights reserved
Quick Installation Guide
Cable Requirements
We recommend purchasing camera harnesses
directly from Safe Fleet. All network cabling must
be installed according to applicable codes and
regulations.
Cable should be CAT5e or CAT6, stranded or solid,
24 AWG or better. Both ends must be terminated
with male RJ45 connectors, and should conform
to TIA/EIA-568-B standards. Spliced cables are not
acceptable.
Installation Environment
When installing the camera, consider the following:
• Electrical: Install electrical wiring carefully. This
should be done by qualified service personnel.
Always use a proper PoE switch to power the
camera.
• Ventilation: Ensure the location planned for the
camera installation is well-ventilated.
• Temperature: Do not operate the camera
beyond the specified temperature, humidity,
or power source ratings. The operating
temperature of the camera is between -20°C
and +50°C (-4°F to +122°F).
• Servicing: Do not attempt to repair this camera
yourself. Any attempt to dismantle the product,
except as required for normal installation, will
negate the warranty, and may also result in
injury. Refer all servicing to qualified service
personnel.
• Cleaning: Do not touch the lens with your
fingers. If cleaning is necessary, use a clean,
soft cloth with isopropyl alcohol and gently wipe
the camera.
March, 2021 | Part #: 700-1236 R2
